FRONT SEAT CUSHION HEATER(for Power Seat) COMPONENTS

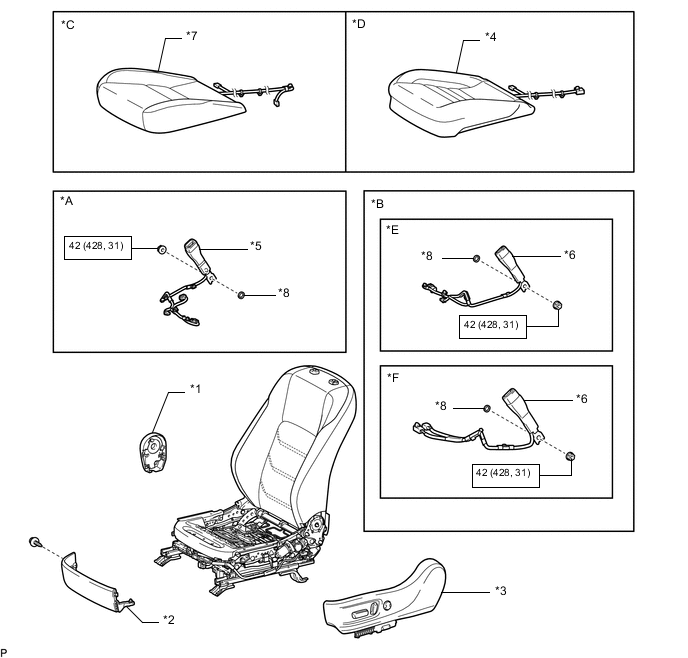

ILLUSTRATION
| *A | for Driver Side | *B | for Front Passenger Side |
| *C | for L-Sport | *D | for F-Sport |
| *E | w/o Occupant Classification System | *F | w/ Occupant Classification System |
| *1 | FRONT INNER SEAT CUSHION SHIELD LH | *2 | FRONT LOWER SEAT CUSHION SHIELD |
| *3 | FRONT SEAT CUSHION SHIELD LH | *4 | FRONT SEAT CUSHION WITH COVER PAD LH |
| *5 | FRONT SEAT INNER BELT ASSEMBLY LH | *6 | FRONT SEAT INNER BELT ASSEMBLY RH |
| *7 | SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD LH | *8 | FRONT SEAT BELT ANCHOR PLATE |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

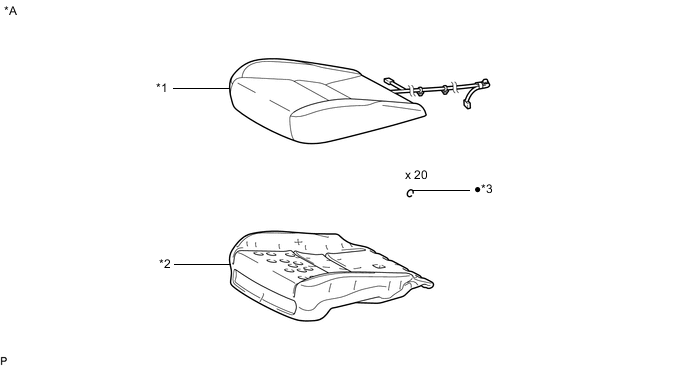

ILLUSTRATION
| *A | for L-Sport | - | - |
| *1 | SEPARATE TYPE FRONT SEAT CUSHION COVER LH | *2 | SEPARATE TYPE FRONT SEAT CUSHION PAD LH |
| *3 | HOG RING | - | - |
| ● | Non-reusable part | - | - |
