REAR SEAT ASSEMBLY(for Manual Seat) REMOVAL

CAUTION / NOTICE / HINT

CAUTION:

Wear protective gloves. Sharp areas on the parts may injure your hands.

PROCEDURE


  1. REMOVE TONNEAU COVER ASSEMBLY

    Click here

  2. REMOVE DECK BOARD ASSEMBLY

    Click here

  3. REMOVE BENCH TYPE REAR SEAT CUSHION ASSEMBLY


    1. B002JK2C01
      *a Rear seat cushion lock hook section
      *b Hook section at rear of rear seat cushion frame

      Lift the front end of the rear seat cushion assembly as shown in the illustration and detach the 2 hooks from the rear seat cushion lock hook section.

      Note

      The rear seat cushion frame will deform if lifted at a position far from the rear seat cushion lock hook.

    2. Detach the 2 hooks of the rear of the rear seat cushion frame.

    3. Pass the rear seat inner with center belt assembly RH through the rubber band of the rear seat cushion assembly.

    4. Remove the bench type rear seat cushion assembly.

      Note

      Be careful not to damage the vehicle body.

  4. REMOVE RECLINING ADJUSTER RELEASE HANDLE LH

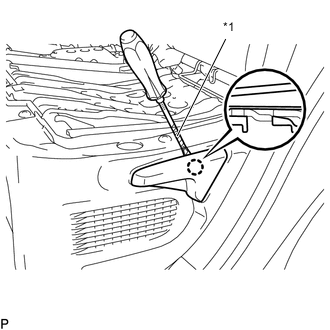

    1. B002KX3C01
      *1 Protective Tape

      Using a screwdriver, detach the claw to remove the reclining adjuster release handle LH.

      Tech Tips

      Tape the screwdriver tip before use.

  5. REMOVE RECLINING ADJUSTER RELEASE HANDLE RH

    Tech Tips

    Use the same procedure described for the LH side.

  6. REMOVE REAR DOOR SCUFF PLATE LH

    Click here

  7. REMOVE REAR DOOR SCUFF PLATE RH

    Click here

  8. REMOVE NO. 3 BATTERY SERVICE COVER BOARD

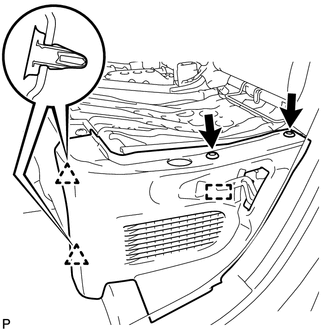

    1. B002KZ7

      Remove the 2 clips.

    2. Detach the 2 clips and guide to remove the No. 3 battery service cover board.

  9. REMOVE NO. 2 BATTERY SERVICE COVER BOARD

    Tech Tips

    Use the same procedure described for the No. 3 battery service cover board.

  10. REMOVE REAR SEATBACK ASSEMBLY LH


    1. Operate the reclining adjuster release handle to fold down the rear seatback assembly LH.

    2. B002JJI

      Using a clip remover, detach the 4 clips.

    3. Return the rear seatback assembly LH to the upright position.

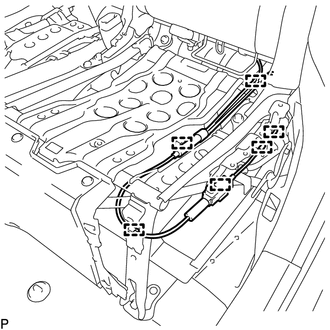

    4. B002IL6

      Detach the 6 clamps to disconnect the rear seat reclining control cable.

    5. B002HCD

      w/ Rear Seat Belt Warning System:


      1. Disconnect the connector.

      2. Detach the 2 clamps to disconnect the wire harness.

    6. B002HNS

      Remove the 4 bolts.

    7. Detach the 2 guides to remove the rear seatback assembly LH.

      Note

      Be careful not to damage the vehicle body.

  11. REMOVE REAR SEATBACK ASSEMBLY RH


    1. Operate the reclining adjuster release handle to fold down the rear seatback assembly RH.

    2. B002HG0

      Using a clip remover, detach the 3 clips.

    3. Return the rear seatback assembly RH to the upright position.

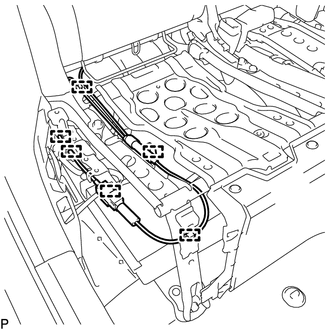

    4. B002HFE

      Detach the 6 clamps to disconnect the rear seat reclining control cable.

    5. B002HR7

      w/ Rear Seat Belt Warning System:


      1. Disconnect the connector.

      2. Detach the 2 clamps to disconnect the wire harness.

    6. B002HNZ

      Remove the 4 bolts.

    7. Detach the 2 guides to remove the rear seatback assembly LH.

      Note

      Be careful not to damage the vehicle body.

  12. REMOVE BATTERY SERVICE HOLE COVER


    1. B002JQG

      Detach the 2 claws and 2 guides to remove the battery service hole cover.

  13. REMOVE BATTERY SERVICE COVER BOARD


    1. B002L02

      Remove the 5 clips.

    2. Detach the 2 guides to remove the battery service cover board.

  14. REMOVE NO. 3 DECK BOARD SUB-ASSEMBLY

    Click here

  15. REMOVE NO. 2 DECK BOARD SUB-ASSEMBLY

    Click here

  16. REMOVE REAR DECK FLOOR BOX (w/ Spare Tire)

    Click here

  17. REMOVE SPARE TIRE (w/ Spare Tire)

    Click here

  18. REMOVE DECK FLOOR BOX LH (w/ Spare Tire)

    Click here

  19. REMOVE DECK FLOOR BOX LH (w/o Spare Tire)

    Click here

  20. REMOVE DECK FLOOR BOX RH (w/ Spare Tire)

    Click here

  21. REMOVE DECK FLOOR BOX RH (w/o Spare Tire)

    Click here

  22. REMOVE NO. 1 TOOL BOX SUB-ASSEMBLY (w/ Spare Tire)

    Click here

  23. REMOVE NO. 1 TOOL BOX SUB-ASSEMBLY (w/o Spare Tire)

    Click here

  24. REMOVE NO. 2 TOOL BOX SUB-ASSEMBLY (w/ Spare Tire)

    Click here

  25. REMOVE NO. 2 TOOL BOX SUB-ASSEMBLY (w/o Spare Tire)

    Click here

  26. REMOVE NO. 1 SEAT LEG ASSEMBLY


    1. B002JBA

      w/ Rear Seat Belt Warning System:

      Detach the 2 claws and 3 clamps to disconnect the wire harness.

    2. B002KNL

      Remove the 8 bolts.

    3. Detach the 2 guides to remove the No. 1 seat leg assembly.
