SEAT HEATER SYSTEM PARTS LOCATION

ILLUSTRATION

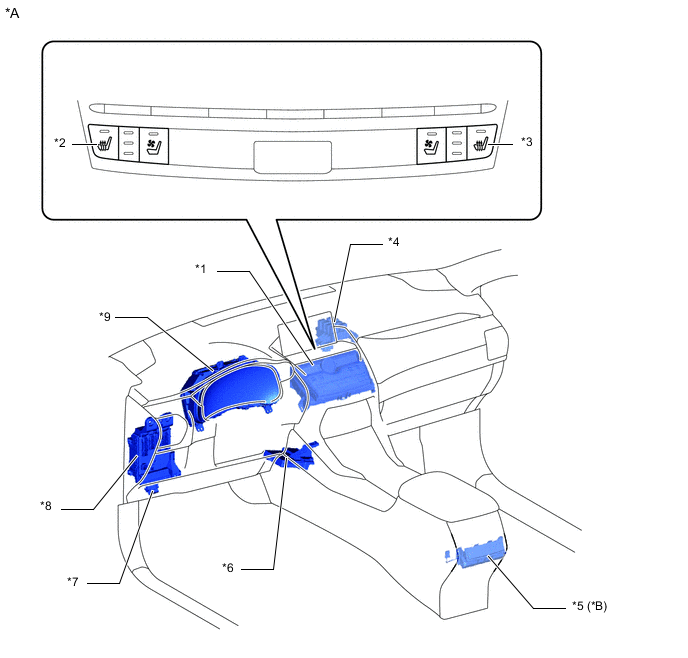

B002I0EC01
*A for LHD *B w/ Rear Seat Heater
*1 AIR CONDITIONING CONTROL ASSEMBLY *2 SEAT HEATER SWITCH (for Driver Side)
*3 SEAT HEATER SWITCH (for Front Passenger Side) *4

NO. 3 RELAY BLOCK


  • - RR S-HTR RELAY (w/ Rear Seat Heater)
*5 REFRESHING SEAT SWITCH *6 AIR CONDITIONING AMPLIFIER ASSEMBLY
*7 DLC3 *8

INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY


  • - S/HTR F/L FUSE

  • - ECU-IG NO.1 FUSE

  • - ECU-IG NO.2 FUSE (w/ Rear Seat Heater)
*9 COMBINATION METER ASSEMBLY - -

ILLUSTRATION

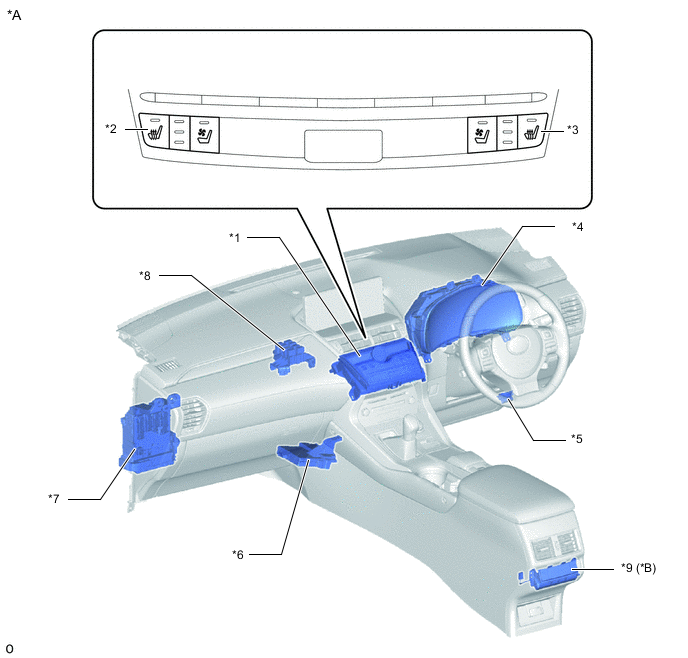

B002HVEC03
*A for RHD *B w/ Rear Seat Heater
*1 AIR CONDITIONING CONTROL ASSEMBLY *2 SEAT HEATER SWITCH (for Front Passenger Side)
*3 SEAT HEATER SWITCH (for Driver Side) *4 COMBINATION METER ASSEMBLY
*5 DLC3 *6 AIR CONDITIONING AMPLIFIER ASSEMBLY
*7

INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY


  • - S/HTR F/L FUSE

  • - ECU-IG NO.1 FUSE

  • - ECU-IG NO.2 FUSE (w/ Rear Seat Heater)

 *8

NO. 3 RELAY BLOCK


  • - RR S-HTR RELAY (w/ Rear Seat Heater)
*9 REFRESHING SEAT SWITCH - -

ILLUSTRATION

B002KP2C03
*A for L-Sport Seat Type *B for F-Sport Seat Type
*1 SEPARATE TYPE FRONT SEAT CUSHION COVER RH *2 SEPARATE TYPE FRONT SEAT CUSHION COVER LH
*3 SEPARATE TYPE FRONT SEATBACK COVER LH *4 SEPARATE TYPE FRONT SEATBACK COVER RH
*5 FRONT SEAT CUSHION PAD WITH COVER RH *6 FRONT SEAT CUSHION PAD WITH COVER LH
*7 FRONT SEATBACK PAD WITH COVER LH *8 FRONT SEATBACK PAD WITH COVER RH
*9 SEAT HEATER CONTROL SUB-ASSEMBLY RH *10 SEAT HEATER CONTROL SUB-ASSEMBLY LH

ILLUSTRATION

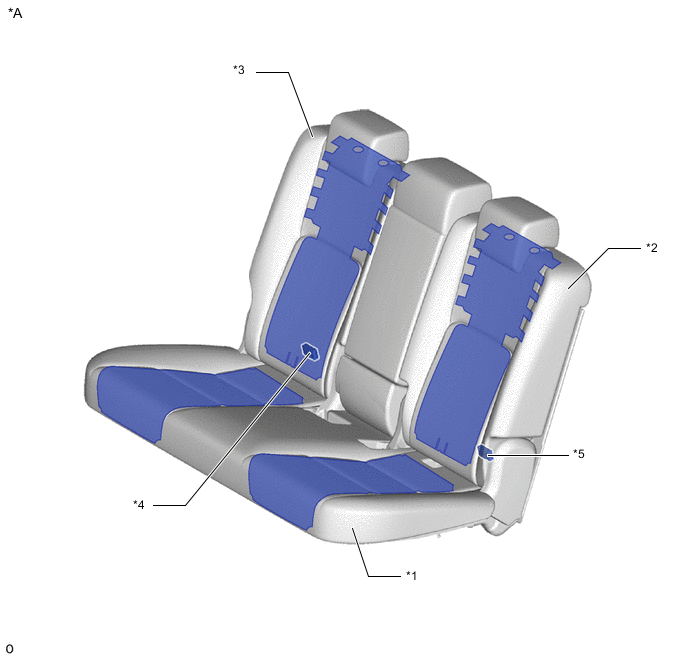

B002JNVC03
*A w/ Rear Power Seat - -
*1 BENCH TYPE SEAT CUSHION COVER *2 SEPARATE TYPE SEATBACK COVER LH
*3 SEPARATE TYPE SEATBACK COVER RH *4 SEAT HEATER CONTROL SUB-ASSEMBLY RH
*5 SEAT HEATER CONTROL SUB-ASSEMBLY LH - -

ILLUSTRATION

B002IPEC03
*1

NO. 2 ENGINE ROOM RELAY BLOCK


  • - S/HTR F/R FUSE

  • - ECU-B NO.2 FUSE

 - -
