SRS SEAT CUSHION AIRBAG ASSEMBLY(for Power Seat) COMPONENTS
ILLUSTRATION
| *A | w/o Spare Tire | - | - |
| *1 | AUXILIARY BATTERY NEGATIVE TERMINAL | *2 | BATTERY SERVICE COVER |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
| *A | w/ Spare Tire | - | - |
| *1 | DECK FLOOR BOX LH | *2 | NO. 3 DECK BOARD SUB-ASSEMBLY |
| *3 | REAR DECK FLOOR BOX | *4 | AUXILIARY BATTERY NEGATIVE TERMINAL |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

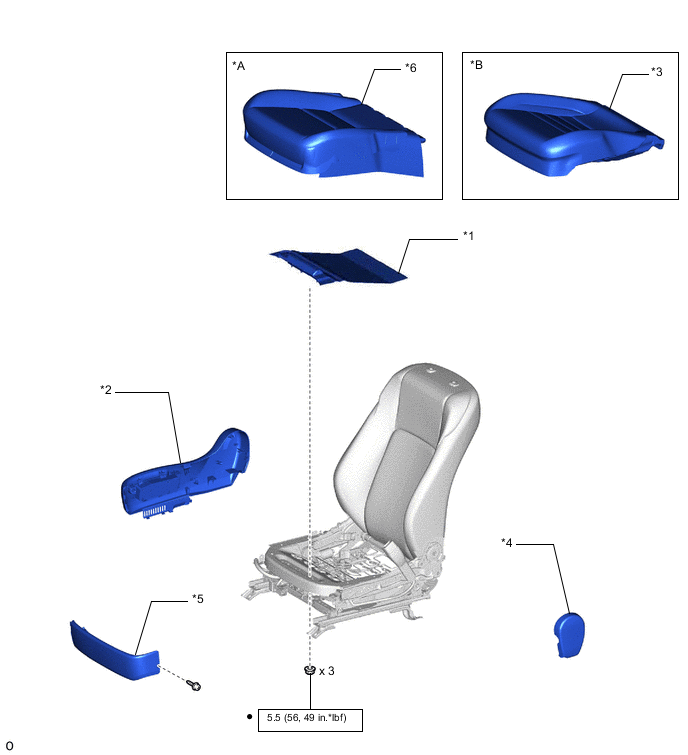

ILLUSTRATION
| *A | for L-Sport | *B | for F-Sport |
| *1 | FRONT SEAT CUSHION AIRBAG ASSEMBLY RH | *2 | FRONT SEAT CUSHION SHIELD RH |
| *3 | FRONT SEAT CUSHION WITH COVER PAD LH | *4 | FRONT SEAT INNER CUSHION SHIELD RH |
| *5 | FRONT SEAT LOWER CUSHION SHIELD | *6 | SEPARATE TYPE SEAT CUSHION COVER WITH PAD |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
