INNER REAR VIEW MIRROR(w/ EC Mirror) REMOVAL

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedure for RHD and LHD vehicles.

  • The procedure listed below is for LHD vehicles.

PROCEDURE


  1. REMOVE INNER REAR VIEW MIRROR STAY HOLDER COVER (w/o Lane Departure Alert System)


    1. B002K5G

      Slide the inner rear view mirror stay holder cover as shown in the illustration.

    2. B002H32

      Detach the 6 claws and remove the inner rear view mirror stay holder cover.

  2. REMOVE INNER REAR VIEW MIRROR ASSEMBLY (w/o Lane Departure Alert System)

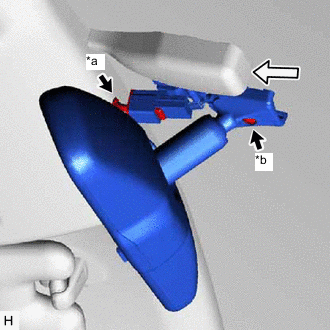

    1. B002HO8C04
      *a Connector
      *b Screw
      B002I10 Remove in this Direction

      for LHD:


      1. Disconnect the connector.

      2. Using a T20 "TORX" socket wrench, remove the screw.

      3. Slide the inner rear view mirror assembly in the direction indicated by the arrow shown in the illustration to remove the inner rear view mirror assembly.

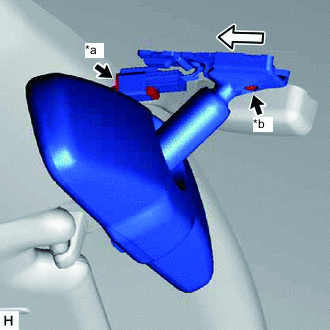

    2. B002IQQC03
      *a Connector
      *b Screw
      B002I10 Remove in this Direction

      for RHD:


      1. Disconnect the connector.

      2. Using a T20 "TORX" socket wrench, remove the screw.

      3. Slide the inner rear view mirror assembly in the direction indicated by the arrow shown in the illustration to remove the inner rear view mirror assembly.

  3. REMOVE NO. 2 FORWARD RECOGNITION COVER (w/ Lane Departure Alert System)

    Click here

  4. REMOVE NO. 1 FORWARD RECOGNITION COVER (w/ Lane Departure Alert System)

    Click here

  5. REMOVE INNER REAR VIEW MIRROR ASSEMBLY (w/ Lane Departure Alert System)

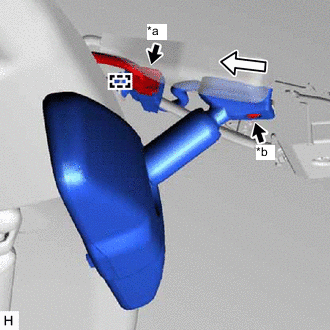

    1. B002HLRC04
      *a Connector
      *b Screw
      B002I10 Remove in this Direction

      for LHD:


      1. Disconnect the connector.

      2. Detach the clamp.

      3. Using a T20 "TORX" socket wrench, remove the screw.

      4. Slide the inner rear view mirror assembly in the direction indicated by the arrow shown in the illustration to remove the inner rear view mirror assembly.

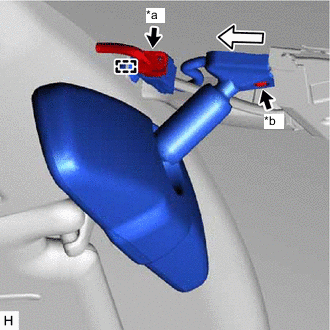

    2. B002JXJC04
      *a Connector
      *b Screw
      B002I10 Remove in this Direction

      for RHD:


      1. Disconnect the connector.

      2. Detach the clamp.

      3. Using a T20 "TORX" socket wrench, remove the screw.

      4. Slide the inner rear view mirror assembly in the direction indicated by the arrow shown in the illustration to remove the inner rear view mirror assembly.
