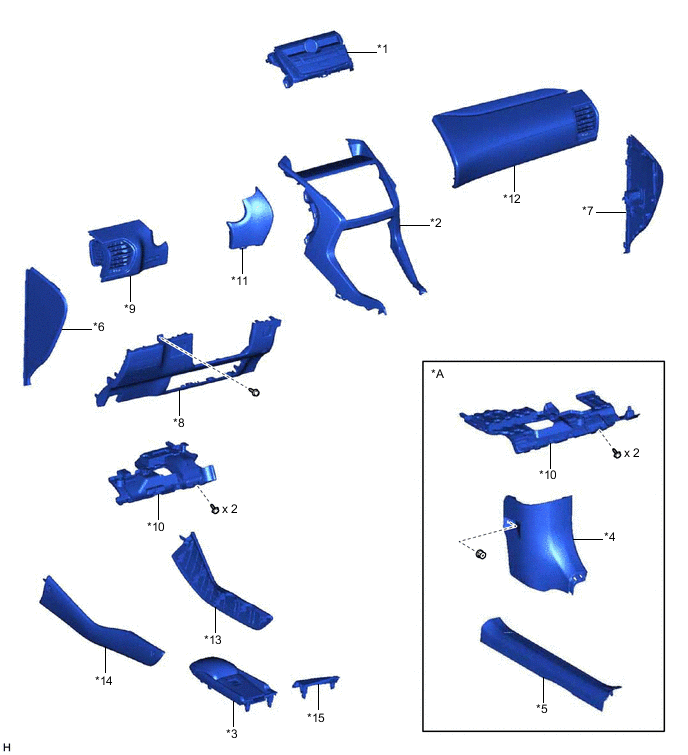

CLOCK COMPONENTS
ILLUSTRATION
| *A | for RHD | - | - |
| *1 | AIR CONDITIONING CONTROL ASSEMBLY (CLOCK) | *2 | CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY |
| *3 | CONSOLE ARMREST ASSEMBLY | *4 | COWL SIDE TRIM BOARD RH |
| *5 | DOOR SCUFF PLATE ASSEMBLY RH | *6 | INSTRUMENT SIDE PANEL LH |
| *7 | INSTRUMENT SIDE PANEL RH | *8 | LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL |
| *9 | NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY | *10 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY |
| *11 | NO. 1 SWITCH HOLE BASE | *12 | NO. 2 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY |
| *13 | UPPER NO. 1 CONSOLE PANEL GARNISH | *14 | UPPER NO. 2 CONSOLE PANEL GARNISH |
| *15 | UPPER REAR CONSOLE PANEL | - | - |
