CLOCK SYSTEM PARTS LOCATION

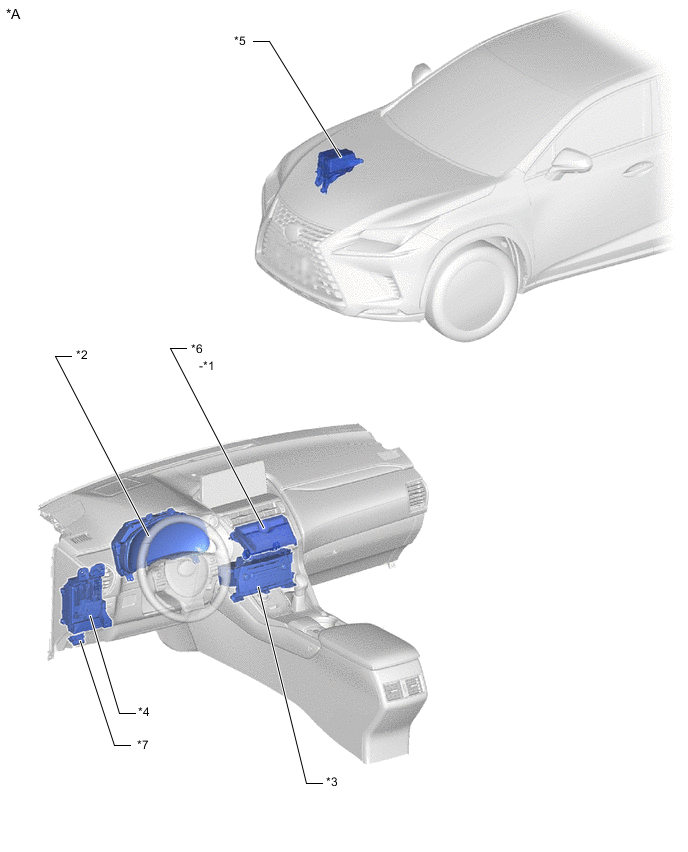

ILLUSTRATION
| *A | for LHD | - | - |
| *1 | CLOCK ASSEMBLY | *2 | COMBINATION METER ASSEMBLY |
| *3 | RADIO RECEIVER ASSEMBLY | *4 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ACC FUSE - PANEL FUSE |
| *5 | NO. 2 ENGINE ROOM RELAY BLOCK - ECU-B NO.1 FUSE |
*6 | AIR CONDITIONING CONTROL ASSEMBLY |
| *7 | DLC3 | - | - |

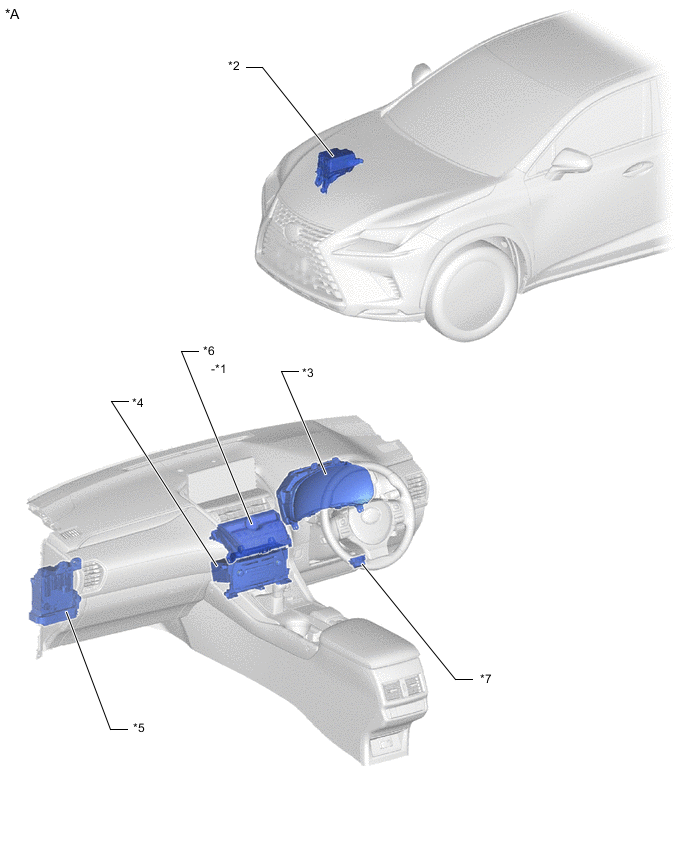

ILLUSTRATION
| *A | for RHD | - | - |
| *1 | CLOCK ASSEMBLY | *2 | NO. 2 ENGINE ROOM RELAY BLOCK - ECU-B NO.1 FUSE |
| *3 | COMBINATION METER ASSEMBLY | *4 | RADIO RECEIVER ASSEMBLY |
| *5 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ACC FUSE - PANEL FUSE |
*6 | AIR CONDITIONING CONTROL ASSEMBLY |
| *6 | DLC3 | - | - |
