ENGINE HOOD COURTESY SWITCH REMOVAL

PROCEDURE


  1. REMOVE RADIATOR SUPPORT OPENING COVER

    Click here

  2. REMOVE HOOD LOCK CONTROL CABLE COVER (for RHD, w/ Cover)

    Click here

  3. REMOVE HOOD LOCK ASSEMBLY (ENGINE HOOD COURTESY SWITCH)


    1. for RHD:

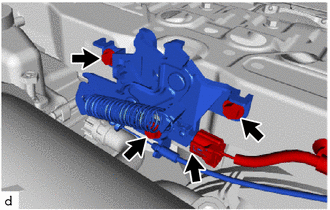

      1. A01CN90

        Disconnect the connector.

      2. Remove the 3 bolts.

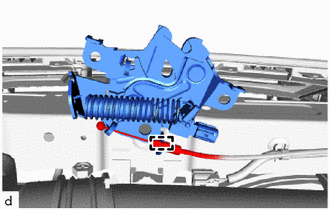

      3. A01CP6K

        Detach the guide, disconnect the hood lock control cable and remove the hood lock assembly (engine hood courtesy switch).

    2. for LHD:

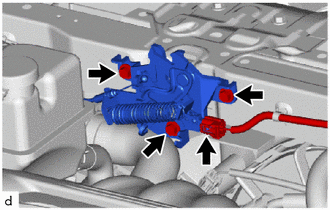

      1. A01CMZJ

        Disconnect the connector.

      2. Remove the 3 bolts.

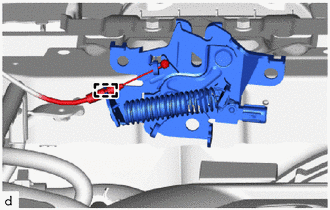

      3. A01CRJF

        Detach the guide, disconnect the hood lock control cable and remove the hood lock assembly (engine hood courtesy switch).
