ELECTRICAL KEY OSCILLATOR(for Front Floor) COMPONENTS
ILLUSTRATION
| *A | w/ Spare Tire | *B | w/o Spare Tire |
| *1 | DECK FLOOR BOX LH | *2 | NO. 3 DECK BOARD SUB-ASSEMBLY |
| *3 | REAR DECK FLOOR BOX | *4 | NEGATIVE AUXILIARY BATTERY TERMINAL |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

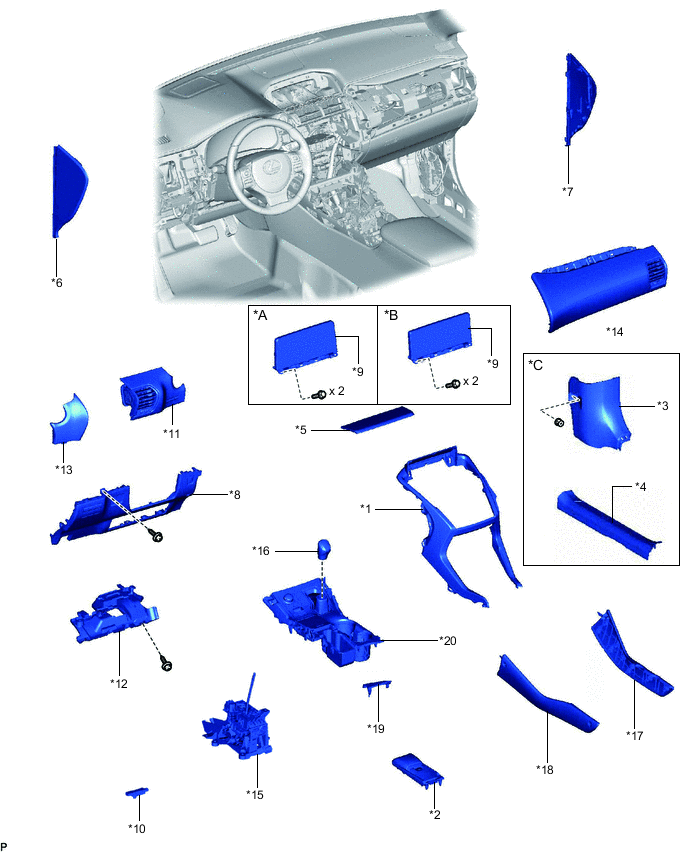

ILLUSTRATION
| *A | for 8 Inch | *B | for 10.3 Inch |
| *C | for RHD | - | - |
| *1 | CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY | *2 | CONSOLE ARMREST ASSEMBLY |
| *3 | COWL SIDE TRIM BOARD RH | *4 | DOOR SCUFF PLATE ASSEMBLY RH |
| *5 | INSTRUMENT PANEL FINISH PLATE | *6 | INSTRUMENT SIDE PANEL LH |
| *7 | INSTRUMENT SIDE PANEL RH | *8 | LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL |
| *9 | MULTI-DISPLAY ASSEMBLY WITH BRACKET | *10 | NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY |
| *11 | NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY | *12 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY |
| *13 | NO. 1 SWITCH HOLE BASE | *14 | NO. 2 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY |
| *15 | SHIFT LEVER ASSEMBLY | *16 | SHIFT LEVER KNOB SUB-ASSEMBLY |
| *17 | UPPER NO. 1 CONSOLE PANEL GARNISH | *18 | UPPER NO. 2 CONSOLE PANEL GARNISH |
| *19 | UPPER REAR CONSOLE PANEL | *20 | UPPER REAR CONSOLE PANEL SUB-ASSEMBLY |
