DOOR CONTROL RECEIVER COMPONENTS
ILLUSTRATION
| *A | w/ Spare Tire | *B | for Compact Size Spare Tire |
| *C | for Full Size Spare Tire | - | - |
| *1 | DECK FLOOR BOX LH | *2 | NO. 3 DECK BOARD SUB-ASSEMBLY |
| *3 | REAR DECK FLOOR BOX | *4 | NEGATIVE AUXILIARY BATTERY TERMINAL |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
| *A | w/o Spare Tire | - | - |
| *1 | BATTERY SERVICE COVER | *2 | NEGATIVE AUXILIARY BATTERY TERMINAL |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION

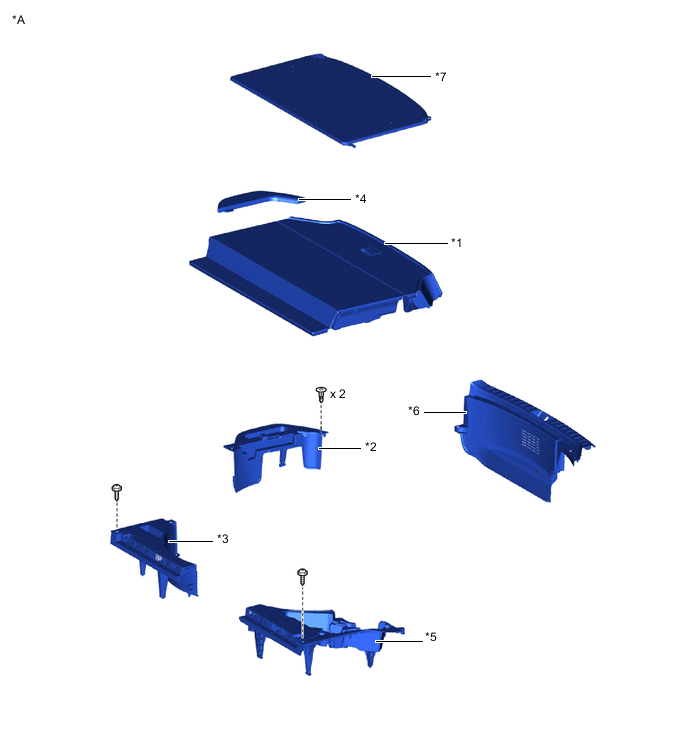

| *A | w/o Spare Tire | - | - |
| *1 | DECK BOARD ASSEMBLY | *2 | DECK FLOOR BOX RH |
| *3 | NO. 1 TOOL BOX SUB-ASSEMBLY | *4 | NO. 2 DECK BOARD SUB-ASSEMBLY |
| *5 | NO. 2 TOOL BOX SUB-ASSEMBLY | *6 | REAR FLOOR FINISH PLATE |
| *7 | TONNEAU COVER ASSEMBLY | - | - |

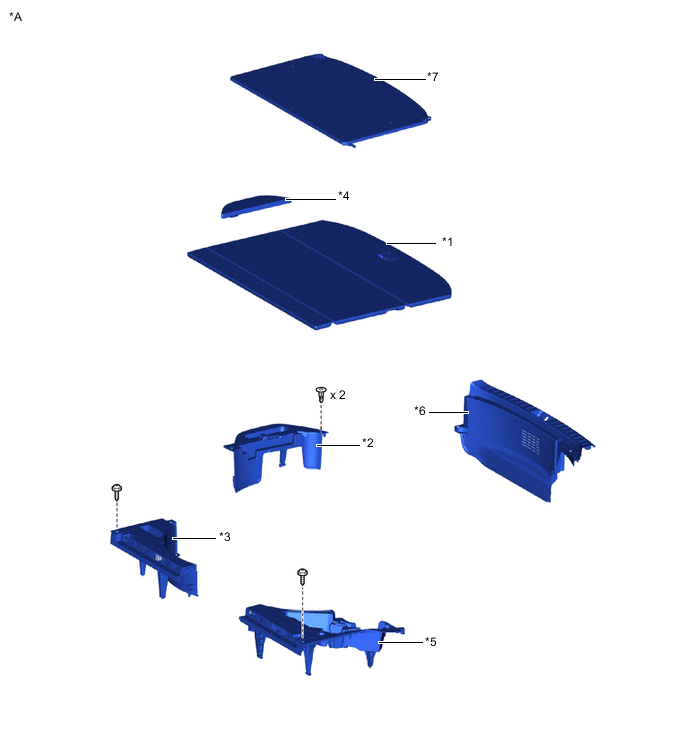

ILLUSTRATION
| *A | w/ Spare Tire (for Compact Spare Tire) |
- | - |
| *1 | DECK BOARD ASSEMBLY | *2 | DECK FLOOR BOX RH |
| *3 | NO. 1 TOOL BOX SUB-ASSEMBLY | *4 | NO. 2 DECK BOARD SUB-ASSEMBLY |
| *5 | NO. 2 TOOL BOX SUB-ASSEMBLY | *6 | REAR FLOOR FINISH PLATE |
| *7 | TONNEAU COVER ASSEMBLY | - | - |

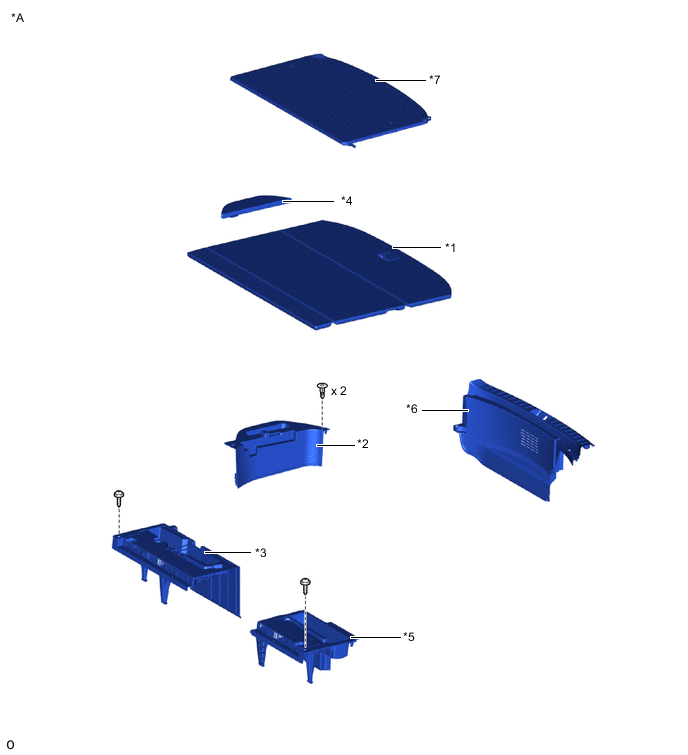

ILLUSTRATION
| *A | w/ Spare Tire (for Full Size Spare Tire) |
- | - |
| *1 | DECK BOARD ASSEMBLY | *2 | DECK FLOOR BOX RH |
| *3 | NO. 1 TOOL BOX SUB-ASSEMBLY | *4 | NO. 2 DECK BOARD SUB-ASSEMBLY |
| *5 | NO. 2 TOOL BOX SUB-ASSEMBLY | *6 | REAR FLOOR FINISH PLATE |
| *7 | TONNEAU COVER ASSEMBLY | - | - |
ILLUSTRATION
| *A | for Manual Seat | *B | for Power Seat |
| *1 | BATTERY SERVICE COVER BOARD | *2 | NO. 1 SEAT LEG ASSEMBLY |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

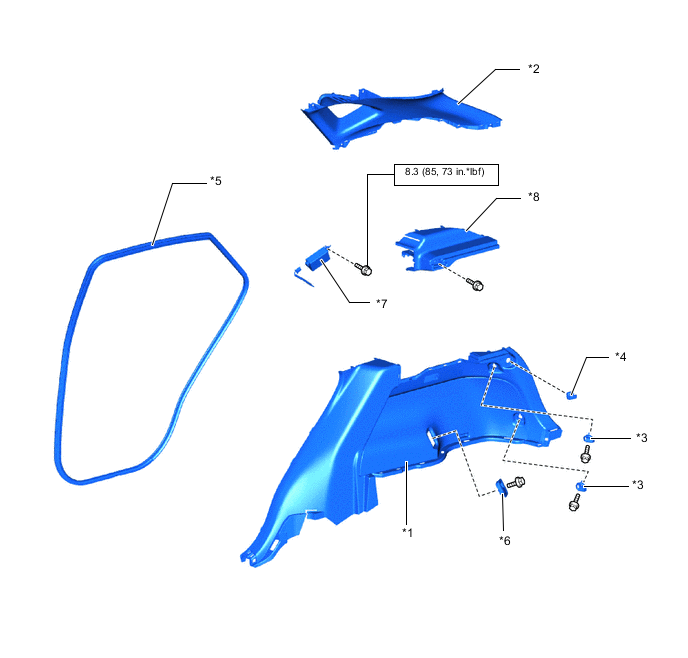

ILLUSTRATION
| *1 | DECK TRIM SIDE PANEL ASSEMBLY RH | *2 | INNER ROOF SIDE GARNISH ASSEMBLY RH |
| *3 | LUGGAGE HOLD BELT STRIKER ASSEMBLY | *4 | NO. 1 LUGGAGE COMPARTMENT TRIM HOOK |
| *5 | REAR DOOR OPENING TRIM WEATHERSTRIP RH | *6 | ROPE HOOK ASSEMBLY |
| *7 | SMART DOOR CONTROL RECEIVER ASSEMBLY | *8 | UPPER DECK TRIM SIDE BOARD RH |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
