MAIN BODY ECU(for LHD) COMPONENTS
ILLUSTRATION
| *A | w/o Spare Tire | - | - |
| *1 | AUXILIARY BATTERY NEGATIVE TERMINAL | *2 | BATTERY SERVICE COVER |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
| *A | w/ Spare Tire | *B | for Compact Size Spare Tire |
| *C | for Full Size Spare Tire | - | - |
| *1 | DECK FLOOR BOX LH | *2 | NO. 3 DECK BOARD SUB-ASSEMBLY |
| *3 | REAR DECK FLOOR BOX | *4 | AUXILIARY BATTERY NEGATIVE TERMINAL |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

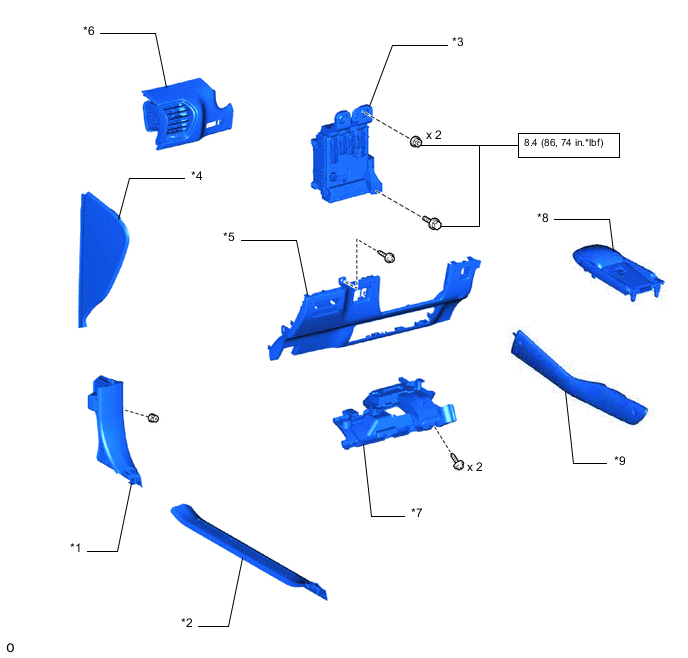

ILLUSTRATION
| *1 | COWL SIDE TRIM BOARD LH | *2 | DOOR SCUFF PLATE ASSEMBLY LH |
| *3 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY | *4 | INSTRUMENT SIDE PANEL LH |
| *5 | LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL | *6 | NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY |
| *7 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | *8 | REAR CONSOLE ARMREST ASSEMBLY |
| *9 | UPPER NO. 2 CONSOLE PANEL GARNISH | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

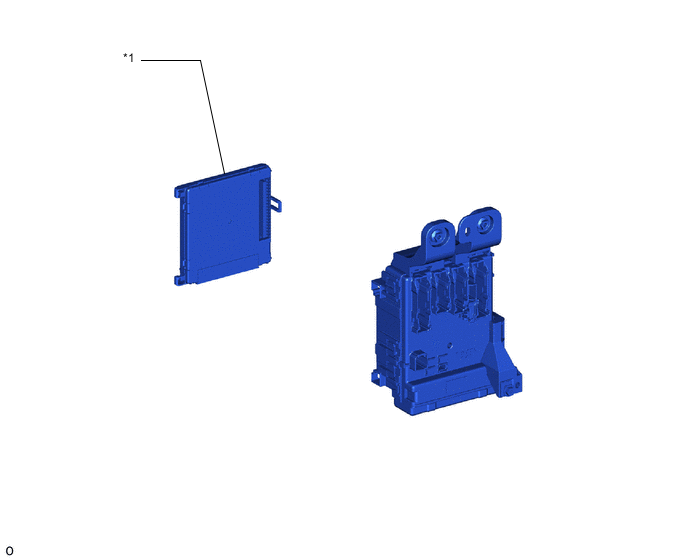

ILLUSTRATION
| *1 | MULTIPLEX NETWORK BODY ECU (MAIN BODY ECU) | - | - |
