PANORAMIC VIEW MONITOR SYSTEM ECU Power Source Circuit

DESCRIPTION

This circuit is the power source circuit to operate the parking assist ECU. The parking assist ECU controls the panoramic view monitor system.

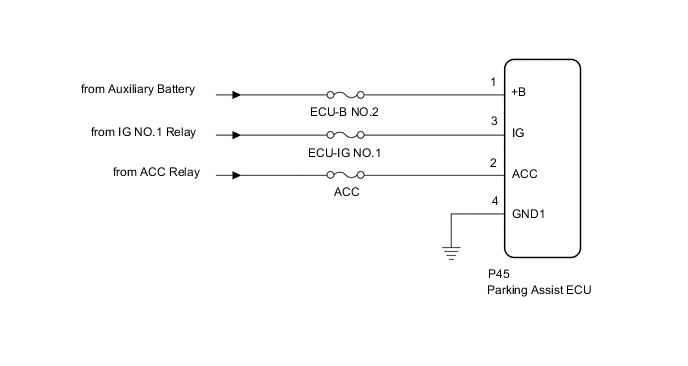

WIRING DIAGRAM

B002KFIE36

CAUTION / NOTICE / HINT

Note

Inspect the fuse for circuits related to this system before performing the following procedure.

Tech Tips

If the parking assist ECU does not operate due to a power source problem, other system DTCs may be stored due to a CAN communication interruption.

PROCEDURE


  1. CHECK HARNESS AND CONNECTOR (PARKING ASSIST ECU - BATTERY AND BODY GROUND)

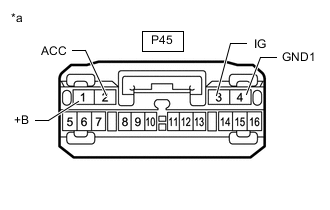

    1. B002JAJC36
      *a

      Front view of wire harness connector

      (to Parking Assist ECU)

      Disconnect the parking assist ECU connector.

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      P45-4 (GND1) - Body ground Always Below 1 Ω

    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage
      Tester Connection Switch Condition Specified Condition
      P45-1 (+B) - P45-4 (GND1) Power switch off 11 to 14 V
      P45-2 (ACC) - P45-4 (GND1) Power switch on (ACC) 11 to 14 V
      Power switch off Below 1 V
      P45-3 (IG) - P45-4 (GND1) Power switch on (IG) 11 to 14 V
      Power switch off Below 1 V
      Result
      Result
      OK
      NG

    OK

    PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Click here

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
