TELEMATICS SYSTEM(w/ Telematics Transceiver for G-BOOK) PARTS LOCATION

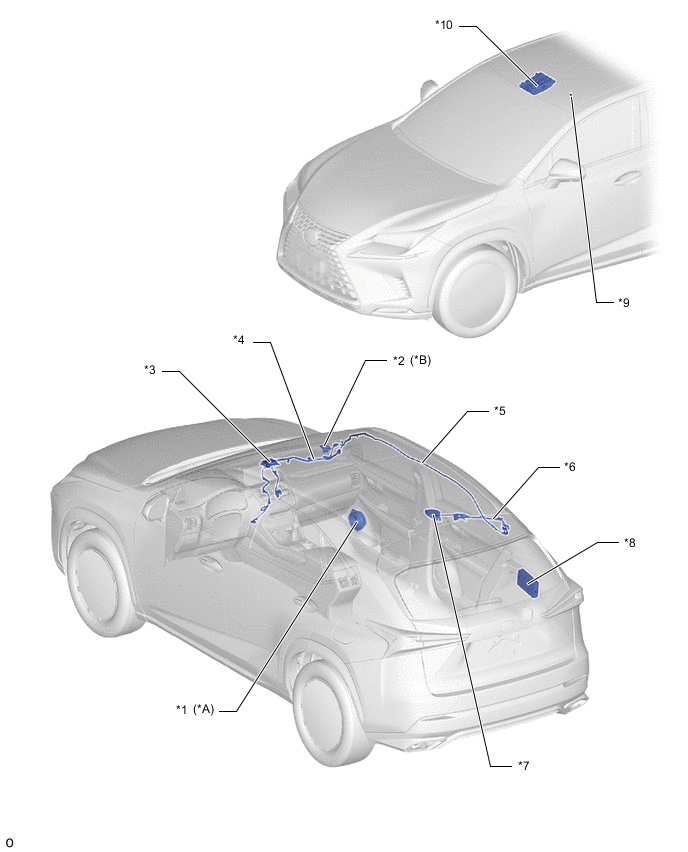

ILLUSTRATION
| *A | for 8 Speakers | *B | except 8 Speakers |
| *1 | FRONT NO. 1 SPEAKER ASSEMBLY RH | *2 | FRONT NO. 2 SPEAKER ASSEMBLY RH |
| *3 | NAVIGATION ANTENNA ASSEMBLY | *4 | NO. 1 ANTENNA CORD SUB-ASSEMBLY |
| *5 | NO. 2 ANTENNA CORD SUB-ASSEMBLY | *6 | NO. 4 ANTENNA CORD SUB-ASSEMBLY |
| *7 | ROOF ANTENNA ASSEMBLY | *8 | STEREO COMPONENT AMPLIFIER ASSEMBLY |
| *9 | TELEPHONE MICROPHONE ASSEMBLY | *10 | MAP LIGHT ASSEMBLY - EMERGENCY CALL SWITCH |

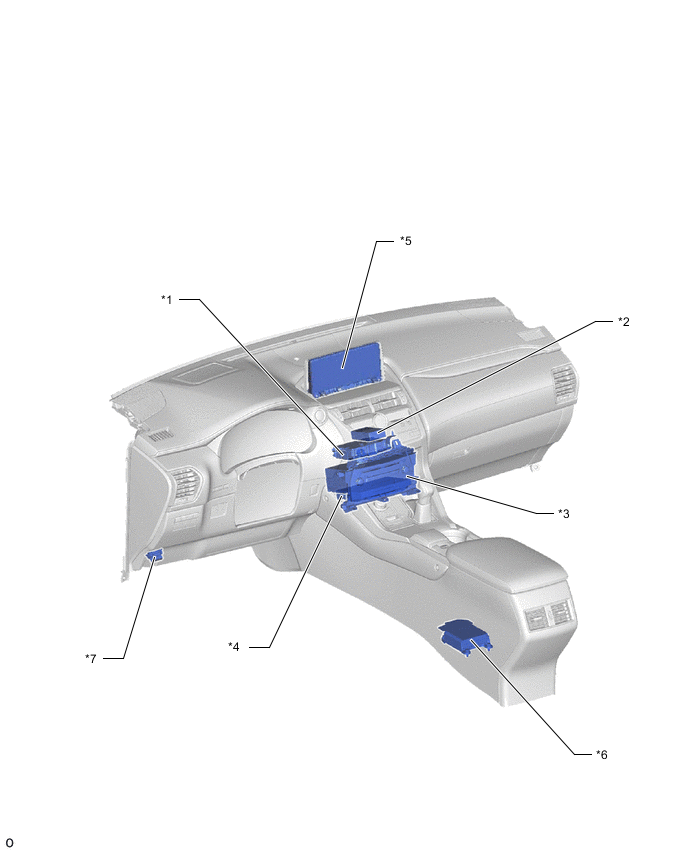

ILLUSTRATION
| *A | w/ Navigation System | - | - |
| *1 | TELEMATICS TRANSCEIVER (DATA COMMUNICATION MODULE [DCM]) | *2 | MAYDAY BATTERY (BACK-UP BATTERY) |
| *3 | RADIO RECEIVER ASSEMBLY | *4 | NAVIGATION ECU |
| *5 | MULTI-DISPLAY ASSEMBLY | *6 | AIRBAG ECU ASSEMBLY |
| *7 | DLC3 | - | - |
