BRAKE BOOSTER(for RHD) COMPONENTS

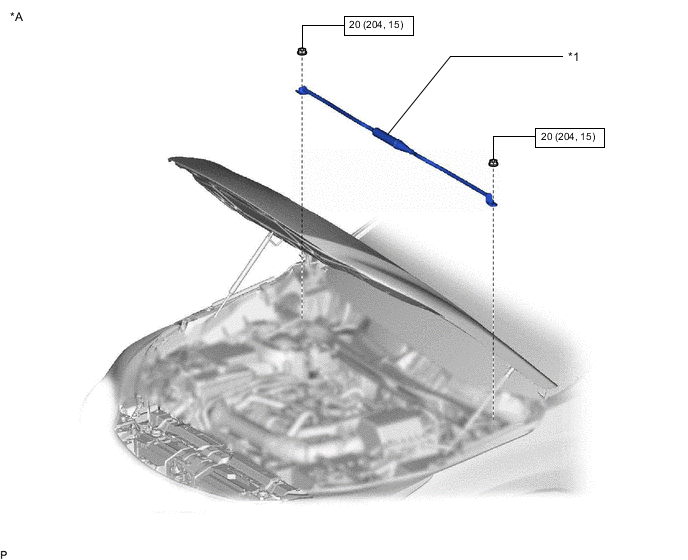

ILLUSTRATION
| *A | w/ Performance Rod | - | - |
| *1 | SUSPENSION TOWER DAMPER | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

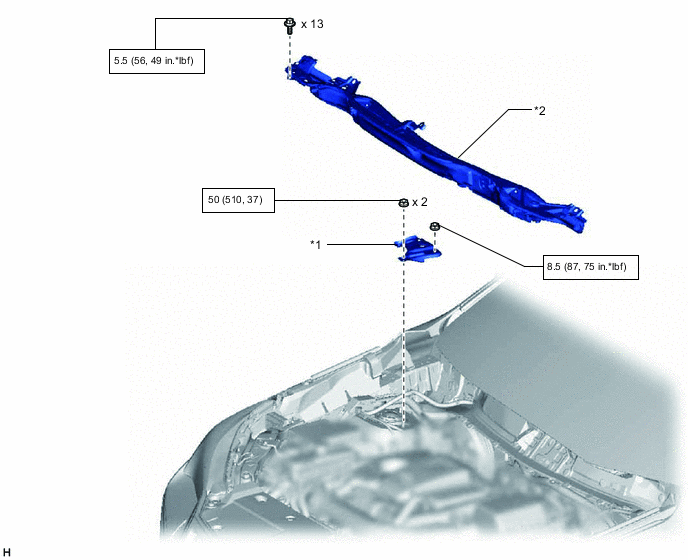

ILLUSTRATION
| *1 | COWL BODY MOUNTING REINFORCEMENT RH | *2 | OUTER COWL TOP PANEL |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

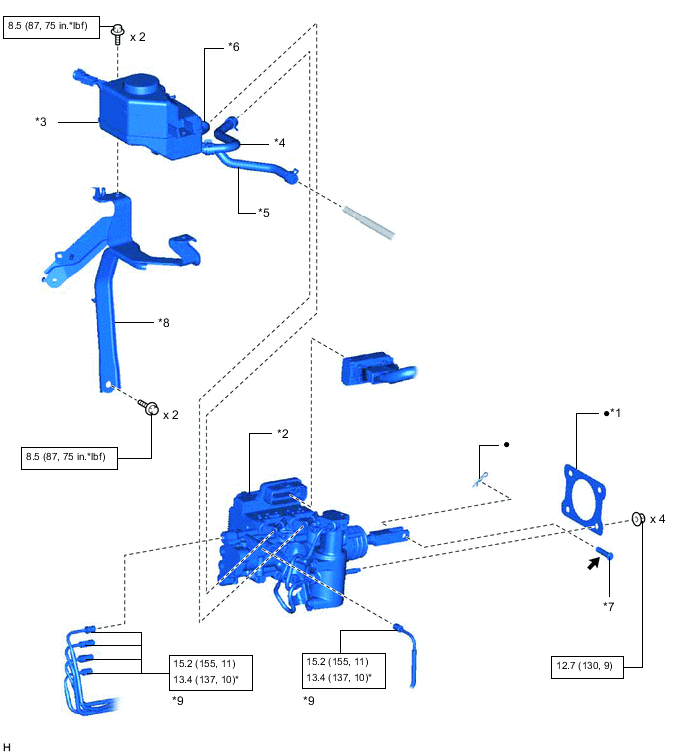

ILLUSTRATION
| *1 | BRAKE BOOSTER GASKET | *2 | BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY |
| *3 | BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY | *4 | NO. 1 RESERVOIR HOSE |
| *5 | NO. 2 BRAKE ACTUATOR HOSE | *6 | NO. 2 RESERVOIR HOSE |
| *7 | PUSH ROD PIN | *8 | RESERVOIR BRACKET |
| *9 | BRAKE TUBE | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | * | For use with union nut wrench |
| ● | Non-reusable part |  |
Lithium soap base glycol grease |
