TIRE PRESSURE WARNING RECEIVER(for RH Side) INSTALLATION

PROCEDURE


  1. INSTALL TIRE PRESSURE WARNING ECU AND RECEIVER


    1. Connect the connector to the tire pressure warning ECU and receiver.

    2. Attach the 2 guides to temporarily install the tire pressure warning ECU and receiver.

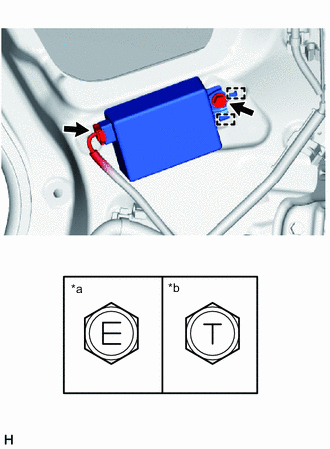

    3. B002H93C01
      *a for bolt A
      *b for bolt B

      Install the bolt.

      Torque:
      for bolt A
      8.3 N*m  { 85 kgf*cm, 73 in.*lbf }
      for bolt B
      10 N*m  { 102 kgf*cm, 7 ft.*lbf }

  2. INSTALL INNER ROOF SIDE GARNISH ASSEMBLY RH

    Click here

  3. INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH

    Click here

  4. INSTALL UPPER DECK TRIM SIDE BOARD RH

    Click here

  5. INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM HOOK

    Click here

  6. INSTALL LUGGAGE HOLD BELT STRIKER ASSEMBLY

    Click here

  7. INSTALL ROPE HOOK ASSEMBLY

    Click here

  8. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH

    Click here

  9. INSTALL NO. 1 SEAT LEG ASSEMBLY


  10. INSTALL BATTERY SERVICE COVER BOARD


  11. INSTALL REAR FLOOR FINISH PLATE (w/ Spare Tire)

    Click here

  12. INSTALL REAR FLOOR FINISH PLATE (w/o Spare Tire)

    Click here

  13. INSTALL REAR FLOOR CARPET

  14. INSTALL NO. 2 TOOL BOX SUB-ASSEMBLY (w/ Spare Tire)

    Click here

  15. INSTALL NO. 2 TOOL BOX SUB-ASSEMBLY (w/o Spare Tire)

    Click here

  16. INSTALL NO. 1 TOOL BOX SUB-ASSEMBLY (w/ Spare Tire)

    Click here

  17. INSTALL NO. 1 TOOL BOX SUB-ASSEMBLY (w/o Spare Tire)

    Click here

  18. INSTALL DECK FLOOR BOX RH (w/ Spare Tire)

    Click here

  19. INSTALL DECK FLOOR BOX RH (w/o Spare Tire)

    Click here

  20. INSTALL DECK FLOOR BOX LH (w/o Spare Tire)

    Click here

  21. INSTALL SPARE TIRE (w/ Spare Tire)

  22. INSTALL NO. 2 DECK BOARD SUB-ASSEMBLY

    Click here

  23. INSTALL TONNEAU COVER ASSEMBLY

    Click here

  24. INSTALL REAR SEAT ASSEMBLY


  25. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

    Note

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Click here


    1. w/o Spare tire:

      Attach the 2 claws to install the battery service cover.

  26. INSTALL DECK FLOOR BOX LH (w/ Spare Tire)

    Click here

  27. INSTALL REAR DECK FLOOR BOX (w/ Spare Tire)

    Click here

  28. INSTALL NO. 3 DECK BOARD SUB-ASSEMBLY

    Click here

  29. INSTALL DECK BOARD ASSEMBLY

    Click here

  30. REGISTRATION OF TRANSMITTER ID

    Click here

  31. INSPECT TIRE PRESSURE WARNING SYSTEM

    Click here

  32. PERFORM INITIALIZATION

    Click here
