TIRE PRESSURE WARNING RECEIVER(for LH Side) REMOVAL

PROCEDURE


  1. PRECAUTION

    Note

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

    Click here

    Tech Tips

    The installation location of the tire pressure warning receiver differs depending on the vehicle. For more details about the installation location, refer to the following.

    Click here

  2. REMOVE DECK BOARD ASSEMBLY

    Click here

  3. REMOVE NO. 3 DECK BOARD SUB-ASSEMBLY

    Click here

  4. REMOVE REAR DECK FLOOR BOX

    Click here

  5. REMOVE DECK FLOOR BOX LH

    Click here

  6. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Note

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Click here

  7. REMOVE REAR SEAT ASSEMBLY


  8. REMOVE TONNEAU COVER ASSEMBLY

    Click here

  9. REMOVE NO. 2 DECK BOARD SUB-ASSEMBLY

    Click here

  10. REMOVE SPARE TIRE

  11. REMOVE DECK FLOOR BOX RH

    Click here

  12. REMOVE NO. 1 TOOL BOX SUB-ASSEMBLY

    Click here

  13. REMOVE NO. 2 TOOL BOX SUB-ASSEMBLY

    Click here

  14. REMOVE REAR FLOOR CARPET

  15. REMOVE REAR FLOOR FINISH PLATE

    Click here

  16. REMOVE BATTERY SERVICE COVER BOARD


  17. REMOVE NO. 1 SEAT LEG ASSEMBLY


  18. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH

    Click here

  19. REMOVE ROPE HOOK ASSEMBLY

    Click here

  20. REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY

    Click here

  21. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK

    Click here

  22. REMOVE UPPER DECK TRIM SIDE BOARD LH

    Click here

  23. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH

    Click here

  24. REMOVE INNER ROOF SIDE GARNISH ASSEMBLY LH

    Click here

  25. REMOVE TIRE PRESSURE WARNING ECU AND RECEIVER

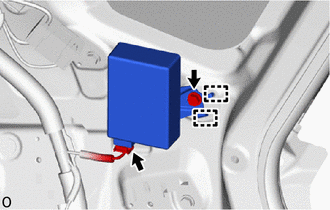

    1. B002I3O

      Remove the bolt.

    2. Detach the 2 guides to remove the tire pressure warning ECU and receiver.

    3. Disconnect the connector from the tire pressure warning ECU and receiver.
