HYBRID TRANSAXLE MASS DAMPER REMOVAL

PROCEDURE

1. REMOVE REAR SUSPENSION BRACE SUB-ASSEMBLY

   Click here

2. REMOVE HV TRANSAXLE MASS DAMPER




   1.

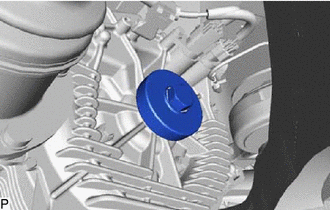

      Remove the HV transaxle mass damper and gasket from the rear traction motor with transaxle assembly.
