HYBRID TRANSAXLE MASS DAMPER COMPONENTS

ILLUSTRATION

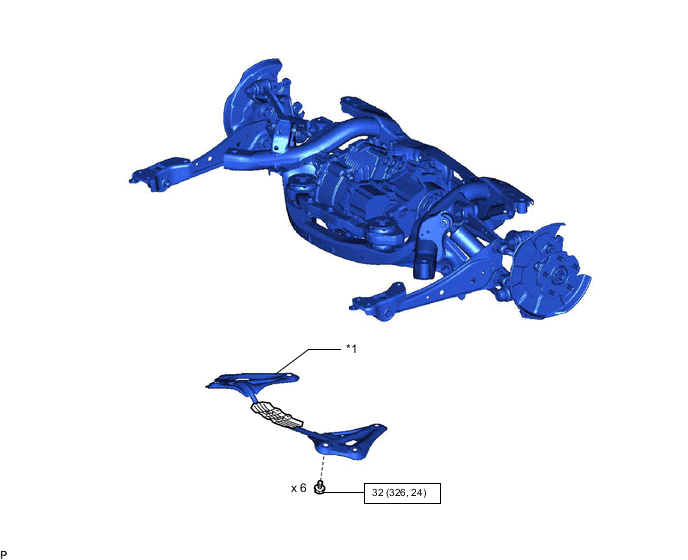

A01CN8PC02
*1 REAR SUSPENSION BRACE SUB-ASSEMBLY - -
B002J82 N*m (kgf*cm, ft.*lbf): Specified torque - -

ILLUSTRATION

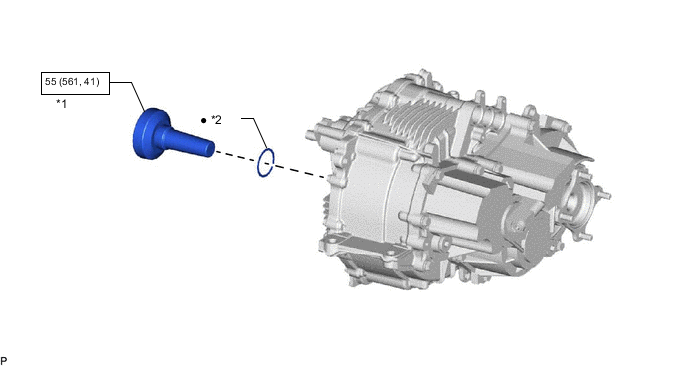

A01CQZAC02
*1 HV TRANSAXLE MASS DAMPER *2 GASKET
B002J82 N*m (kgf*cm, ft.*lbf): Specified torque ● Non-reusable part
