HYBRID TRANSAXLE SIDE GEAR OIL SEAL REPLACEMENT

PROCEDURE


  1. REMOVE DIFFERENTIAL SIDE GEAR SHAFT SUB-ASSEMBLY

    Click here

  2. REMOVE REAR TRANSAXLE SIDE GEAR OIL SEAL


    1. for LH Side:

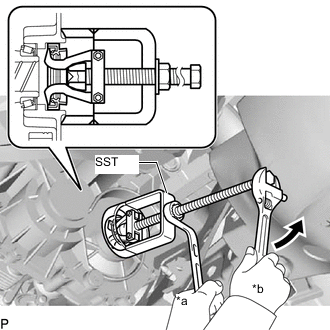

      1. A01COJLC02
        *a Hold
        *b Turn

        Using SST, remove the rear transaxle side gear oil seal from the rear traction motor with transaxle assembly.

        SST
        09612-65014   ( 09612-01020 )

    2. for RH Side:

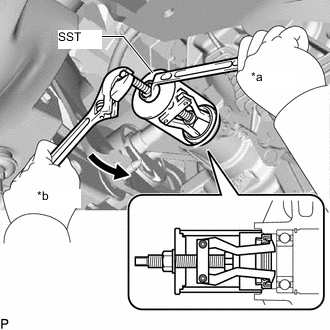

      1. A01CODKC02
        *a Hold
        *b Turn

        Using SST, remove the rear transaxle side gear oil seal from the rear traction motor with transaxle assembly.

        SST
        09612-30012

  3. INSTALL REAR TRANSAXLE SIDE GEAR OIL SEAL


    1. for LH Side:


      1. Apply MP grease to the lip of a new rear transaxle side gear oil seal.

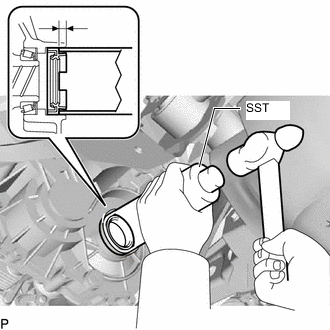

      2. A01CP5IN02

        Using SST and a hammer, install the rear transaxle side gear oil seal to the rear traction motor with transaxle assembly.

        SST
        09316-60011   ( 09316-00011 )
        Standard Depth
        7.1 to 8.1 mm (0.280 to 0.318 in.)

        Note


        • Do not install the rear transaxle side gear oil seal at an angle.

        • Do not damage the rear transaxle side gear oil seal.

    2. for RH Side:


      1. Apply MP grease to the lip of a new rear transaxle side gear oil seal.

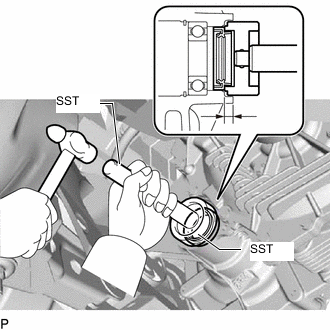

      2. A01CN8RN02

        Using SST and a hammer, install the rear transaxle side gear oil seal to the rear traction motor with transaxle assembly.

        SST
        09350-32014   ( 09351-32150 )
        09950-70010   ( 09951-07100 )
        Standard Depth
        7.1 to 8.1 mm (0.280 to 0.318 in.)

        Note


        • Do not install the rear transaxle side gear oil seal at an angle.

        • Do not damage the rear transaxle side gear oil seal.

  4. INSTALL DIFFERENTIAL SIDE GEAR SHAFT SUB-ASSEMBLY

    Click here
