TILT AND TELESCOPIC MANUAL SWITCH INSPECTION

PROCEDURE


  1. INSPECT TILT AND TELESCOPIC SWITCH

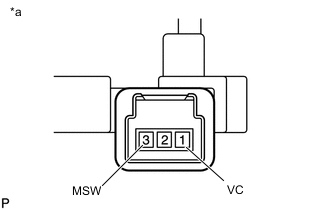

    1. B002HZRC14
      *a

      Component without harness connected

      (Tilt and Telescopic Manual Switch)

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Switch Condition Specified Condition
      1 (VC) - 3 (MSW) Tilt up 342 to 378 Ω
      Tilt down 1890.5 to 2089.5 Ω
      Telescopic contract 750.5 to 829.5 Ω
      Telescopic extend 152 to 168 Ω

      If the result is not as specified, replace the tilt and telescopic manual switch.
