TILT AND TELESCOPIC MANUAL SWITCH COMPONENTS

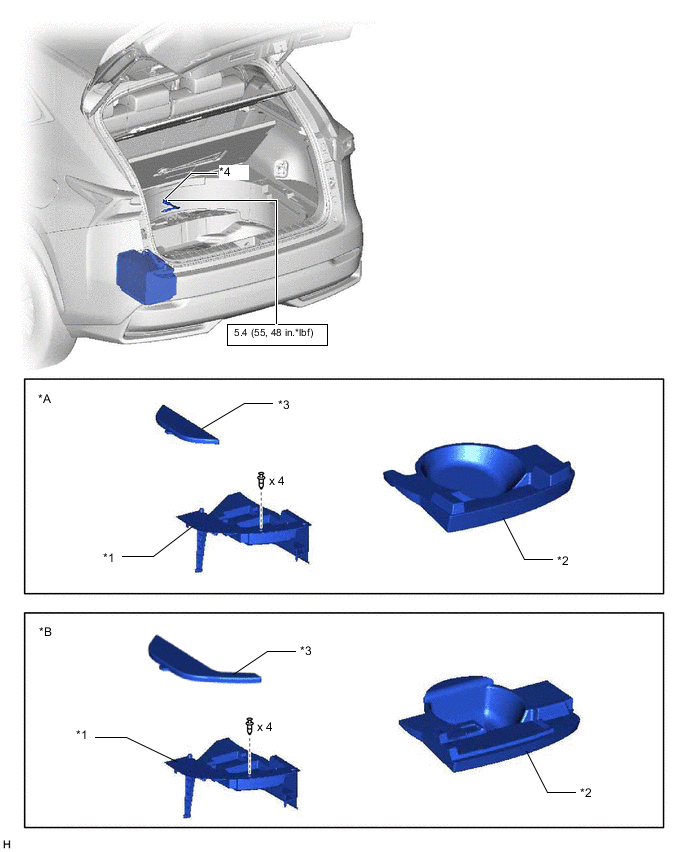

ILLUSTRATION
| *A | for Full Size Spare Tire | *B | for Compact Size Spare Tire |
| *1 | DECK FLOOR BOX LH | *2 | REAR DECK FLOOR BOX |
| *3 | NO. 3 DECK BOARD SUB-ASSEMBLY | *4 | NEGATIVE AUXILIARY BATTERY TERMINAL |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

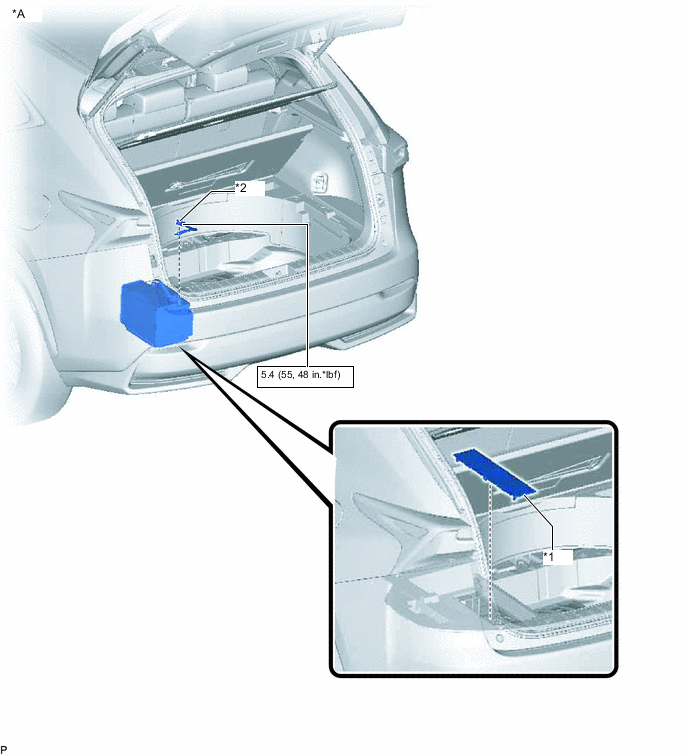

ILLUSTRATION
| *A | w/o Spare Tire | - | - |
| *1 | BATTERY SERVICE COVER | *2 | NEGATIVE AUXILIARY BATTERY TERMINAL |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

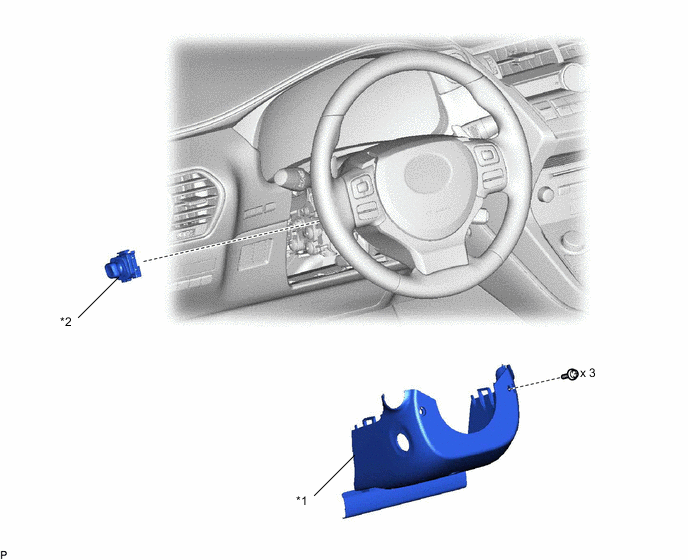

ILLUSTRATION
| *1 | LOWER STEERING COLUMN COVER | *2 | TILT AND TELESCOPIC SWITCH |
