STEERING PAD SWITCH REMOVAL

PROCEDURE


  1. REMOVE STEERING PAD

    Click here

  2. REMOVE CRUISE CONTROL MAIN SWITCH

    Click here

  3. REMOVE STEERING PAD SWITCH ASSEMBLY


    1. Disconnect the steering pad switch connector from the spiral cable with sensor sub-assembly.

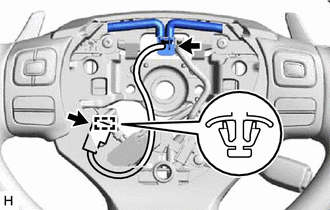

    2. B002JLU

      w/o Steering Wheel Vibration:


      1. Disengage the steering pad switch connector clamp from the lower steering wheel boss cover.

    3. Disconnect the steering pad switch connector from the No. 1 switch wire.

    4. Remove the 2 screws.

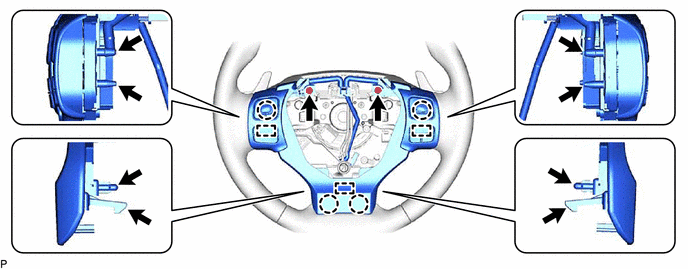

      B002J94

    5. Disengage the the 3 guide pins and 4 claws and remove the switch assembly.
