REAR TRACTION MOTOR COMPONENTS

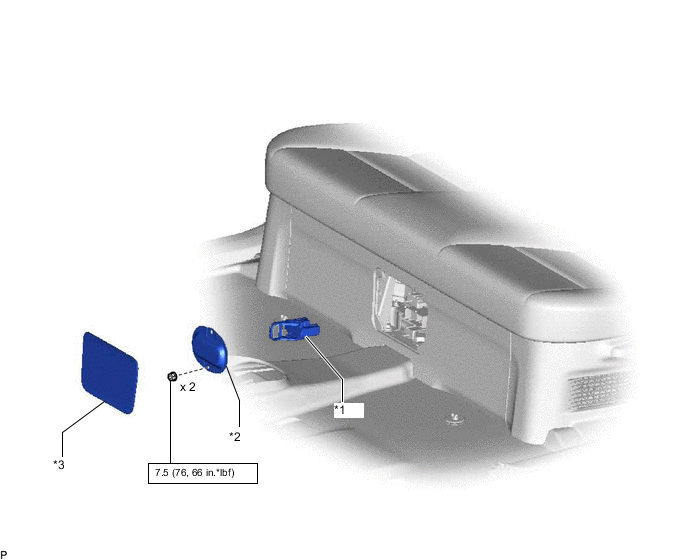

ILLUSTRATION
| *1 | SERVICE PLUG GRIP | *2 | HYBRID BATTERY SERVICE PLUG COVER |
| *3 | BATTERY SERVICE HOLE COVER | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

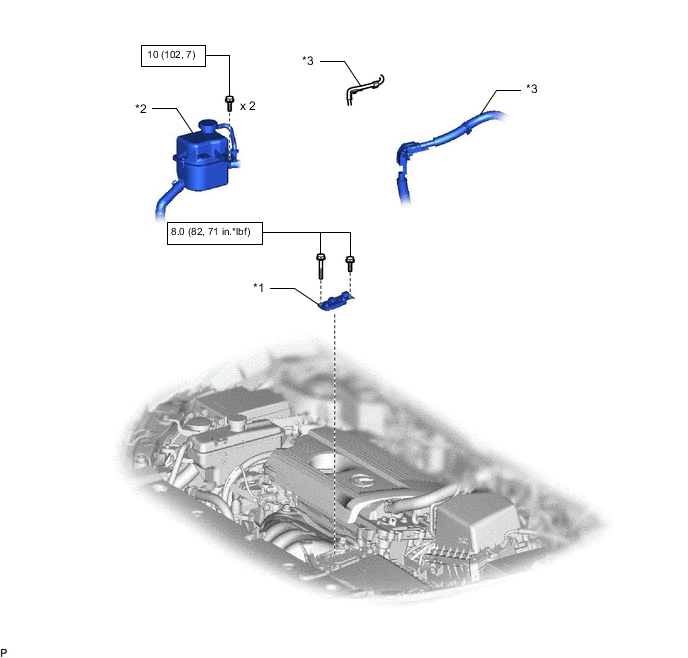

ILLUSTRATION
| *1 | CONNECTOR COVER ASSEMBLY | *2 | INVERTER RESERVE TANK ASSEMBLY |
| *3 | WIRE HARNESS | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

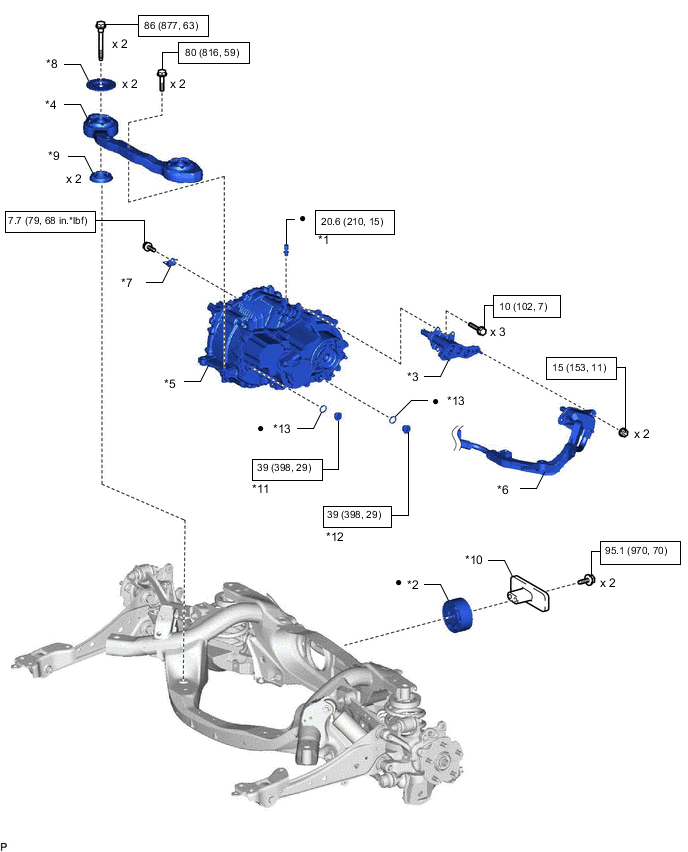

ILLUSTRATION
| *1 | BREATHER PLUG | *2 | DIFFERENTIAL MOUNT CUSHION |
| *3 | EXTENSION WIRE ASSEMBLY | *4 | FRONT DIFFERENTIAL SUPPORT ASSEMBLY |
| *5 | REAR TRACTION MOTOR WITH TRANSAXLE ASSEMBLY | *6 | NO. 2 FRAME WIRE |
| *7 | WIRE HARNESS CLAMP BRACKET | *8 | UPPER DIFFERENTIAL MOUNT STOPPER |
| *9 | LOWER DIFFERENTIAL MOUNT STOPPER | *10 | DIFFERENTIAL DYNAMIC DAMPER |
| *11 | FILLER PLUG | *12 | DRAIN PLUG |
| *13 | GASKET | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
