DIFFERENTIAL SIDE GEAR SHAFT REMOVAL

PROCEDURE


  1. DRAIN HYBRID TRANSAXLE FLUID

    Click here

  2. REMOVE REAR DRIVE SHAFT ASSEMBLY

    Click here

  3. REMOVE DIFFERENTIAL SIDE GEAR SHAFT SUB-ASSEMBLY

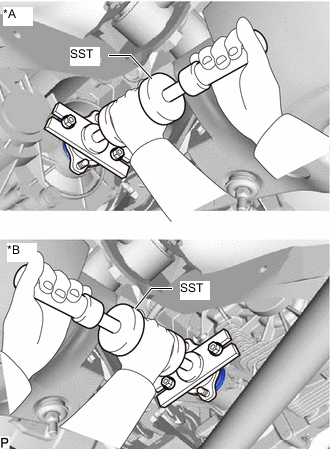

    1. A01CRN2C02
      *A for LH Side
      *B for RH Side

      Using SST, remove the differential side gear shaft sub-assembly from the rear traction motor with transaxle assembly.

      SST
      09520-24010   ( 09520-04010, 09520-32040 )

      Note

      Do not damage the rear transaxle side gear oil seal.

    2. Secure the differential side gear shaft sub-assembly in a vise using aluminum plates.

      Note

      Be careful not to damage the differential side gear shaft sub-assembly in the vise.

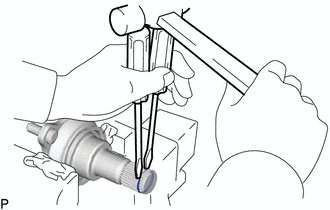

    3. A01CNT0

      Using 2 screwdrivers and a hammer, remove the differential side gear shaft snap ring from the differential side gear shaft sub-assembly.

  4. REMOVE DUST COVER


    1. Secure the differential side gear shaft sub-assembly in a vise using aluminum plates.

      Note

      Be careful not to damage the differential side gear shaft sub-assembly in the vise.

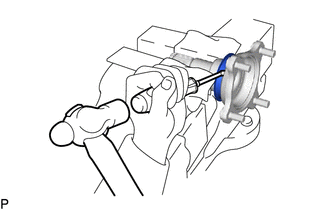

    2. A01CNTL

      Using a screwdriver and hammer, remove the dust cover from the differential side gear shaft sub-assembly.
