OIL COOLER REMOVAL

PROCEDURE


  1. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

    Click here

  2. REMOVE INVERTER WITH CONVERTER ASSEMBLY

    Click here

  3. REMOVE INVERTER WATER PUMP WITH MOTOR ASSEMBLY

    Click here

  4. REMOVE INVERTER BRACKET ASSEMBLY

    Click here

  5. DISCONNECT WIRE HARNESS

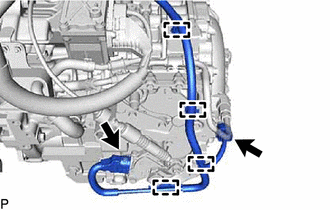

    1. A01H6AJ

      Disconnect the 4 clamps, 2 connectors and wire harness from the hybrid vehicle transaxle assembly.

  6. DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY

    Click here

  7. DRAIN HYBRID TRANSAXLE FLUID

    Click here

  8. DISCONNECT NO. 5 INVERTER COOLING HOSE

    Click here

  9. REMOVE TRANSMISSION OIL COOLER ASSEMBLY

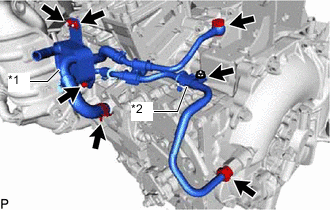

    1. A01H6H1C02
      *1 Transmission Oil Cooler Assembly
      *2 No. 1 Oil Cooler Tube Clamp

      Slide the hose clamp and disconnect the transmission oil cooler assembly from the hybrid vehicle transaxle assembly.

    2. Remove the 2 bolts, 2 nuts, union bolt, flare nut, gasket, No. 1 oil cooler tube clamp and transmission oil cooler assembly from the hybrid vehicle transaxle assembly.
