OIL COOLER COMPONENTS

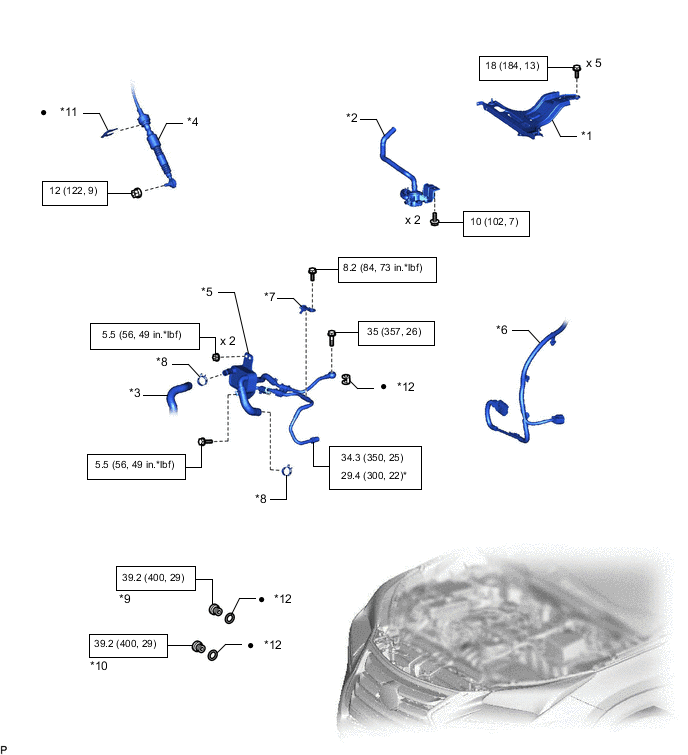

ILLUSTRATION
| *1 | NO. 1 ENGINE UNDER COVER ASSEMBLY | - | - |
ILLUSTRATION
| *1 | INVERTER BRACKET ASSEMBLY | *2 | INVERTER WATER PUMP WITH MOTOR ASSEMBLY |
| *3 | NO. 5 INVERTER COOLING HOSE | *4 | TRANSMISSION CONTROL CABLE ASSEMBLY |
| *5 | TRANSMISSION OIL COOLER ASSEMBLY | *6 | WIRE HARNESS |
| *7 | NO. 1 OIL COOLER TUBE CLAMP | *8 | HOSE CLAMP |
| *9 | FILLER PLUG | *10 | DRAIN PLUG |
| *11 | CLIP | *12 | GASKET |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | * | For use with union nut wrench |
| ● | Non-reusable part | - | - |
