LANE DEPARTURE ALERT SYSTEM(w/ Steering Control) SYSTEM DESCRIPTION

LANE DEPARTURE WARNING FUNCTION

1. When the steering assist customize setting is set to "OFF" on the multi-information display:




   1. If all the conditions are met, the lane departure warning operates, the lane departure alert indicator light illuminates and the white lines are displayed.

   2. Operation conditions




      1. LDA switch is on

      2. Vehicle speed within operating range for lane departure warning function

      3. Lane markers are recognized

      4. Turn signals are not operating

      5. Hazard warning lights are not operating

      6. System malfunction is not detected

2. When the steering assist customize setting is set to "ON" on the multi-information display:




   1. If the following conditions are met along with the conditions for the lane departure warning function, the lane departure warning (w/ Steering Control) operates, the lane departure alert indicator light illuminates, the white lines are displayed and the steering indicator light illuminates.

   2. Operation conditions




      1. Steering assist "ON" is selected using the customize switch

      2. A deceleration of a certain amount or more is not detected

      3. A steering wheel operation which would change the direction of travel is not detected

      4. Vehicle safety device (VSC, PCS, etc.) is not detected

      5. An accelerator pedal operation intended to accelerate the vehicle is not detected

DISPLAY

1. When the lane departure alert system is malfunctioning, the lane departure alert indicator light and steering indicator light turn off, a buzzer sounds and the master warning light illuminates and warnings are displayed on the multi-information display.

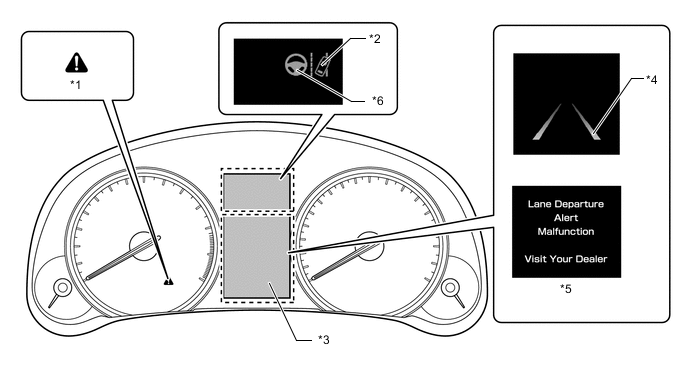

   *1	Master Warning Light	*2	Lane Departure Alert Indicator Light
   *3	Multi-information Display	*4	White Line Display
   *5	Warning Display	*6	Steering Indicator Light

2. Steering pad switch assembly (lane departure alert main switch) inspection



   1.

      *a	Lane Departure Alert Indicator Light

      Turn the power switch on (IG).

   2. Check that the lane departure alert indicator light on the multi-information display turns on and off when the ON/OFF switch of the steering pad switch assembly (lane departure alert main switch) is turned on and off accordingly.

   3. With the lane departure alert indicator light illuminated, check that when the power switch is turned off and then back on again the lane departure alert indicator light is turned off.

3. Steering indicator light inspection




   1. Select "ON" for the steering assist customize setting on the multi-information display.

   2.

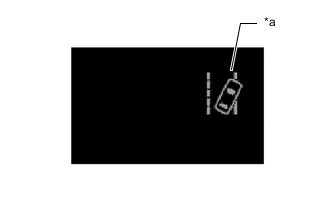

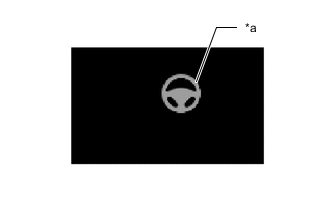

      *a	Steering Indicator Light

      Turn the ON/OFF switch of the steering pad switch assembly (lane departure alert main switch) to on.

   3. When the vehicle deviates from its lane and steering assist is performed, the steering indicator light in the multi-information display illuminates.

4. Lane departure alert system operation display

   System Control Status Display

   Operation Condition	Multi-information Display*1

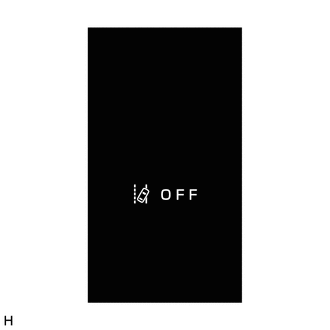

   Steering pad switch assembly (lane departure alert main switch) off

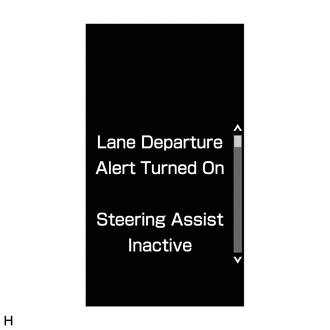

   Steering Assist off Steering pad switch assembly (lane departure alert main switch) off→on Lane markers not recognized Tech Tips The warning buzzer sensitivity can be changed and steering assist can be turned off/on from the customize setting on the multi-information display.

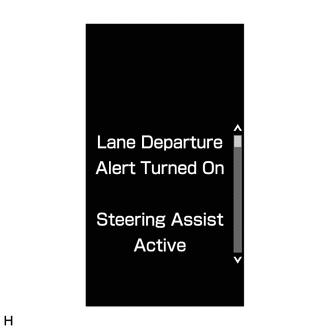

   Steering Assist on Steering pad switch assembly (lane departure alert main switch) off→on Lane markers not recognized Tech Tips The warning buzzer sensitivity can be changed and steering assist can be turned off/on from the customize setting on the multi-information display.
   Steering pad switch assembly (lane departure alert main switch) on Lane markers not recognized

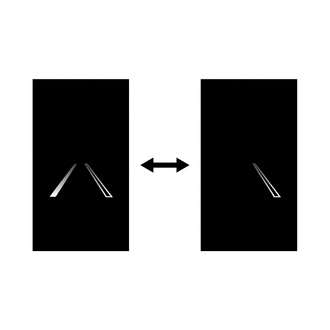

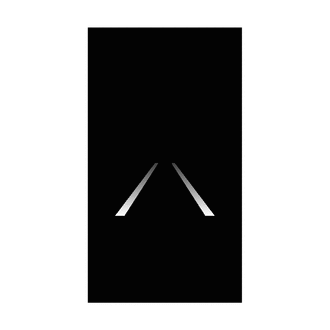

   	Narrow white lines display.*2
   Steering pad switch assembly (lane departure alert main switch) on Lane departure monitoring is being performed

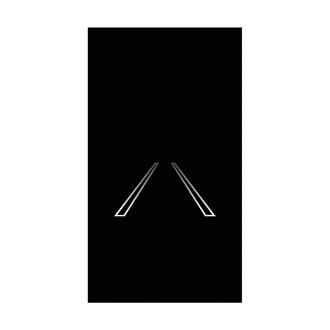

   	Wide white lines display.*2
   Steering Assist off Steering pad switch assembly (lane departure alert main switch) on Lane departure warning operating*3
   	White line display (Wide white line blinks on deviation side, narrow white line illuminates on other side)*2

   Tech Tips

   *1: The multi-information display only displays the lane departure alert system related information.

   *2: The white lines display independently according to the detection condition.

   *3: A buzzer sounds intermittently while the lane departure warning or steering assist is operating.

   Warning Display

   Conditions during Display		Multi-information Display*1
   Camera high temperature detected	When system started after being parked in hot weather, etc.
   		Master warning light illuminates
   		Buzzer sounds once (pong sound)

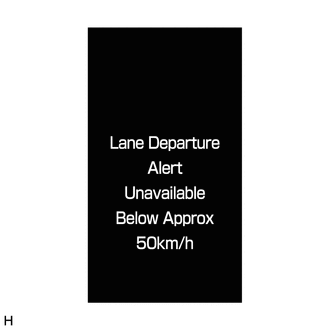

   Vehicle is being driven at speed of approximately 50 km/h (31 mph) or less	When the steering pad switch assembly (lane departure alert main switch) is on and the vehicle speed drops to below approximately 50 km/h (31 mph) from a vehicle speed of approximately 50 km/h (31 mph) or more*2 When the steering pad switch assembly (lane departure alert main switch) is turned on at a vehicle speed of below approximately 50 km/h (31 mph)
   		Master warning light not illuminated
   		Buzzer does not sound

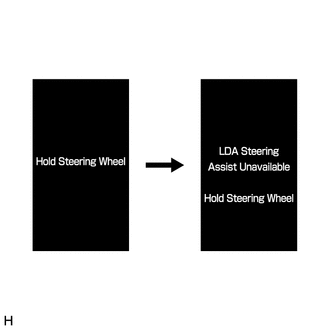

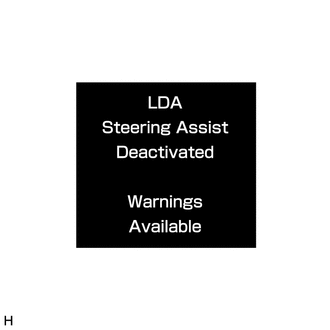

   Steering assist stop display due to hands off steering wheel being detected	When the steering pad switch assembly (lane departure alert main switch) is on (steering Assist on) and hands off steering wheel is detected
   		Master warning light illuminates
   		Buzzer sounds twice (two beeps)
   A lane departure alert malfunction is displayed	A lane departure alert system malfunction is detected
   		Master warning light illuminates
   		Buzzer sounds once (pong sound)
   Steering control stop display	When the power steering system is not operating properly due to a power steering system malfunction or drop in the power supply voltage
   		Master warning light illuminates
   		Buzzer sounds once (pong sound)

   Tech Tips

   *1: The multi-information display only displays the lane departure alert system related information.

   *2: Displays once while the power switch is on (IG)

LANE DEPARTURE ALERT DESCRIPTION

1. The lane departure alert system uses the lane departure warning camera's image of the road in front to detect lane markers on either side of the vehicle. If the system detects that the vehicle is about to move out of its lane, the system uses the warning buzzer and multi-information display to warn the driver.

   However, in the following conditions, the lane departure alert system may not function normally.




   • When driving through an area with no lane markers, such as a tollbooth, a crossing or before a ticket checkpoint

   • When driving on a sharp curve

   • When lane markers are extremely narrow or extremely wide

   • When the vehicle leans to one side an unusual amount due to a heavy load or improper tire inflation pressure

   • When the following distance between your vehicle and the vehicle ahead is extremely short

   • When the lane markers are yellow (These may be more difficult for the system to recognize compared to white markers.)

   • When the lane markers are broken, Botts' dots (raised pavement markers) or stones

   • When the lane markers are on a curb etc.

   • When lane markers are obscured or partially obscured by sand, dirt, etc.

   • When there are shadows on the road running parallel with lane markers, or if a shadow covers the lane markers

   • When driving on a particularly bright road surface, such as concrete

   • When driving on a road surface that is bright due to reflected light

   • When driving in a location where the light level changes rapidly, such as the entrance to or exit from a tunnel

   • When sunlight or the headlights of oncoming vehicles are shining directly into the camera lens

   • When driving on roads that are branching or merging

   • When driving on a road surface that is wet due to rain, previous rainfall, standing water, etc.

   • When the vehicle experiences strong up-and-down motion such as when driving on an extremely rough road or on a seam in the pavement

   • When headlight brightness at nighttime is reduced due to dirt on the lenses, or when the headlights are misaligned

   • When driving on winding roads or roads that are uneven

   • When driving on rough or unpaved roads

SYSTEM OPERATION

1. Lane departure warning function:

   The lane departure warning function operates when the lane departure alert main switch is on, the vehicle speed is between 50 km/h (31 mph) and 180 km/h (112 mph), and lane markers on the road surface are detected. With the departure warning function operating, if the vehicle is about to move out of the lane and this is detected by the lane departure warning camera, the system uses the warning buzzer and the multi-information display to warn the driver.

   Tech Tips

   This function only provides suggestions for lane departure avoidance. This function does not automatically move the vehicle back into the lane.




   1. If any of the following conditions are met while the lane departure alert system is operating, system operation will be interrupted.

      Lane Departure Warning Function Operation Interruption Condition	Lane Departure Warning Function Operation Return Condition
      When turn signal light switch is operated	When turn signal light switch is turned off
      When lane departure warning camera cannot detect lane markers	When lane departure warning camera can detect lane markers
      After lane departure warning has been issued	When the vehicle moves back into its lane, or a few seconds have passed since warning was issued

   2. If any of the following conditions are met while the lane departure alert system is operating, system operation will be suspended.

      Lane Departure Warning Function Operation Suspension Condition	Lane Departure Warning Function Operation Restart Condition
      When lane departure alert main switch is turned off	When lane departure alert main switch is turned on
      When system operation is interrupted	When the system returns to normal
      When the system is malfunctioning	When the power switch is turned on (IG), normal system operation is confirmed

   3.

      *a	Multi-information Display

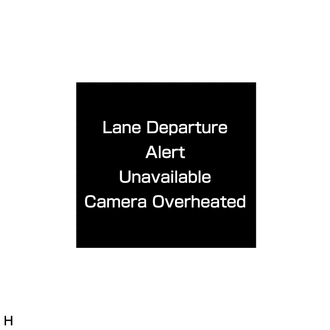

      If the following condition is met, the lane departure warning camera turns off the lane departure alert indicator, displays "Lane Departure Alert Unavailable Camera Overheated" on the multi-information display, and temporarily suspends lane departure alert system operation.




      • A high lane departure warning camera temperature is detected.

   4.

      *a	Multi-information Display

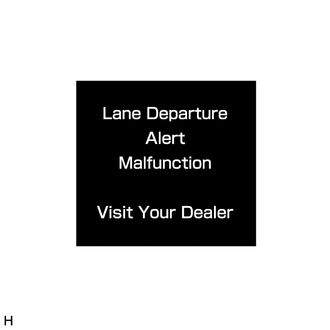

      If the following condition is met, the lane departure warning camera turns off the lane departure alert indicator, displays "Lane Departure Alert Malfunction Visit Your Dealer" on the multi-information display, and suspends lane departure alert system operation.




      • Lane departure alert system is malfunctioning
