LANE DEPARTURE ALERT SYSTEM(w/ Steering Control) PARTS LOCATION

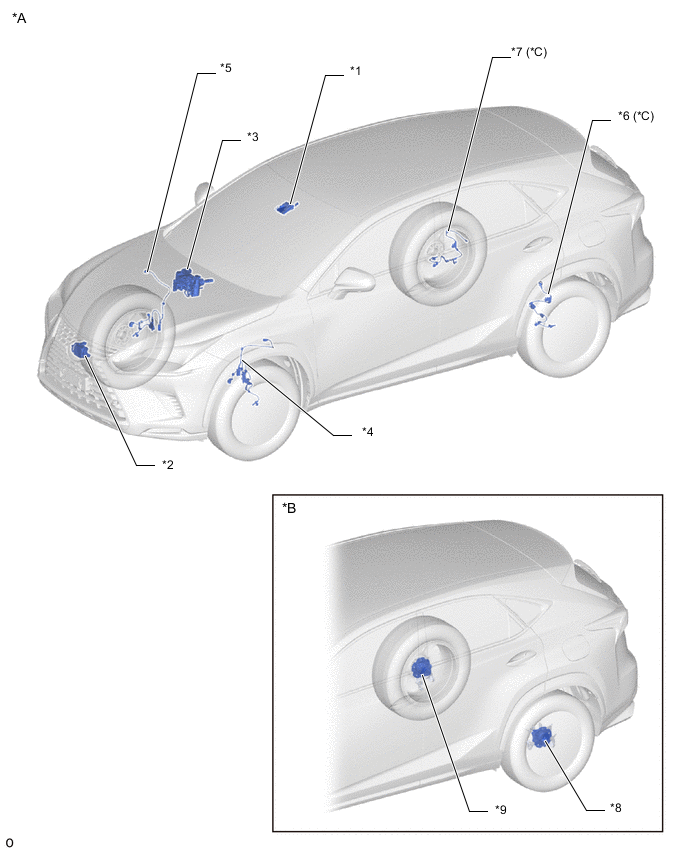

ILLUSTRATION
| *A | for LHD | *B | for 2WD |
| *C | for AWD | - | - |
| *1 | FORWARD RECOGNITION CAMERA | *2 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY |
| *3 | SKID CONTROL ECU (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY) | *4 | FRONT SPEED SENSOR LH |
| *5 | FRONT SPEED SENSOR RH | *6 | REAR SPEED SENSOR LH |
| *7 | REAR SPEED SENSOR RH | *8 | REAR AXLE HUB AND BEARING ASSEMBLY LH - REAR SPEED SENSOR ROTOR LH |
| *9 | REAR AXLE HUB AND BEARING ASSEMBLY RH - REAR SPEED SENSOR ROTOR RH |
- | - |

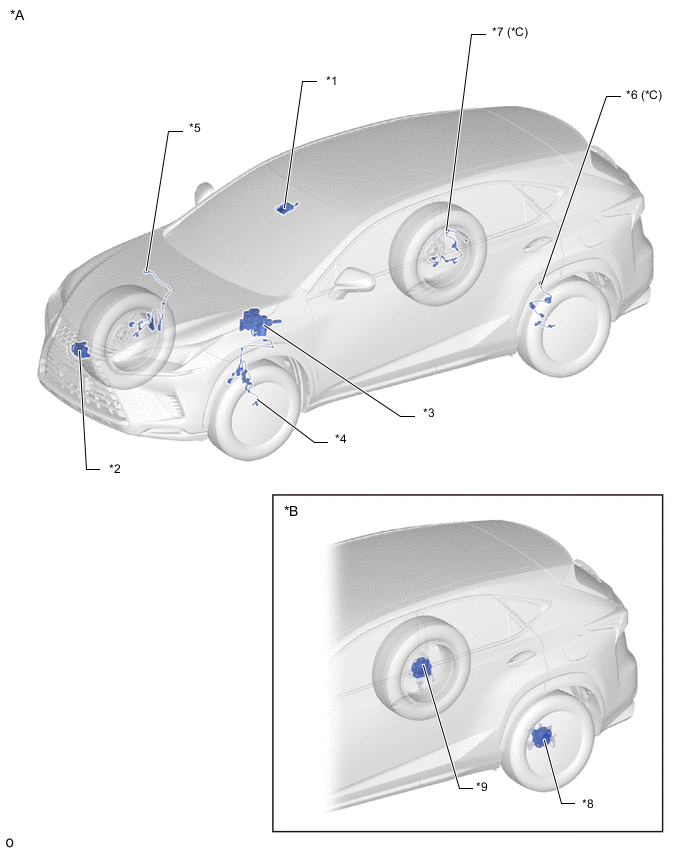

ILLUSTRATION
| *A | for RHD | *B | for 2WD |
| *C | for AWD | - | - |
| *1 | FORWARD RECOGNITION CAMERA | *2 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY |
| *3 | SKID CONTROL ECU (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY) | *4 | FRONT SPEED SENSOR LH |
| *5 | FRONT SPEED SENSOR RH | *6 | REAR SPEED SENSOR LH |
| *7 | REAR SPEED SENSOR RH | *8 | REAR AXLE HUB AND BEARING ASSEMBLY LH - REAR SPEED SENSOR ROTOR LH |
| *9 | REAR AXLE HUB AND BEARING ASSEMBLY RH - REAR SPEED SENSOR ROTOR RH |
- | - |

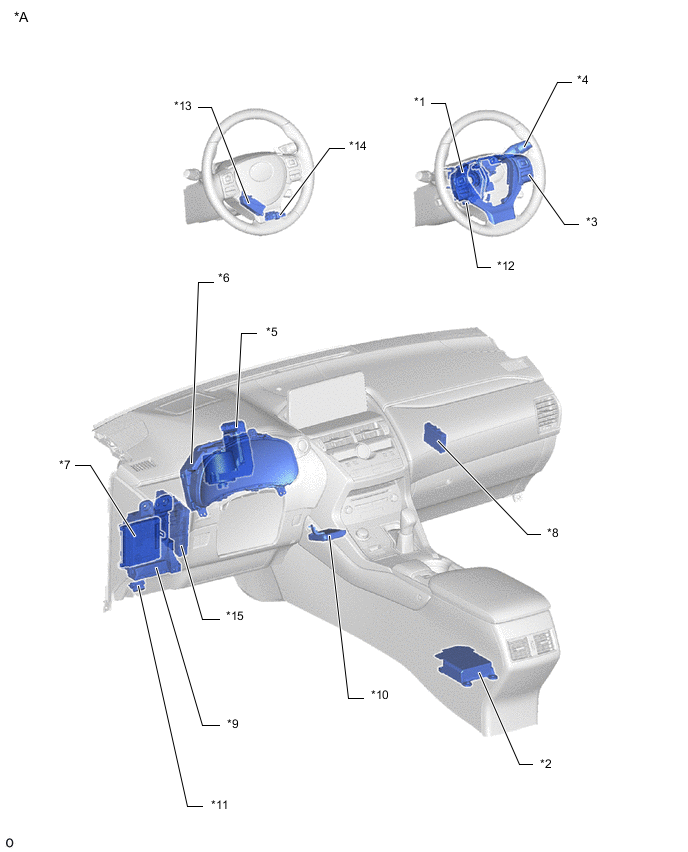

ILLUSTRATION
| *A | for LHD | - | - |
| *1 | SPIRAL CABLE SUB-ASSEMBLY | *2 | YAW RATE SENSOR (AIRBAG ECU ASSEMBLY) |
| *3 | STEERING PAD SWITCH ASSEMBLY - LANE DEPARTURE ALERT MAIN SWITCH - FUNCTION SWITCH (CUSTOMIZE SWITCH) |
*4 | HEADLIGHT DIMMER SWITCH ASSEMBLY - TURN SIGNAL SWITCH |
| *5 | POWER STEERING ECU ASSEMBLY | *6 | COMBINATION METER ASSEMBLY |
| *7 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *8 | CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU) |
| *9 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG NO. 2 FUSE |
*10 | DRIVING SUPPORT ECU ASSEMBLY |
| *11 | DLC3 | *12 | STEERING SENSOR |
| *13 | STEERING VIBRATION ECU | *14 | STEERING VIBRATION MOTOR |
| *15 | HYBRID VEHICLE CONTROL ECU ASSEMBLY | - | - |

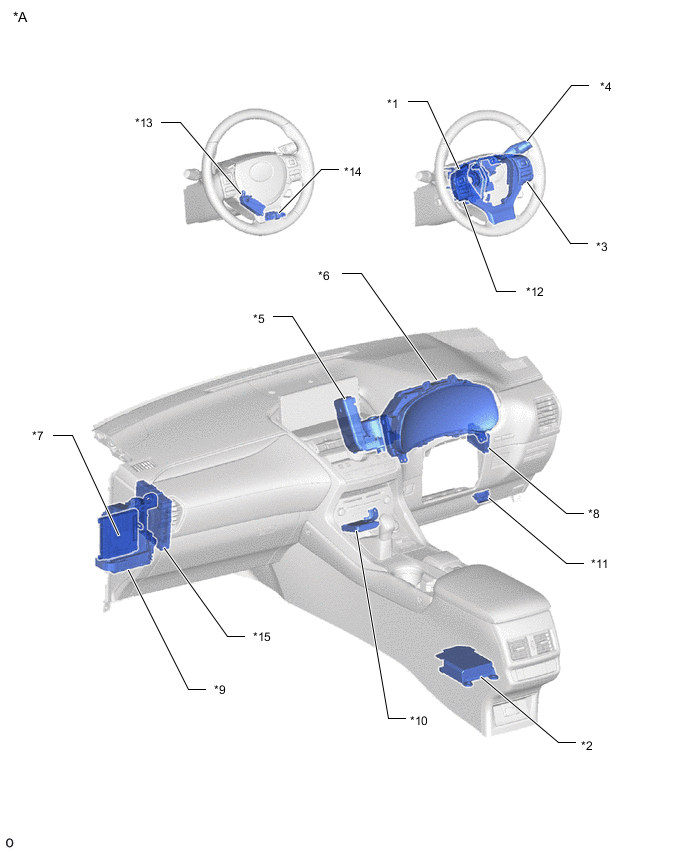

ILLUSTRATION
| *A | for RHD | - | - |
| *1 | SPIRAL CABLE SUB-ASSEMBLY | *2 | YAW RATE SENSOR (AIRBAG ECU ASSEMBLY) |
| *3 | STEERING PAD SWITCH ASSEMBLY - LANE DEPARTURE ALERT MAIN SWITCH - FUNCTION SWITCH (CUSTOMIZE SWITCH) |
*4 | HEADLIGHT DIMMER SWITCH ASSEMBLY - TURN SIGNAL SWITCH |
| *5 | POWER STEERING ECU ASSEMBLY | *6 | COMBINATION METER ASSEMBLY |
| *7 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *8 | CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU) |
| *9 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG NO. 2 FUSE |
*10 | DRIVING SUPPORT ECU ASSEMBLY |
| *11 | DLC3 | *12 | STEERING SENSOR |
| *13 | STEERING VIBRATION ECU | *14 | STEERING VIBRATION MOTOR |
| *15 | HYBRID VEHICLE CONTROL ECU ASSEMBLY | - | - |
