WATER PUMP REMOVAL

PROCEDURE

1. DRAIN ENGINE COOLANT

   Click here

2. REMOVE FAN AND GENERATOR V BELT

   Click here

3. REMOVE ENGINE WATER PUMP ASSEMBLY




   1.

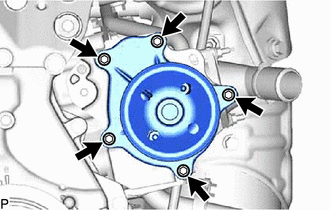

      Remove the 5 bolts, engine water pump assembly and gasket.
