WATER PUMP COMPONENTS

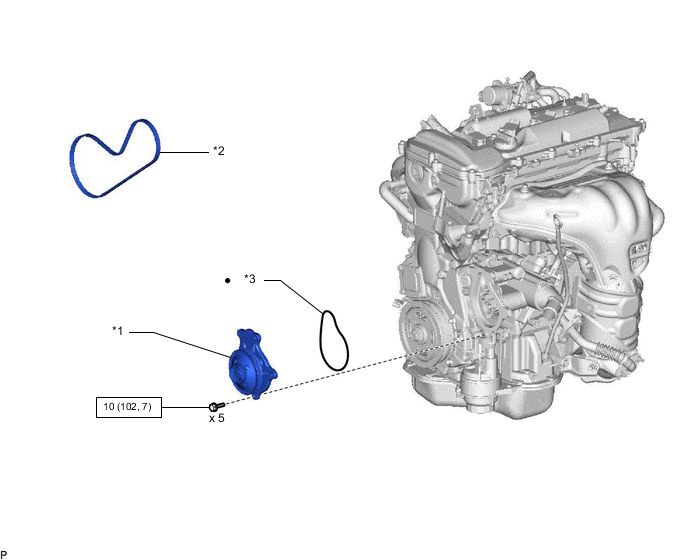

ILLUSTRATION
| *1 | ENGINE WATER PUMP ASSEMBLY | *2 | FAN AND GENERATOR V BELT |
| *3 | GASKET | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
ILLUSTRATION
| *1 | ENGINE WATER PUMP ASSEMBLY | *2 | FAN AND GENERATOR V BELT |
| *3 | GASKET | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
