ELECTRIC PARKING BRAKE ECU COMPONENTS

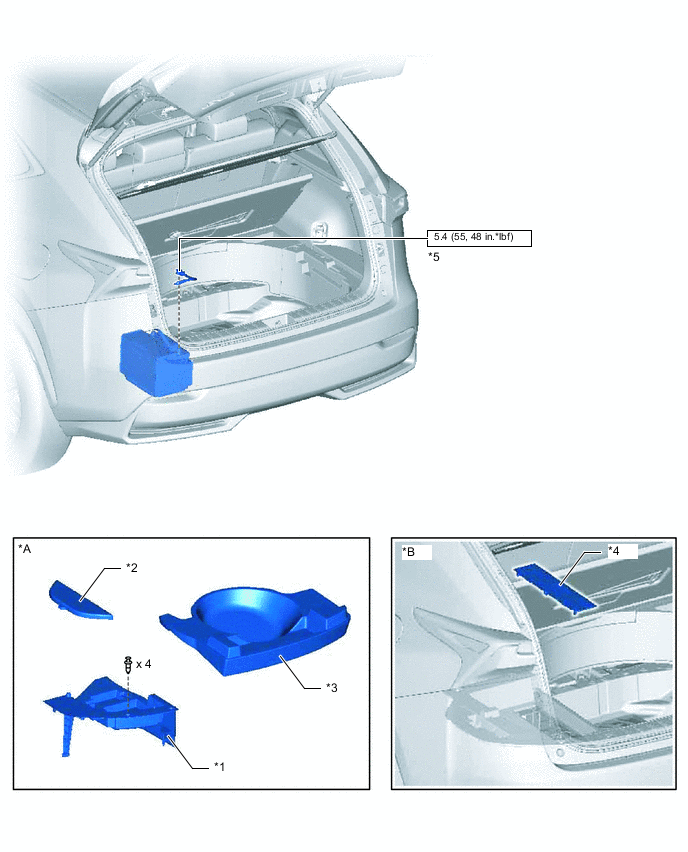

ILLUSTRATION
| *A | w/ Spare Tire | *B | w/o Spare Tire |
| *1 | DECK FLOOR BOX LH | *2 | NO. 3 DECK BOARD SUB-ASSEMBLY |
| *3 | REAR DECK FLOOR BOX | *4 | BATTERY SERVICE COVER |
| *5 | NEGATIVE AUXILIARY BATTERY TERMINAL | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
| *1 | FUEL PUMP CONTROL ECU ASSEMBLY | *2 | PARKING BRAKE ECU ASSEMBLY |
| *3 | CONNECTOR | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
