ELECTRIC PARKING BRAKE ECU COMPONENTS
ILLUSTRATION
| *A | w/ Spare Tire | *B | for Compact Spare Tire |
| *C | for Full Size Spare Tire | - | - |
| *1 | DECK FLOOR BOX LH | *2 | NO. 3 DECK BOARD SUB-ASSEMBLY |
| *3 | REAR DECK FLOOR BOX | *4 | NEGATIVE AUXILIARY BATTERY TERMINAL |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
| *A | w/o Spare Tire | - | - |
| *1 | BATTERY SERVICE COVER | *2 | NEGATIVE AUXILIARY BATTERY TERMINAL |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

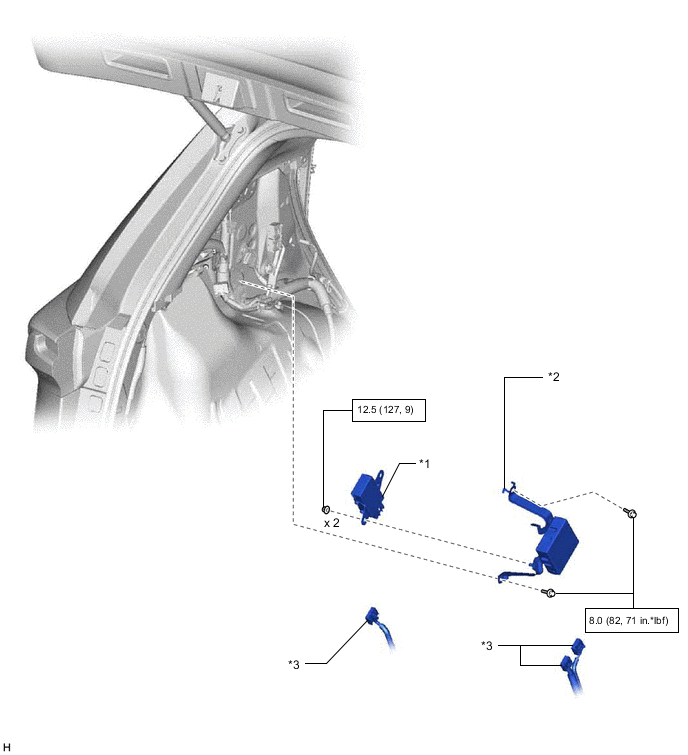

ILLUSTRATION
| *1 | FUEL PUMP CONTROL ECU ASSEMBLY | *2 | PARKING BRAKE ECU ASSEMBLY |
| *3 | CONNECTOR | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
