CYLINDER BLOCK COMPONENTS

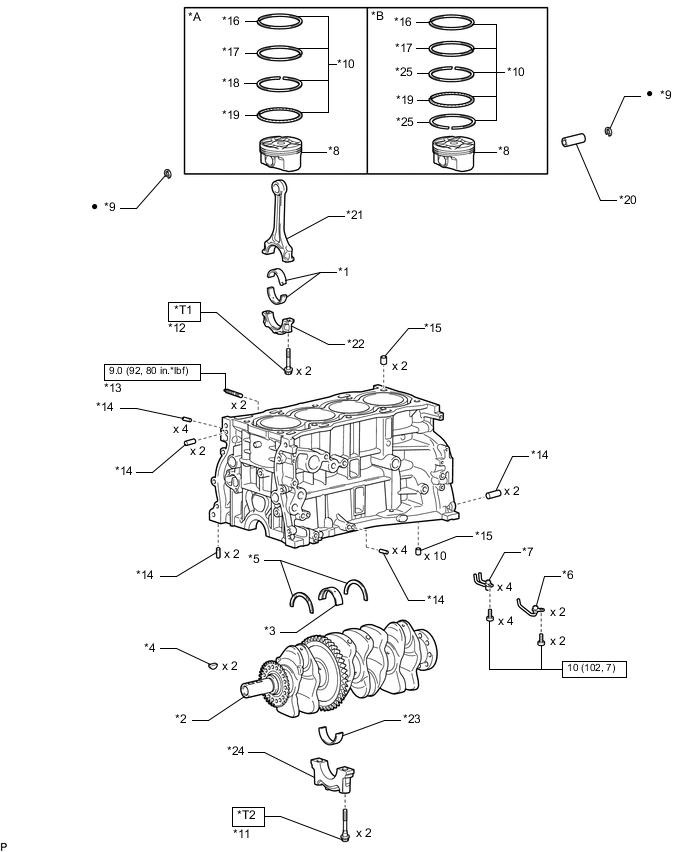

ILLUSTRATION
| *A | Type A | *B | Type B |
| *1 | CONNECTING ROD BEARING | *2 | CRANKSHAFT |
| *3 | CRANKSHAFT BEARING | *4 | CRANKSHAFT PULLEY KEY |
| *5 | CRANKSHAFT THRUST WASHER | *6 | NO. 1 OIL NOZZLE SUB-ASSEMBLY |
| *7 | NO. 2 OIL NOZZLE SUB-ASSEMBLY | *8 | PISTON |
| *9 | PISTON PIN HOLE SNAP RING | *10 | PISTON RING SET |
| *11 | CRANKSHAFT BEARING CAP SET BOLT | *12 | CONNECTING ROD BOLT |
| *13 | STUD BOLT | *14 | STRAIGHT PIN |
| *15 | RING PIN | *16 | NO. 1 COMPRESSION RING |
| *17 | NO. 2 COMPRESSION RING | *18 | OIL RING |
| *19 | OIL RING EXPANDER | *20 | PISTON PIN |
| *21 | CONNECTING ROD | *22 | CONNECTING ROD CAP |
| *23 | NO. 2 CRANKSHAFT BEARING | *24 | CRANKSHAFT BEARING CAP |
| *25 | OIL RING SIDE RAIL | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
| *T1 | 1st: 40 (408, 30) 2nd: Turn 90° |
*T2 | 1st: 20 (204, 15) 2nd: 40 (408, 30) 3rd: Turn 90° |
