BATTERY BLOWER COMPONENTS
ILLUSTRATION

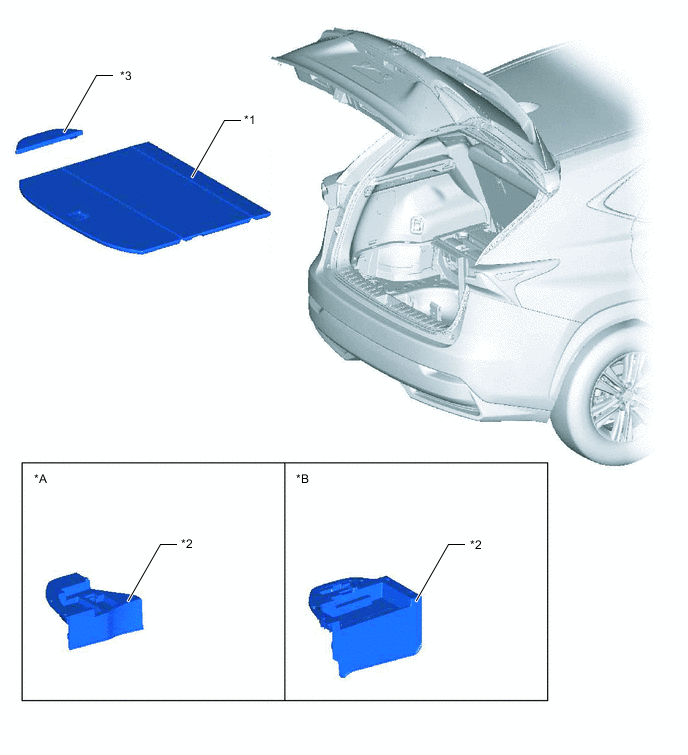

| *1 | TONNEAU COVER ASSEMBLY | - | - |
ILLUSTRATION
| *A | w/ Spare Tire | *B | w/o Spare Tire |
| *1 | DECK BOARD ASSEMBLY | *2 | DECK FLOOR BOX LH |
| *3 | NO. 3 DECK BOARD SUB-ASSEMBLY | - | - |
ILLUSTRATION
| *1 | NEGATIVE AUXILIARY BATTERY TERMINAL | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
| *1 | BATTERY SERVICE HOLE COVER | *2 | HYBRID BATTERY SERVICE PLUG COVER |
| *3 | SERVICE PLUG GRIP | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
| *A | for 2WD | - | - |
| *1 | CONNECTOR COVER ASSEMBLY | *2 | INVERTER RESERVE TANK ASSEMBLY |
| *3 | NO. 1 INVERTER RESERVE TANK BRACKET | *4 | WIRE HARNESS |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

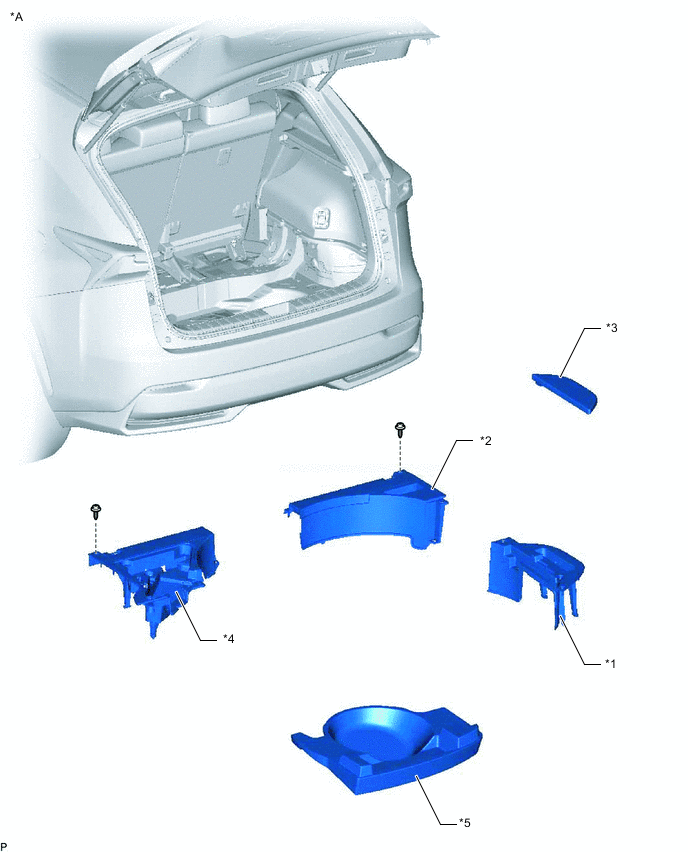

ILLUSTRATION
| *A | w/ Spare Tire | - | - |
| *1 | DECK FLOOR BOX RH | *2 | NO. 1 TOOL BOX SUB-ASSEMBLY |
| *3 | NO. 2 DECK BOARD SUB-ASSEMBLY | *4 | NO. 2 TOOL BOX SUB-ASSEMBLY |
| *5 | REAR DECK FLOOR BOX | - | - |
ILLUSTRATION
| *A | w/o Spare Tire | - | - |
| *1 | DECK FLOOR BOX RH | *2 | NO. 1 TOOL BOX SUB-ASSEMBLY |
| *3 | NO. 2 DECK BOARD SUB-ASSEMBLY | *4 | NO. 2 TOOL BOX SUB-ASSEMBLY |
ILLUSTRATION
| *1 | BATTERY COOLING BLOWER ASSEMBLY LH | *2 | BATTERY COOLING BLOWER ASSEMBLY RH |
| *3 | NO. 1 HYBRID BATTERY INTAKE DUCT | *4 | NO. 2 HYBRID BATTERY INTAKE DUCT |
| *5 | NO. 3 HYBRID BATTERY EXHAUST DUCT | *6 | NO. 4 HYBRID BATTERY EXHAUST DUCT |
| *7 | BATTERY COOLING BLOWER HARNESS | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
