КОРПУС ДИФФЕРЕНЦИАЛА РАЗБОРКА

PROCEDURE


  1. REMOVE FRONT DIFFERENTIAL RING GEAR

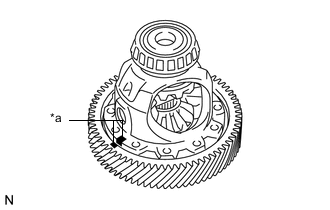

    1. A002A4ZC09
      *a Matchmark

      Put matchmarks on the front differential ring gear and differential case.

    2. B00400R

      Remove the 12 bolts from the front differential ring gear.

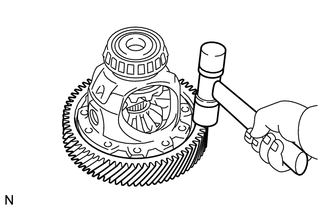

    3. A018IGF

      Using a plastic hammer, remove the front differential ring gear from the differential case.

  2. REMOVE FR0NT DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING

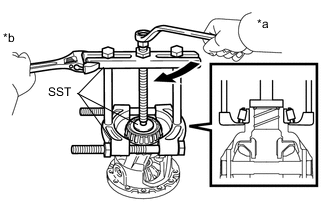

    1. A002C0SC01
      *a Turn
      *b Hold

      Using SST, remove the front differential case front tapered roller bearing from the differential case.

      SST
      09950-00020
      09950-00030
      09950-60010   ( 09951-00480 )
    2. B00409EN02

      Using SST, remove the front differential case front tapered roller bearing outer race and shim from the transaxle housing.

      SST
      09308-00010

  3. REMOVE FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING

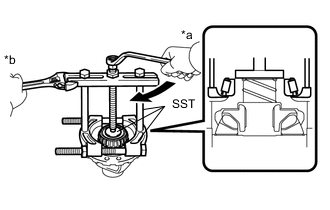

    1. A0027P9C01
      *a Turn
      *b Hold

      Using SST, remove the front differential case rear tapered roller bearing from the differential case.

      SST
      09950-00020
      09950-00030
      09950-60010   ( 09951-00480 )
    2. A002C5VN03

      Using SST, remove the front differential case rear tapered roller bearing outer race from the transaxle case sub-assembly.

      SST
      09308-00010

  4. REMOVE FRONT DIFFERENTIAL PINION SHAFT STRAIGHT PIN


    1. A018KRD

      Using a 3 mm pin punch and a hammer, remove the front differential pinion shaft straight pin from the differential case.

      Tech Tips

      Before removing the front differential pinion shaft straight pin, release the staked part of the differential case with a pin punch.

  5. REMOVE FRONT NO. 1 DIFFERENTIAL PINION SHAFT


    1. A01GF1F

      Remove the front No. 1 differential pinion shaft from the differential case.

  6. REMOVE DIFFERENTIAL SIDE GEAR


    1. B003ZXOC01
      *1 Front Differential Pinion
      *2 Front Differential Pinion Thrust Washer
      *3 Differential Side Gear
      *4 Front No. 1 Differential Side Gear Thrust Washer

      Remove the 2 front differential pinions, 2 front differential pinion thrust washers, 2 differential side gears and 2 front No. 1 differential side gear thrust washers from the differential case.

  7. REMOVE FRONT DRIVE SHAFT OIL SEAL RH


    1. B003ZFAN02

      Using SST, remove the front drive shaft oil seal RH from the transaxle housing.

      SST
      09308-00010

  8. REMOVE FRONT DRIVE SHAFT OIL SEAL LH


    1. B003Z08N02

      Using SST, remove the front drive shaft oil seal LH from the transaxle case sub-assembly.

      SST
      09308-00010
