BACK DOOR SUPPORT DISPOSAL

PROCEDURE


  1. DISPOSE OF BACK DOOR STAY ASSEMBLY

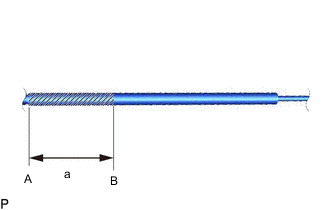

    1. A018HLZN01

      Secure the back door stay assembly horizontally in a vise with the piston rod pulled out.

    2. Wearing safety glasses, gradually cut a part between A and B shown in the illustration using a metal saw to release the gas.

      Specification
      Area Measurement
      a 130 mm ( 5.12 in.)

      Note

      Although the gas inside the back door stay assembly is colorless, odorless and harmless, metal debris may scatter. Therefore, cover the back door stay assembly with a piece of cloth or other material.
