HOOD COMPONENTS

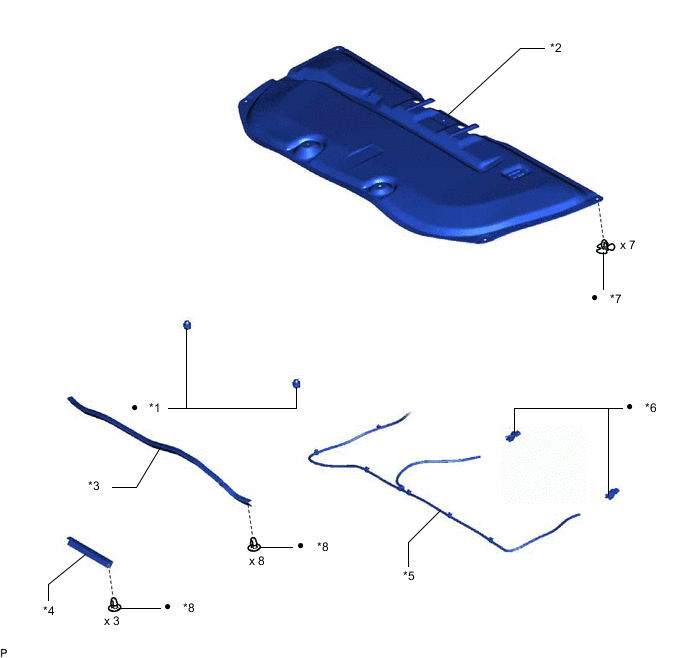

ILLUSTRATION
| *1 | HOOD CUSHION | *2 | HOOD INSULATOR |
| *3 | HOOD TO RADIATOR SUPPORT SEAL | *4 | HOOD TO RADIATOR SUPPORT SEAL |
| *5 | WASHER HOSE ASSEMBLY | *6 | WASHER NOZZLE SUB-ASSEMBLY |
| *7 | HOOD INSULATOR CLIP | *8 | HOOD TO RADIATOR SUPPORT SEAL CLIP |
| ● | Non-reusable part | - | - |
