BACK DOOR REASSEMBLY

PROCEDURE


  1. PRECAUTION (for Glass Hatch Type)

    Click here

  2. INSTALL POWER BACK DOOR UNIT SET ASSEMBLY LH (w/ Power Back Door)

    Click here

  3. INSTALL POWER BACK DOOR UNIT SET ASSEMBLY RH (w/ Power Back Door)

    Tech Tips

    Use the same procedure as for the LH side.

  4. INSTALL BACK DOOR DAMPER STAY LOWER BRACKET LH (w/o Power Back Door)

    Click here

  5. INSTALL BACK DOOR DAMPER STAY LOWER BRACKET RH (w/o Power Back Door)

    Tech Tips

    Use the same procedure as for the LH side.

  6. INSTALL BACK DOOR STAY ASSEMBLY LH (w/o Power Back Door)

    Click here

  7. INSTALL BACK DOOR STAY ASSEMBLY RH (w/o Power Back Door)

    Tech Tips

    Use the same procedure as for the LH side.

  8. INSTALL DOOR DUST PROOF SEAL


    1. A002B66

      Engage the guide and 2 claws to install the door dust proof seal.

      Tech Tips

      Use the same procedure for the RH side and LH side.

  9. INSTALL CUSHION (for Glass Hatch Type)


    1. A0029CK

      Engage the 4 claws to install 4 new cushions.

  10. INSTALL BACK DOOR LOWER STOPPER CUSHION


    1. A018K4L

      Engage the 2 claws to install 2 new back door lower stopper cushions.

  11. INSTALL LICENSE PLATE LIGHT ASSEMBLY (for LH Side)

    Click here

  12. INSTALL LICENSE PLATE LIGHT ASSEMBLY (for RH Side)

    Tech Tips

    Use the same procedure as for the LH side.

  13. INSTALL TELEVISION CAMERA ASSEMBLY (w/ Rear View Monitor System)

    Click here

  14. INSTALL BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY

    Click here

  15. INSTALL REAR LIGHT ASSEMBLY LH

    Click here

  16. INSTALL REAR LIGHT ASSEMBLY RH

    Tech Tips

    Use the same procedure as for the LH side.

  17. INSTALL NO. 2 BACK DOOR WEATHERSTRIP


    1. A0027Y1C01
      *a Joint
      *b Alignment mark (Pink)
      *c Alignment mark (Yellow)

      Install a new No. 2 back door weatherstrip so that the alignment marks, joint and areas indicated by the arrows, are aligned as shown in the illustration.

      Note

      After installation, check that the corners fit correctly.

  18. INSTALL BACK DOOR GLASS

    Click here

  19. INSTALL BACK WINDOW STAY BOLT (for Glass Hatch Type)

    for LH Side: Click here

    for RH Side:

    Tech Tips

    Use the same procedure as for the LH side.

  20. INSTALL BACK WINDOW STAY ASSEMBLY LH (for Glass Hatch Type)

    Click here

  21. INSTALL BACK WINDOW STAY ASSEMBLY RH (for Glass Hatch Type)

    Tech Tips

    Use the same procedure as for the LH side.

  22. INSTALL REAR SPOILER SUB-ASSEMBLY

    Click here

  23. INSTALL REAR SIDE SPOILER SUB-ASSEMBLY LH

    Click here

  24. INSTALL REAR SIDE SPOILER SUB-ASSEMBLY RH

    Tech Tips

    Use the same procedure as for the LH side.

  25. INSTALL BACK WINDOW LOCK ASSEMBLY (for Glass Hatch Type)

    Click here

  26. INSTALL BACK DOOR GLASS GUIDE BRACKET SUB-ASSEMBLY (for Fixed Glass Type)


    1. A00280YN01

      Engage the clip.

    2. Install the back door glass guide bracket sub-assembly with the 4 bolts.

      Tech Tips

      Tighten the bolts in the order shown in the illustration.

      Torque:
      8.0 N*m  { 82 kgf*cm, 71 in.*lbf }
    3. A002ANU

      Engage the 2 clamps to connect the wire harness.

    4. Connect the 2 connectors.

  27. INSTALL REAR WIPER MOTOR GROMMET (for Fixed Glass Type)

    Click here

  28. INSTALL REAR WIPER MOTOR ASSEMBLY (for Fixed Glass Type)

    Click here

  29. INSTALL REAR WIPER MOTOR ASSEMBLY (for Glass Hatch Type)

    Click here

  30. INSTALL REAR WIPER LINK PIVOT WITH WASHER PACKING (for Glass Hatch Type)

    Click here

  31. INSTALL REAR WIPER LINK CAP (for Glass Hatch Type)

    Click here

  32. INSTALL REAR WIPER ARM AND BLADE ASSEMBLY

    Click here

  33. INSTALL REAR WIPER ARM HEAD CAP

    Click here

  34. INSTALL REAR WIPER SHAFT COVER (for Glass Hatch Type)

    Click here

  35. INSTALL BACK DOOR LOWER STOPPER LH


    1. A002AWZ

      Install the back door lower stopper LH with the 2 bolts.

      Torque:
      7.5 N*m  { 76 kgf*cm, 66 in.*lbf }

  36. INSTALL BACK DOOR LOWER STOPPER RH

    Tech Tips

    Use the same procedure as for the LH side.

  37. INSTALL MULTIPLEX NETWORK DOOR ECU (w/ Power Back Door)

    Click here

  38. INSTALL BACK DOOR WEIGHT (w/ Weight)


    1. A0028Y8N01

      Engage the guide.

    2. Install the back door weight with the 3 bolts.

      Tech Tips

      Tighten the bolts in the order shown in the illustration.

      Torque:
      12.5 N*m  { 127 kgf*cm, 9 ft.*lbf }

  39. INSTALL POWER BACK DOOR SENSOR ASSEMBLY LH (w/ Power Back Door)

    Click here

  40. INSTALL POWER BACK DOOR SENSOR ASSEMBLY RH (w/ Power Back Door)

    Tech Tips

    Use the same procedure as for the LH side.

  41. INSTALL REAR NO. 2 SPEAKER ASSEMBLY (w/ Back Door Speaker)

    Click here

  42. INSTALL REAR NO. 3 SPEAKER ASSEMBLY (w/ Back Door Speaker)

    Click here

  43. INSTALL BACK DOOR CONTROL SWITCH (w/ Power Back Door)

    Click here

  44. INSTALL BACK DOOR LOCK ASSEMBLY (w/o Power Back Door)

    Click here

  45. INSTALL BACK DOOR LOCK ASSEMBLY (w/ Power Back Door)

    Click here

  46. INSTALL DOOR PULL HANDLE

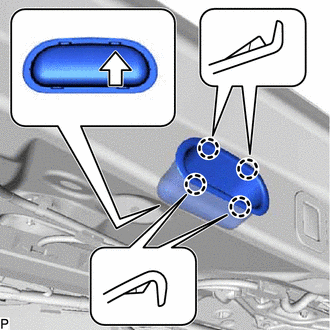

    1. A018J8B

      Engage the 4 claws to install the door pull handle.

      Tech Tips

      With the back door fully open, install the door pull handle so that the arrow on the backside of door pull handle points up.

  47. INSTALL BACK DOOR LOCK COVER (for Fixed Glass Type)


    1. A002BQY

      Engage the 2 guides and 3 claws to install the back door lock cover.

  48. INSTALL BACK DOOR TRIM PANEL ASSEMBLY

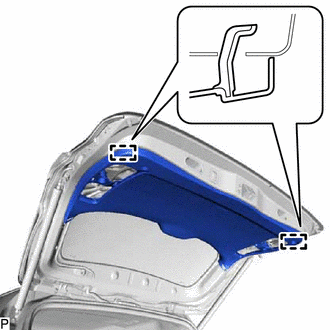

    1. A018HRN

      Engage the 2 guides.

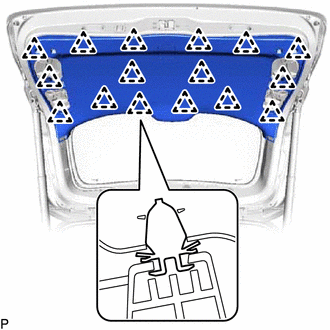

    2. A018J9B

      Engage the 16 clips to install the back door trim panel assembly.

  49. INSTALL NO. 2 BACK DOOR SERVICE HOLE COVER


    1. A002AVL

      Engage the 2 guides and 4 clips to install the No. 2 back door service hole cover.

  50. INSTALL NO. 1 BACK DOOR SERVICE HOLE COVER


    1. A0029VB

      Engage the 2 guides and 4 clips to install the No. 1 back door service hole cover.

  51. INSTALL BACK DOOR LOCK COVER (for Glass Hatch Type)


    1. A002BRU

      Engage the 2 guides and 3 claws to install the back door lock cover.

  52. INSTALL BACK DOOR TRIM COVER LH


    1. A002CG2

      Engage the guide, 2 claws and 2 clips to install the back door trim cover LH.

  53. INSTALL BACK DOOR TRIM COVER RH

    Tech Tips

    Use the same procedure as for the LH side.

  54. INSTALL BACK WINDOW UPPER TRIM PANEL


    1. A002B3N

      Engage the 4 clips and 4 claws to install the back window upper trim panel.

  55. INITIALIZE POWER BACK DOOR SYSTEM (w/ Power Back Door)

    Click here

  56. INSPECT POWER BACK DOOR SYSTEM (w/ Power Back Door)

    Click here

  57. INSPECT BACK DOOR CLOSER SYSTEM (w/ Power Back Door)

    Click here
