BLOWER MOTOR CONTROLLER COMPONENTS
ILLUSTRATION
| *1 | DECK BOARD ASSEMBLY | *2 | DECK SIDE TRIM BOX LH |
| *3 | NO. 3 DECK BOARD SUB-ASSEMBLY | *4 | REAR DECK FLOOR BOX |
| *5 | REAR FLOOR FINISH PLATE | *6 | TONNEAU COVER ASSEMBLY |
ILLUSTRATION
| *A | w/ Rear Automatic Air Conditioning System | - | - |
| *1 | COOLER (NO. 2 ROOM TEMP. SENSOR) THERMISTOR | *2 | DECK TRIM POCKET COVER |
| *3 | DECK TRIM SIDE PANEL ASSEMBLY RH | *4 | FRONT DECK SIDE TRIM COVER RH |
| *5 | NO. 1 DECK SIDE TRIM COVER | *6 | NO. 1 LUGGAGE COMPARTMENT TRIM HOOK |
| *7 | NO. 1 ROOM LIGHT ASSEMBLY | *8 | REAR DOOR OPENING TRIM WEATHERSTRIP RH |
| *9 | REAR DOOR SCUFF PLATE RH | *10 | REAR NO. 1 SEAT OUTER BELT ASSEMBLY RH |
| *11 | REAR NO. 2 SEAT OUTER BELT ASSEMBLY RH | *12 | REAR OUTER SEAT TRACK BRACKET COVER RH |
| *13 | ROPE HOOK | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

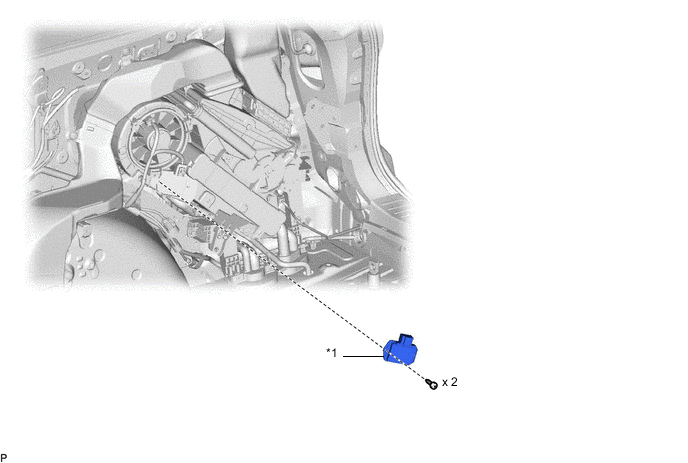

ILLUSTRATION
| *1 | BLOWER MOTOR CONTROL | - | - |
