REFRIGERANT LINE COMPONENTS

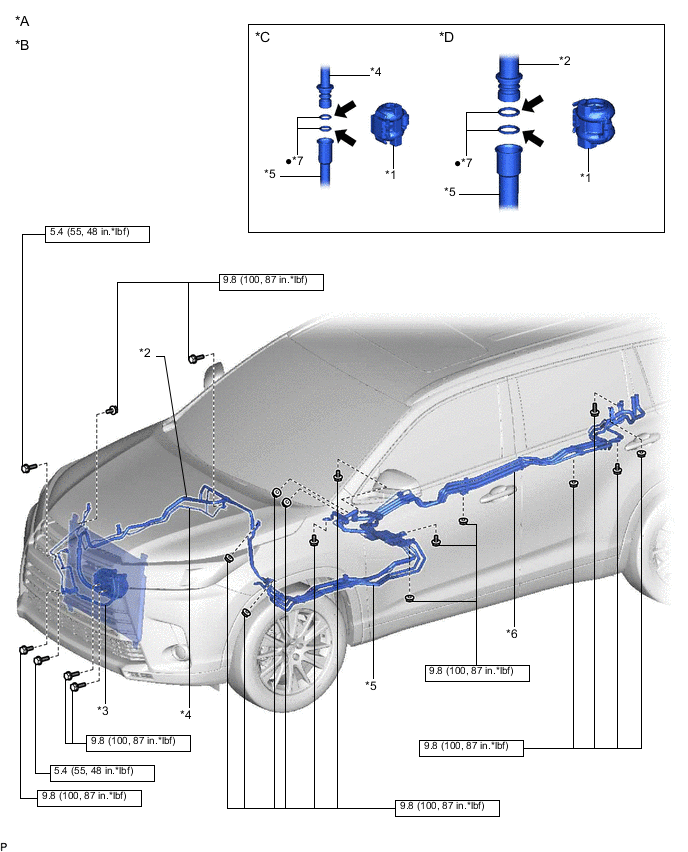

ILLUSTRATION
| *A | for 1AR-FE | *B | for High Pressure |
| *C | for Low Pressure | - | - |
| *1 | PIPING CLAMP | *2 | SUCTION HOSE SUB-ASSEMBLY |
| *3 | DISCHARGE HOSE SUB-ASSEMBLY | *4 | AIR CONDITIONER TUBE AND ACCESSORY ASSEMBLY |
| *5 | NO. 1 AIR CONDITIONING ACCESSORY ASSEMBLY | *6 | NO. 2 AIR CONDITIONING ACCESSORY ASSEMBLY |
| *7 | O-RING | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
 |
Compressor oil ND-OIL 8 or equivalent | - | - |

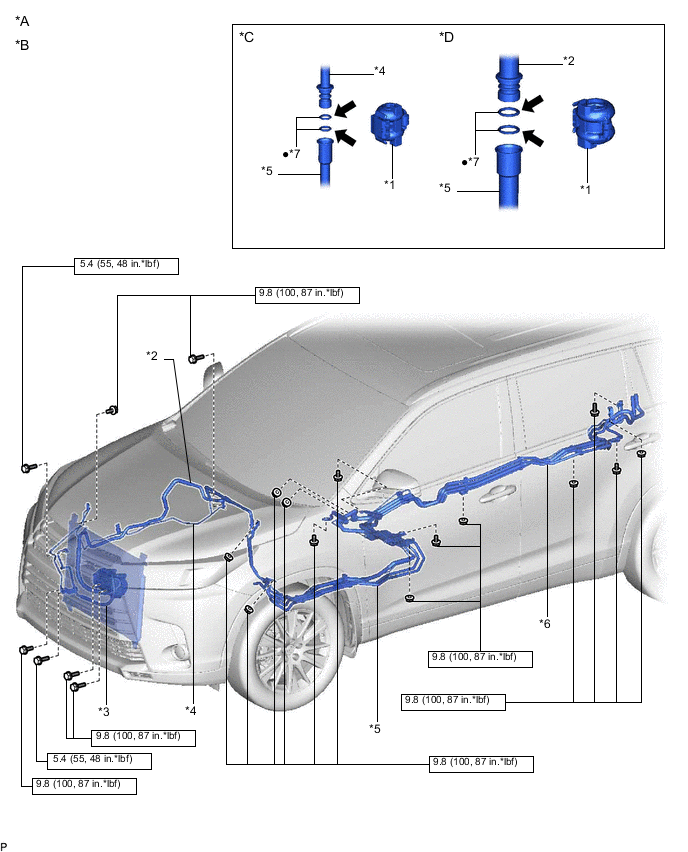

ILLUSTRATION
| *A | for 2GR-FKS | *B | for LHD |
| *C | for High Pressure | *D | for Low Pressure |
| *1 | PIPING CLAMP | *2 | SUCTION HOSE SUB-ASSEMBLY |
| *3 | DISCHARGE HOSE SUB-ASSEMBLY | *4 | AIR CONDITIONER TUBE AND ACCESSORY ASSEMBLY |
| *5 | NO. 1 AIR CONDITIONING ACCESSORY ASSEMBLY | *6 | NO. 2 AIR CONDITIONING ACCESSORY ASSEMBLY |
| *7 | O-RING | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
| |
Compressor oil ND-OIL 8 or equivalent | - | - |
ILLUSTRATION
| *A | for 2GR-FKS | *B | for RHD |
| *C | for High Pressure | *D | for Low Pressure |
| *1 | PIPING CLAMP | *2 | SUCTION HOSE SUB-ASSEMBLY |
| *3 | DISCHARGE HOSE SUB-ASSEMBLY | *4 | AIR CONDITIONER TUBE AND ACCESSORY ASSEMBLY |
| *5 | NO. 1 AIR CONDITIONING ACCESSORY ASSEMBLY | *6 | NO. 2 AIR CONDITIONING ACCESSORY ASSEMBLY |
| *7 | O-RING | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
| |
Compressor oil ND-OIL 8 or equivalent | - | - |
