SMART ENTRY AND START SYSTEM(for Entry Function) PARTS LOCATION
ILLUSTRATION
| *A | for LHD | - | - |
| *1 | BACK DOOR OPENER SWITCH ASSEMBLY | *2 | WIRELESS DOOR LOCK BUZZER |
| *3 | FRONT DOOR OUTSIDE HANDLE ASSEMBLY (for Driver Door) - ELECTRICAL KEY ANTENNA - LOCK SENSOR - UNLOCK SENSOR |
*4 | FRONT DOOR OUTSIDE HANDLE ASSEMBLY (for Front Passenger Door) - ELECTRICAL KEY ANTENNA - LOCK SENSOR - UNLOCK SENSOR |
| *5 | NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (FRONT FLOOR) | *6 | NO. 2 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (REAR FLOOR) |
| *7 | NO. 3 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (INSIDE LUGGAGE COMPARTMENT) | *8 | ELECTRICAL KEY ANTENNA (OUTSIDE LUGGAGE COMPARTMENT) |
| *9 | ELECTRICAL KEY AND TIRE PRESSURE MONITORING SYSTEM RECEIVER ASSEMBLY | *10 | LOCK SWITCH |
| *11 | OPEN SWITCH | - |

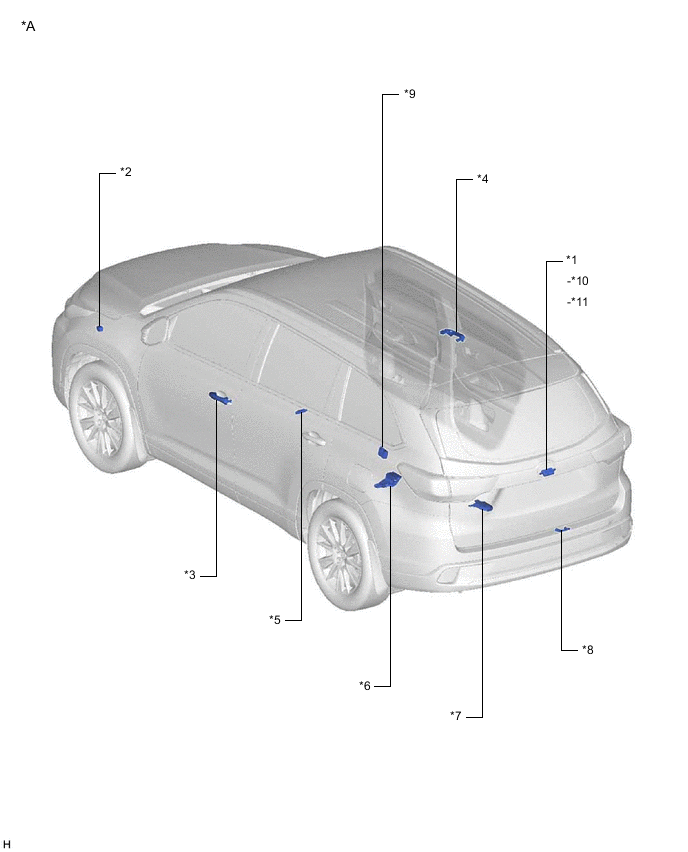

ILLUSTRATION
| *A | for RHD | - | - |
| *1 | BACK DOOR OPENER SWITCH ASSEMBLY | *2 | WIRELESS DOOR LOCK BUZZER |
| *3 | FRONT DOOR OUTSIDE HANDLE ASSEMBLY (for Driver Door) - ELECTRICAL KEY ANTENNA - LOCK SENSOR - UNLOCK SENSOR |
*4 | FRONT DOOR OUTSIDE HANDLE ASSEMBLY (for Front Passenger Door) - ELECTRICAL KEY ANTENNA - LOCK SENSOR - UNLOCK SENSOR |
| *5 | NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (FRONT FLOOR) | *6 | NO. 2 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (REAR FLOOR) |
| *7 | NO. 3 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (INSIDE LUGGAGE COMPARTMENT) | *8 | ELECTRICAL KEY ANTENNA (OUTSIDE LUGGAGE COMPARTMENT) |
| *9 | SMART DOOR CONTROL RECEIVER ASSEMBLY | *10 | LOCK SWITCH |
| *11 | OPEN SWITCH | - |

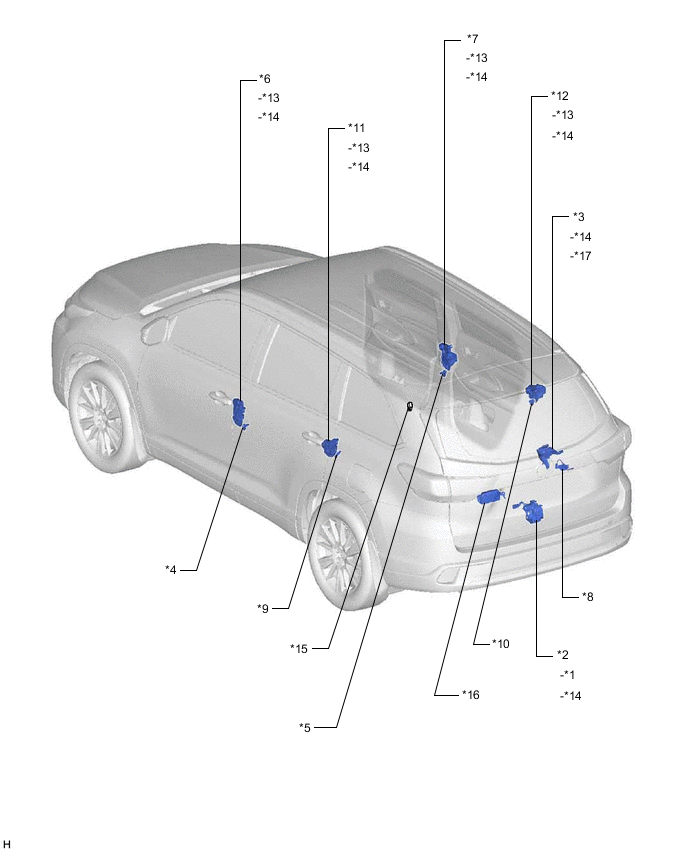

ILLUSTRATION
| *1 | BACK DOOR COURTESY SWITCH | *2 | BACK DOOR LOCK ASSEMBLY |
| *3 | BACK WINDOW LOCK ASSEMBLY | *4 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (for LH) |
| *5 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (for RH) | *6 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY LH |
| *7 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY RH | *8 | GLASS HATCH OPENER SWITCH ASSEMBLY |
| *9 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (for LH) | *10 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (for RH) |
| *11 | REAR DOOR LOCK WITH MOTOR ASSEMBLY LH | *12 | REAR DOOR LOCK WITH MOTOR ASSEMBLY RH |
| *13 | UNLOCK DETECTION SWITCH | *14 | DOOR LOCK MOTOR |
| *15 | G/H NO. 1 RELAY | *16 | MULTIPLEX NETWORK DOOR ECU |
| *17 | BACK DOOR GLASS COURTESY LIGHT SWITCH | *18 | - |

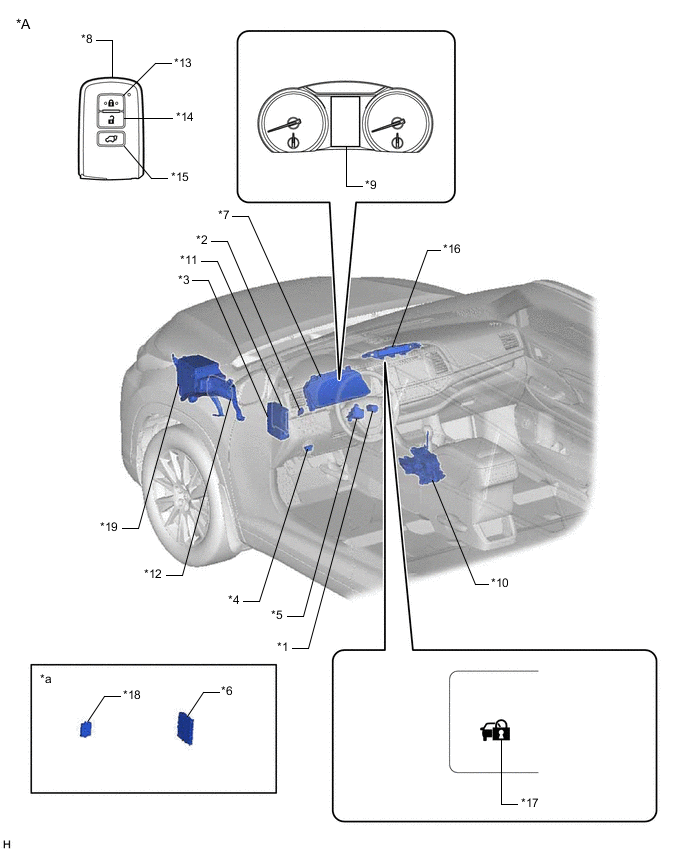

ILLUSTRATION
| *A | for LHD | - | - |
| *1 | ENGINE SWITCH | *2 | STOP LIGHT SWITCH ASSEMBLY |
| *3 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - AM2 FUSE - ECU-ACC FUSE - IG1 NO. 3 FUSE - DOOR BACK FUSE - ALL DR LOCK RELAY - D-DR UNLOCK RELAY - L/D-DR UNLOCK RELAY |
*4 | DLC3 |
| *5 | STEERING LOCK ECU (STEERING LOCK ACTUATOR ASSEMBLY) | *6 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *7 | COMBINATION METER ASSEMBLY | *8 | ELECTRICAL KEY TRANSMITTER SUB-ASSEMBLY |
| *9 | MULTI-INFORMATION DISPLAY - KEY WARNING LIGHT |
*10 | TRANSMISSION FLOOR SHIFT ASSEMBLY |
| *11 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *12 | ECM |
| *13 | LOCK SWITCH | *14 | UNLOCK SWITCH |
| *15 | POWER BACK DOOR SWITCH | *16 | SECURITY INDICATOR LIGHT (CLOCK ASSEMBLY) |
| *17 | SECURITY INDICATOR LIGHT | *18 | ID CODE BOX (IMMOBILISER CODE ECU) (w/ Rear Seat Heater) |
| *19 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - MPX-B NO. 1 FUSE |
- | - |
| *a | Refer to Service Bulletin for installation position of the parts. | - | - |

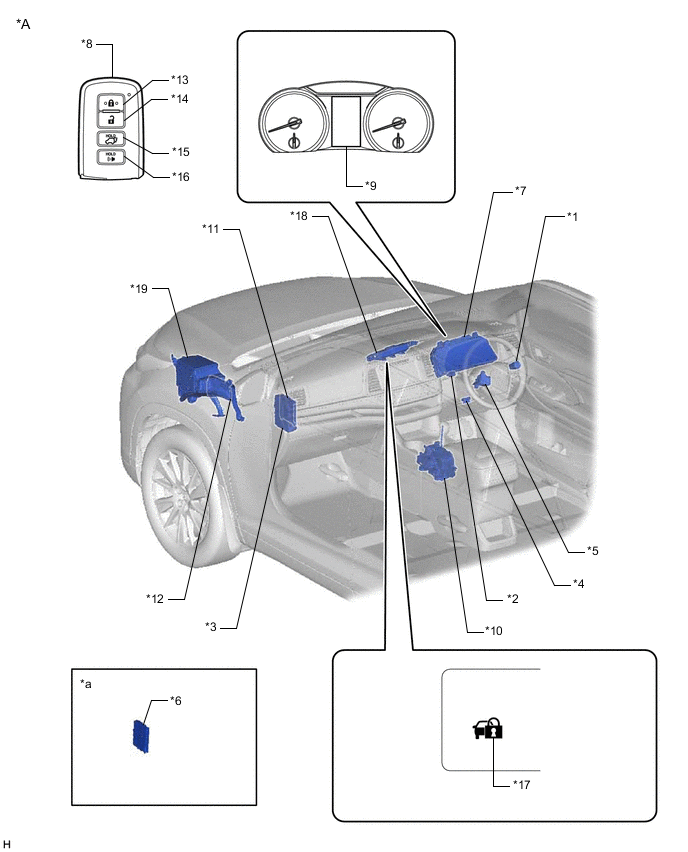

ILLUSTRATION
| *A | for RHD | - | - |
| *1 | ENGINE SWITCH | *2 | STOP LIGHT SWITCH ASSEMBLY |
| *3 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - AM2 FUSE - IG1 NO. 3 FUSE - DOOR BACK FUSE - ALL DR LOCK RELAY - D-DR UNLOCK RELAY - L/D-DR UNLOCK RELAY |
*4 | DLC3 |
| *5 | STEERING LOCK ECU (STEERING LOCK ACTUATOR ASSEMBLY) | *6 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *7 | COMBINATION METER ASSEMBLY | *8 | ELECTRICAL KEY TRANSMITTER SUB-ASSEMBLY |
| *9 | MULTI-INFORMATION DISPLAY - KEY WARNING LIGHT |
*10 | TRANSMISSION FLOOR SHIFT ASSEMBLY |
| *11 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *12 | ECM |
| *13 | LOCK SWITCH | *14 | UNLOCK SWITCH |
| *15 | POWER BACK DOOR SWITCH | *16 | PANIC SWITCH (w/ Panic Function) |
| *17 | SECURITY INDICATOR LIGHT | *18 | SECURITY INDICATOR LIGHT (CLOCK ASSEMBLY) |
| *19 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - MPX-B NO. 1 FUSE |
- | - |
| *a | Refer to Service Bulletin for installation position of the part. | - | - |
