WIRELESS DOOR LOCK CONTROL SYSTEM(w/ Smart Entry and Start System) PARTS LOCATION
ILLUSTRATION
| *A | for LHD | - | - |
| *1 | HEADLIGHT ASSEMBLY RH - TURN SIGNAL LIGHT RH |
*2 | HEADLIGHT ASSEMBLY LH - TURN SIGNAL LIGHT LH |
| *3 | SIDE TURN SIGNAL LIGHT ASSEMBLY RH | *4 | SIDE TURN SIGNAL LIGHT ASSEMBLY LH |
| *5 | REAR COMBINATION LIGHT ASSEMBLY RH - TURN SIGNAL LIGHT RH |
*6 | REAR COMBINATION LIGHT ASSEMBLY LH - TURN SIGNAL LIGHT LH |
| *7 | WIRELESS DOOR LOCK BUZZER | - | - |
ILLUSTRATION
| *A | for RHD | - | - |
| *1 | HEADLIGHT ASSEMBLY RH - TURN SIGNAL LIGHT RH |
*2 | HEADLIGHT ASSEMBLY LH - TURN SIGNAL LIGHT LH |
| *3 | SIDE TURN SIGNAL LIGHT ASSEMBLY RH | *4 | SIDE TURN SIGNAL LIGHT ASSEMBLY LH |
| *5 | REAR COMBINATION LIGHT ASSEMBLY RH - TURN SIGNAL LIGHT RH |
*6 | REAR COMBINATION LIGHT ASSEMBLY LH - TURN SIGNAL LIGHT LH |
| *7 | WIRELESS DOOR LOCK BUZZER | - | - |

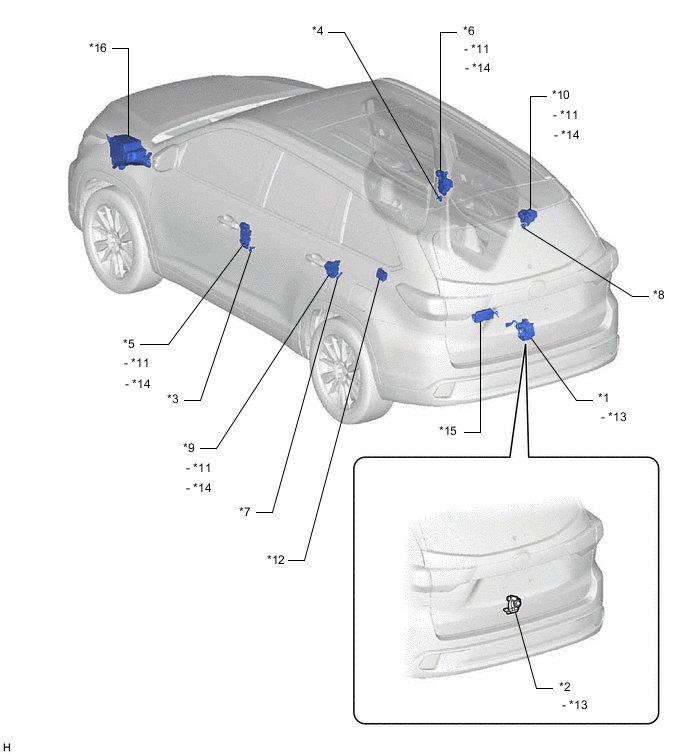

ILLUSTRATION
| *1 | BACK DOOR LOCK ASSEMBLY (w/ Power Back Door System) | *2 | BACK DOOR LOCK ASSEMBLY (w/o Power Back Door System) |
| *3 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (for LH) | *4 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (for RH) |
| *5 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY LH | *6 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY RH |
| *7 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (for LH) | *8 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (for RH) |
| *9 | REAR DOOR LOCK WITH MOTOR ASSEMBLY LH | *10 | REAR DOOR LOCK WITH MOTOR ASSEMBLY RH |
| *11 | DOOR UNLOCK DETECTION SWITCH | *12 | SMART DOOR CONTROL RECEIVER ASSEMBLY |
| *13 | BACK DOOR COURTESY SWITCH | *14 | DOOR LOCK MOTOR |
| *15 | MULTIPLEX NETWORK DOOR ECU | *16 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - MPX-B NO. 1 FUSE |
ILLUSTRATION
| *A | for LHD | - | - |
| *1 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *2 | COMBINATION METER ASSEMBLY |
| *3 | DLC3 | *4 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *5 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-ACC FUSE - AM2 FUSE - IG1 NO. 3 FUSE - ALL DR LOCK RELAY - D-DR UNLOCK RELAY - L/D-DR UNLOCK RELAY |
- | - |
| *a | Refer to Service Bulletin for the installation position of the part. | - | - |
ILLUSTRATION
| *A | for RHD | - | - |
| *1 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *2 | COMBINATION METER ASSEMBLY |
| *3 | DLC3 | *4 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *5 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-ACC FUSE - AM2 FUSE - IG1 NO. 3 FUSE - ALL DR LOCK RELAY - D-DR UNLOCK RELAY - L/D-DR UNLOCK RELAY - DOOR BACK RELAY (w/o Power Back Door System) |
- | - |
| *a | Refer to Service Bulletin for the installation position of the part. | - | - |
