STEREO JACK ADAPTER ASSEMBLY(for Front Side) REMOVAL

PROCEDURE

1. REMOVE CONSOLE BOX ASSEMBLY

   Click here

2. REMOVE FRONT DOOR SCUFF PLATE LH

   Click here

3. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH

   Click here

4. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP LH

   Click here

5. REMOVE INSTRUMENT PANEL FINISH PANEL END LH

   Click here

6. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

   Click here

7. DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

   Click here

8. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

   Click here

9. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL WITH AIR CONDITIONING CONTROL ASSEMBLY

   Click here

10. REMOVE NO. 2 SWITCH HOLE BASE

    Click here

11. REMOVE FRONT NO. 2 CONSOLE BOX INSERT

    Click here

12. REMOVE CONSOLE BOX INSERT

    Click here

13. REMOVE FRONT DOOR SCUFF PLATE RH

    Tech Tips

    Use the same procedure as for the LH side.

14. REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH

    Tech Tips

    Use the same procedure as for the LH side.

15. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP RH

    Tech Tips

    Use the same procedure as for the LH side.

16. REMOVE INSTRUMENT PANEL FINISH PANEL END RH

    Click here

17. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Click here

18. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY

    Click here

19. REMOVE INSTRUMENT CLUSTER FINISH PANEL ORNAMENT

    Click here

20. REMOVE CENTER LOWER INSTRUMENT PANEL FINISH PANEL

    Click here

21. REMOVE NO. 1 STEREO JACK ADAPTER ASSEMBLY

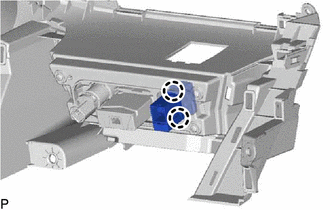

    1. for LHD:




       1.

          Disengage the 2 claws and remove the No. 1 stereo jack adapter assembly.

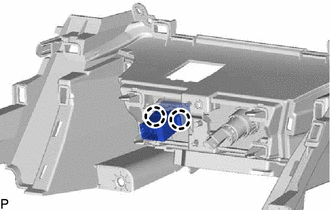

    2. for RHD:




       1.

          Disengage the 2 claws and remove the No. 1 stereo jack adapter assembly.
