AIR CONDITIONING SYSTEM(for Automatic Air Conditioning System) PARTS LOCATION

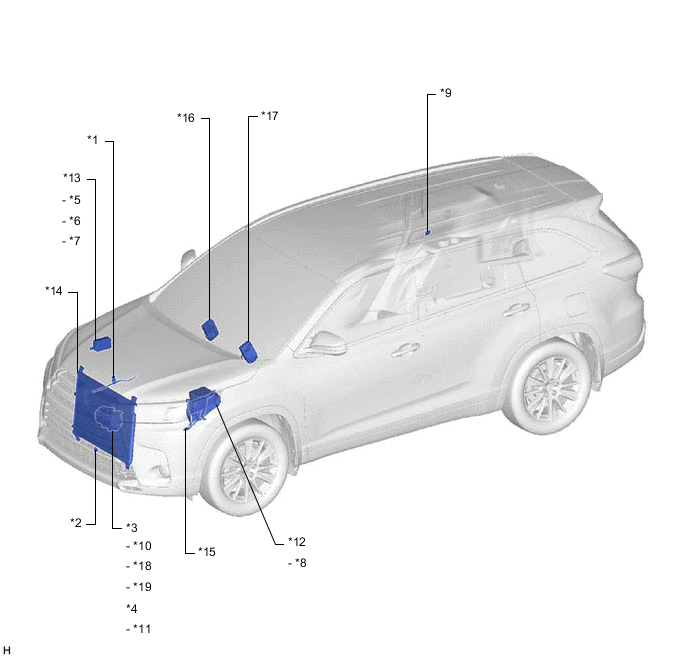

ILLUSTRATION
| *1 | AIR CONDITIONER TUBE AND ACCESSORY ASSEMBLY | *2 | THERMISTOR ASSEMBLY |
| *3 | COOLER COMPRESSOR ASSEMBLY (for 2GR-FKS) | *4 | COMPRESSOR ASSEMBLY WITH PULLEY (for 1AR-FE) |
| *5 | PTC HTR NO. 1 RELAY (w/ PTC Heater) | *6 | PTC HTR NO. 2 RELAY (w/ PTC Heater) |
| *7 | PTC HTR NO. 3 RELAY (w/ PTC Heater) | *8 | SEMICONDUCTOR PWR INTEGRATION ECU (for 2GR-FKS) |
| *9 | COOLER (NO. 2 ROOM TEMP. SENSOR) THERMISTOR | *10 | MAGNETIC CLUTCH ASSEMBLY (for 2GR-FKS) |
| *11 | COMPRESSOR SOLENOID (for 1AR-FE) | *12 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - PTC HTR NO. 1 FUSE (w/ PTC Heater) - PTC HTR NO. 2 FUSE (w/ PTC Heater) - PTC HTR NO. 3 FUSE (w/ PTC Heater) - A/C RR FUSE - ALT FUSE - HTR FUSE |
| *13 | NO. 2 ENGINE ROOM RELAY BLOCK ASSEMBLY (w/ PTC Heater) | *14 | COOLER CONDENSER ASSEMBLY |
| *15 | ECM | *16 | POWER STEERING ECU ASSEMBLY (for RHD) |
| *17 | POWER STEERING ECU ASSEMBLY (for LHD) | *18 | A/C LOCK SENSOR (for 2GR-FKS) |
| *19 | COMPRESSOR SOLENOID (for 2GR-FKS) | - | - |

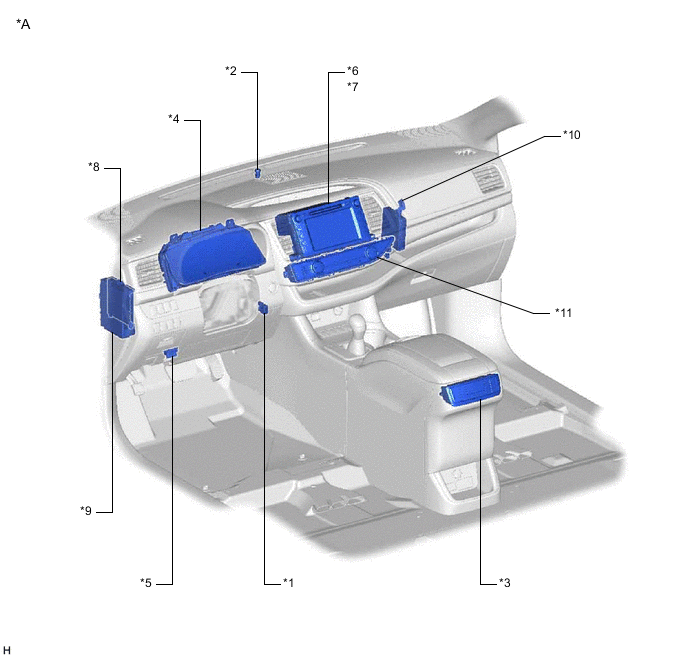

ILLUSTRATION
| *A | for LHD | - | - |
| *1 | COOLER (ROOM TEMP. SENSOR) THERMISTOR | *2 | AUTOMATIC LIGHT CONTROL SENSOR |
| *3 | NO. 2 AIR CONDITIONING CONTROL ASSEMBLY | *4 | COMBINATION METER ASSEMBLY |
| *5 | DLC3 | *6 | NAVIGATION RECEIVER ASSEMBLY (for Navigation Receiver Type) |
| *7 | RADIO AND DISPLAY RECEIVER ASSEMBLY (for Radio and Display Type) | *8 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *9 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - IG1 NO. 2 RELAY - IG1 NO. 3 RELAY - A/C FUSE - ECU-IG FUSE - IG1 NO. 3 FUSE |
*10 | AIR CONDITIONING AMPLIFIER ASSEMBLY |
| *11 | AIR CONDITIONING CONTROL ASSEMBLY | - | - |

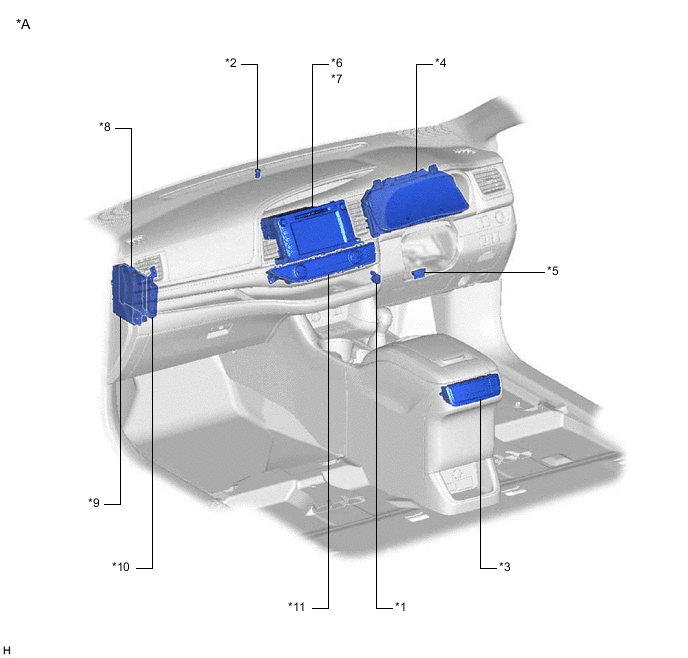

ILLUSTRATION
| *A | for RHD | - | - |
| *1 | COOLER (ROOM TEMP. SENSOR) THERMISTOR | *2 | AUTOMATIC LIGHT CONTROL SENSOR |
| *3 | NO. 2 AIR CONDITIONING CONTROL ASSEMBLY | *4 | COMBINATION METER ASSEMBLY |
| *5 | DLC3 | *6 | NAVIGATION RECEIVER ASSEMBLY (for Navigation Receiver Type) |
| *7 | RADIO AND DISPLAY RECEIVER ASSEMBLY (for Radio and Display Type) | *8 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *9 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - IG1 NO. 2 RELAY - IG1 NO. 3 RELAY - A/C FUSE - ECU-IG FUSE - IG1 NO. 3 FUSE |
*10 | AIR CONDITIONING AMPLIFIER ASSEMBLY |
| *11 | AIR CONDITIONING CONTROL ASSEMBLY | - | - |

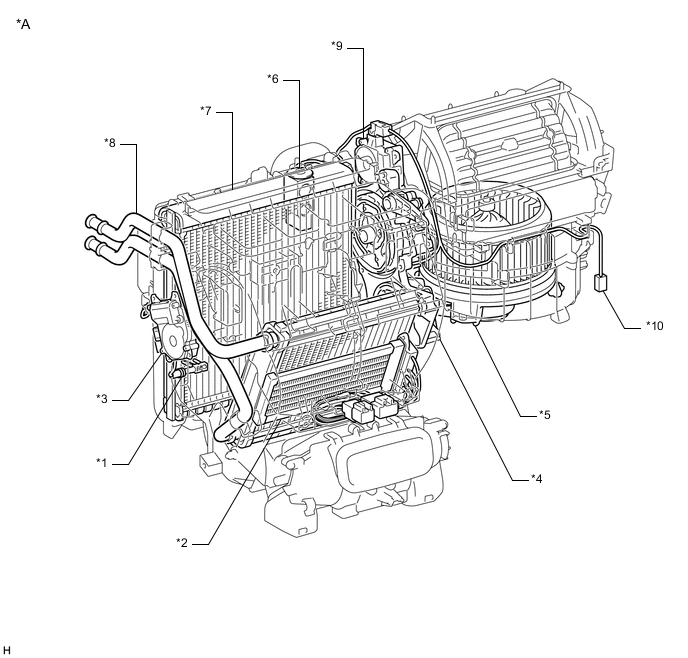

ILLUSTRATION
| *A | for LHD | - | - |
| *1 | NO. 1 COOLER THERMISTOR | *2 | QUICK HEATER ASSEMBLY |
| *3 | NO. 2 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY (Air Mix for Driver Side) | *4 | NO. 1 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY - (Air Mix for Front Passenger Side) - (Air Outlet) |
| *5 | BLOWER MOTOR WITH FAN SUB-ASSEMBLY | *6 | COOLER EXPANSION VALVE |
| *7 | NO. 1 COOLER EVAPORATOR SUB-ASSEMBLY | *8 | HEATER RADIATOR UNIT SUB-ASSEMBLY |
| *9 | BLOWER DAMPER SERVO SUB-ASSEMBLY (Air Inlet) | *10 | AIR CONDITIONING HARNESS ASSEMBLY |

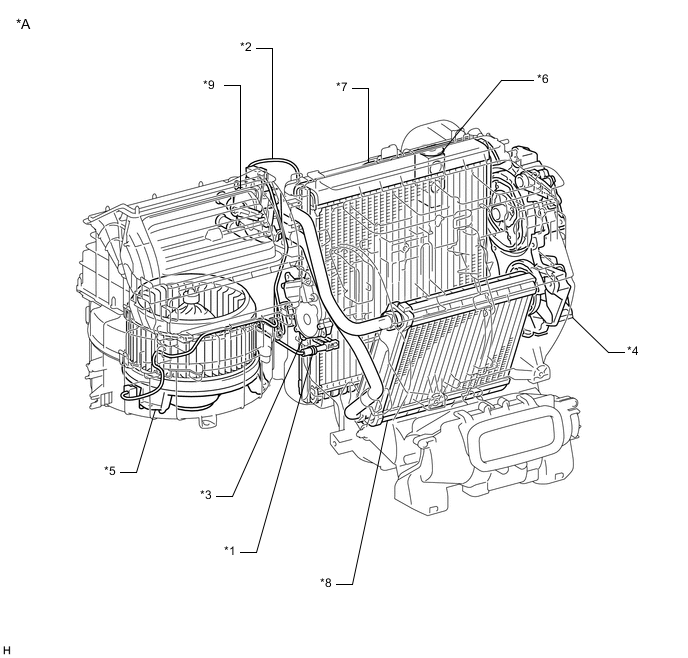

ILLUSTRATION
| *A | for RHD | - | - |
| *1 | NO. 1 COOLER THERMISTOR | *2 | AIR CONDITIONING HARNESS ASSEMBLY |
| *3 | NO. 2 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY (Air Mix for Front Passenger Side) | *4 | NO. 1 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY - (Air Mix for Driver Side) - (Air Outlet) |
| *5 | BLOWER MOTOR WITH FAN SUB-ASSEMBLY | *6 | COOLER EXPANSION VALVE |
| *7 | NO. 1 COOLER EVAPORATOR SUB-ASSEMBLY | *8 | HEATER RADIATOR UNIT SUB-ASSEMBLY |
| *9 | BLOWER DAMPER SERVO SUB-ASSEMBLY (Air Inlet) | - | - |

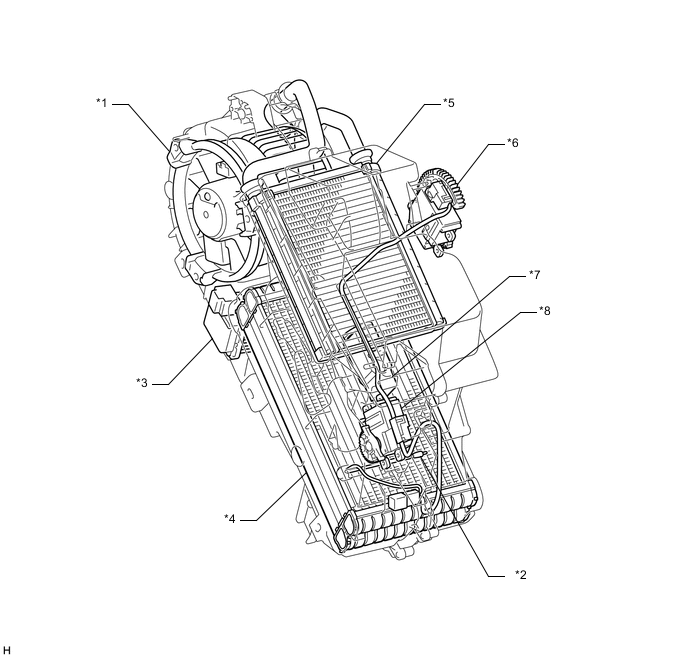

ILLUSTRATION
| *1 | REAR BLOWER MOTOR WITH FAN SUB-ASSEMBLY | *2 | NO. 2 AIR CONDITIONING HARNESS ASSEMBLY (REAR EVAPORATOR TEMPERATURE SENSOR) |
| *3 | BLOWER MOTOR CONTROL | *4 | REAR EVAPORATOR SUB-ASSEMBLY |
| *5 | REAR HEATER RADIATOR UNIT SUB-ASSEMBLY | *6 | REAR MODE DAMPER SERVO SUB-ASSEMBLY |
| *7 | REAR COOLING UNIT EXPANSION VALVE | *8 | REAR AIR MIX DAMPER SERVO SUB-ASSEMBLY |
