VEHICLE STABILITY CONTROL SYSTEM PARTS LOCATION

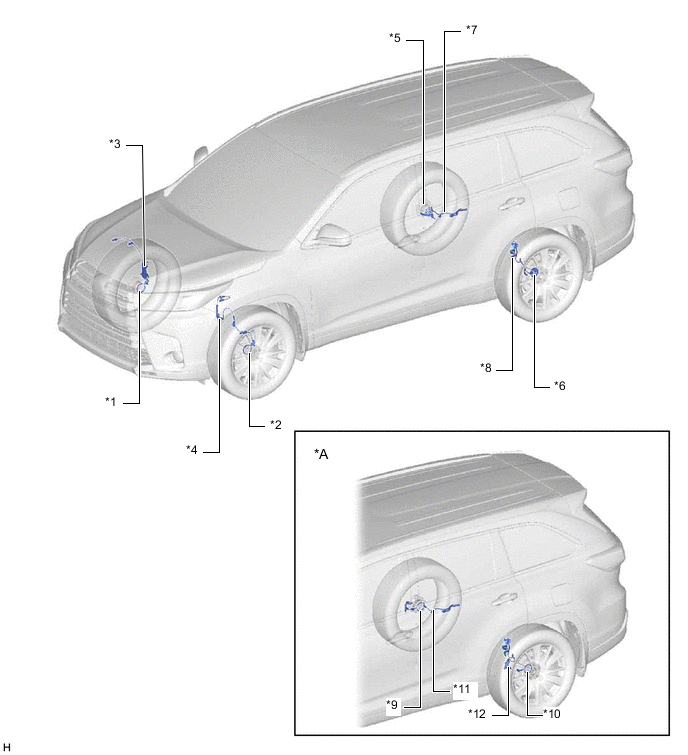

ILLUSTRATION
| *A | for AWD | - | - |
| *1 | FRONT DRIVE SHAFT ASSEMBLY RH - FRONT SPEED SENSOR ROTOR RH |
*2 | FRONT DRIVE SHAFT ASSEMBLY LH - FRONT SPEED SENSOR ROTOR LH |
| *3 | FRONT SPEED SENSOR RH | *4 | FRONT SPEED SENSOR LH |
| *5 | REAR AXLE HUB AND BEARING ASSEMBLY RH - REAR SPEED SENSOR RH - REAR SPEED SENSOR ROTOR RH |
*6 | REAR AXLE HUB AND BEARING ASSEMBLY LH - REAR SPEED SENSOR LH - REAR SPEED SENSOR ROTOR LH |
| *7 | SKID CONTROL SENSOR WIRE RH | *8 | SKID CONTROL SENSOR WIRE LH |
| *9 | REAR AXLE HUB AND BEARING ASSEMBLY RH - REAR SPEED SENSOR ROTOR RH |
*10 | REAR AXLE HUB AND BEARING ASSEMBLY LH - REAR SPEED SENSOR ROTOR LH |
| *11 | REAR SPEED SENSOR RH | *12 | REAR SPEED SENSOR LH |

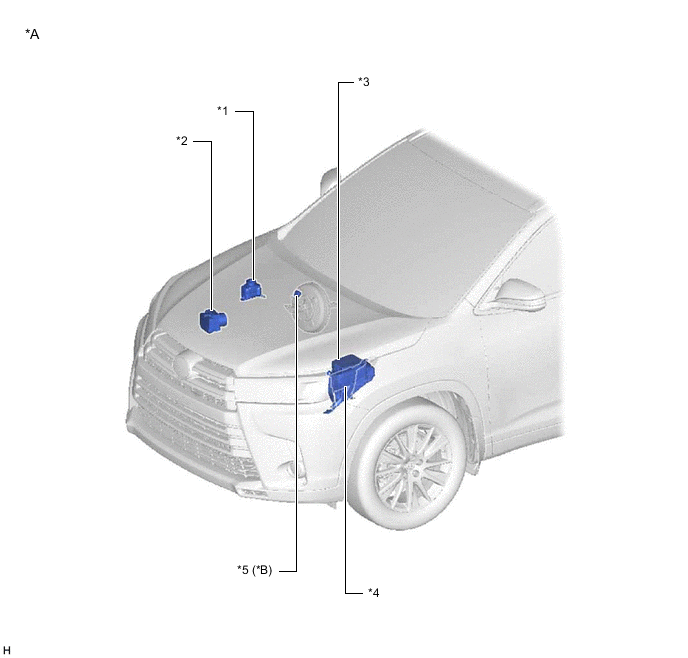

ILLUSTRATION
| *A | for LHD | *B | for 2GR-FKS |
| *1 | BRAKE MASTER CYLINDER RESERVOIR SUB-ASSEMBLY - BRAKE FLUID LEVEL WARNING SWITCH |
*2 | BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU - MASTER CYLINDER PRESSURE SENSOR - PUMP MOTOR |
| *3 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - ABS NO. 1 FUSE - ABS NO. 2 FUSE - MPX-B NO. 1 FUSE - STOP FUSE |
*4 | ECM |
| *5 | VACUUM WARNING SWITCH ASSEMBLY | - | - |

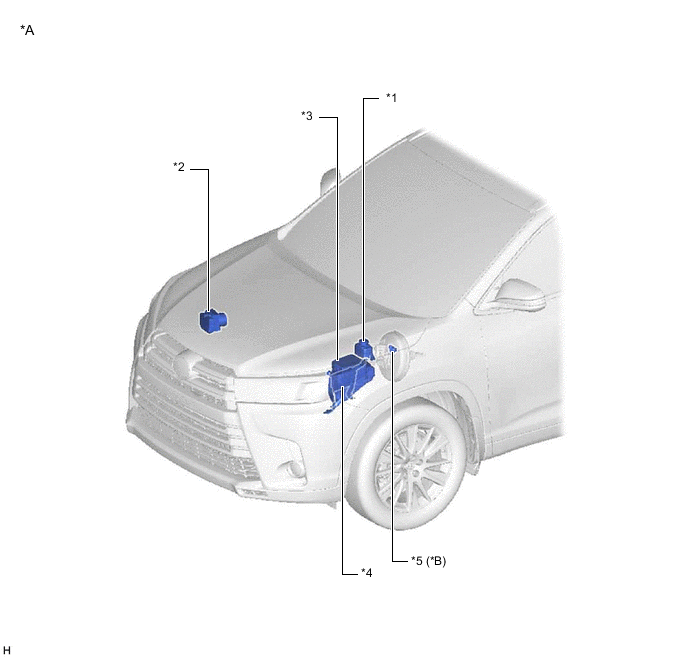

ILLUSTRATION
| *A | for RHD | *B | for 2GR-FKS |
| *1 | BRAKE MASTER CYLINDER RESERVOIR SUB-ASSEMBLY - BRAKE FLUID LEVEL WARNING SWITCH |
*2 | BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU - MASTER CYLINDER PRESSURE SENSOR - PUMP MOTOR |
| *3 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - ABS NO. 1 FUSE - ABS NO. 2 FUSE - MPX-B NO. 1 FUSE - STOP FUSE |
*4 | ECM |
| *5 | VACUUM WARNING SWITCH ASSEMBLY | - | - |

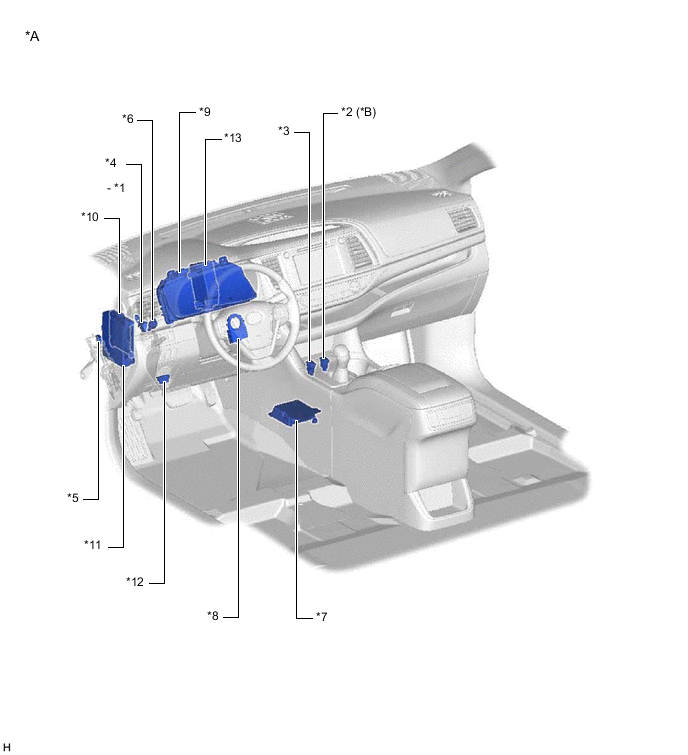

ILLUSTRATION
| *A | for LHD | *B | for AWD |
| *1 | BRAKE PEDAL LOAD SENSING SWITCH | *2 | DOWNHILL ASSIST CONTROL SWITCH |
| *3 | VSC OFF SWITCH | *4 | BRAKE PEDAL SUPPORT ASSEMBLY |
| *5 | PARKING BRAKE SWITCH ASSEMBLY | *6 | STOP LIGHT SWITCH ASSEMBLY - STOP LIGHT CONTROL RELAY |
| *7 | AIRBAG SENSOR ASSEMBLY - YAW RATE AND ACCELERATION SENSOR |
*8 | STEERING ANGLE SENSOR |
| *9 | COMBINATION METER ASSEMBLY - ABS WARNING LIGHT - BRAKE WARNING LIGHT - VSC OFF INDICATOR LIGHT - MULTI-INFORMATION DISPLAY (TRC OFF MESSAGE) - SLIP INDICATOR LIGHT - DOWNHILL ASSIST CONTROL INDICATOR LIGHT (for AWD) - METER BUZZER |
*10 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *11 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - IG1 NO. 2 FUSE - IG1 NO. 3 FUSE - A/BAG-IG FUSE |
*12 | DLC3 |
| *13 | POWER STEERING ECU ASSEMBLY | - | - |

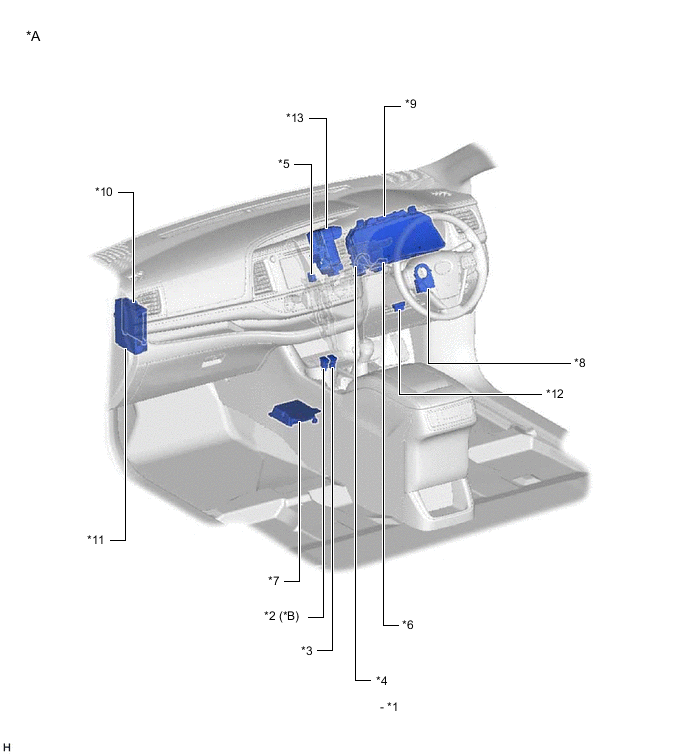

ILLUSTRATION
| *A | for RHD | *B | for AWD |
| *1 | BRAKE PEDAL LOAD SENSING SWITCH | *2 | DOWNHILL ASSIST CONTROL SWITCH |
| *3 | VSC OFF SWITCH | *4 | BRAKE PEDAL SUPPORT ASSEMBLY |
| *5 | PARKING BRAKE SWITCH ASSEMBLY | *6 | STOP LIGHT SWITCH ASSEMBLY - STOP LIGHT CONTROL RELAY |
| *7 | AIRBAG SENSOR ASSEMBLY - YAW RATE AND ACCELERATION SENSOR |
*8 | STEERING ANGLE SENSOR |
| *9 | COMBINATION METER ASSEMBLY - ABS WARNING LIGHT - BRAKE WARNING LIGHT - VSC OFF INDICATOR LIGHT - MULTI-INFORMATION DISPLAY (TRC OFF MESSAGE) - SLIP INDICATOR LIGHT - DOWNHILL ASSIST CONTROL INDICATOR LIGHT (for AWD) - METER BUZZER |
*10 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *11 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - IG1 NO. 2 FUSE - IG1 NO. 3 FUSE - A/BAG-IG FUSE |
*12 | DLC3 |
| *13 | POWER STEERING ECU ASSEMBLY | - | - |
