DYNAMIC TORQUE CONTROL 4WD/AWD SYSTEM PARTS LOCATION

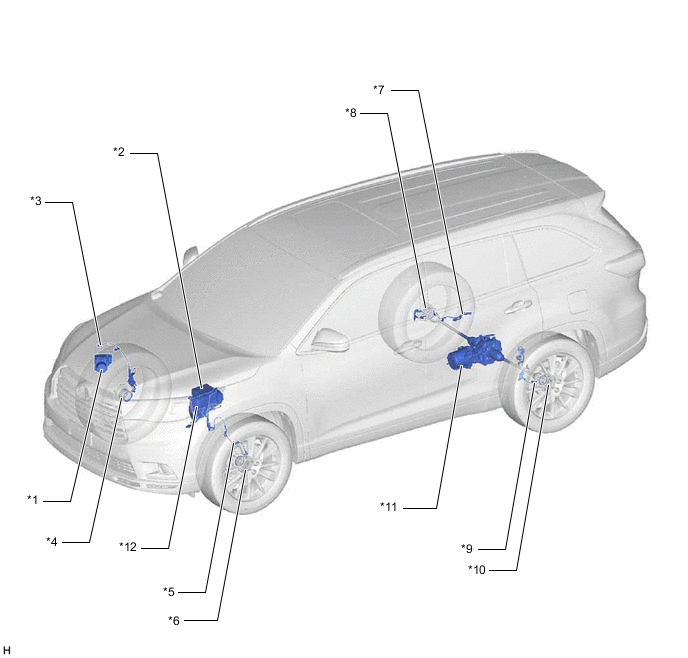

ILLUSTRATION
| *1 | SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) | *2 | ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY NO. 1 - MPX-B NO. 1 FUSE |
| *3 | FRONT SPEED SENSOR RH | *4 | FRONT DRIVE SHAFT ASSEMBLY RH - SPEED SENSOR ROTOR |
| *5 | FRONT SPEED SENSOR LH | *6 | FRONT DRIVE SHAFT ASSEMBLY LH - SPEED SENSOR ROTOR |
| *7 | REAR SPEED SENSOR RH | *8 | REAR AXLE HUB AND BEARING ASSEMBLY RH - SPEED SENSOR ROTOR |
| *9 | REAR SPEED SENSOR LH | *10 | REAR AXLE HUB AND BEARING ASSEMBLY LH - SPEED SENSOR ROTOR |
| *11 | ELECTRO MAGNETIC CONTROL COUPLING SUB-ASSEMBLY - 4WD LINEAR SOLENOID |
*12 | ECM |
ILLUSTRATION
| *1 | AWD LOCK SWITCH (DIFFERENTIAL LOCK SWITCH) | *2 | STEERING SENSOR |
| *3 | COMBINATION METER ASSEMBLY - AWD WARNING (MULTI-INFORMATION DISPLAY) - AWD LOCK MODE INDICATOR LIGHT |
*4 | 4WD ECU ASSEMBLY |
| *5 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - IG1 NO. 2 FUSE - IG1 NO. 3 FUSE |
*6 | ACCELERATION SENSOR (AIRBAG SENSOR ASSEMBLY) |
| *7 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | - | - |
