IDENTIFICATION INFORMATION VEHICLE IDENTIFICATION AND SERIAL NUMBERS


  1. VEHICLE IDENTIFICATION NUMBER

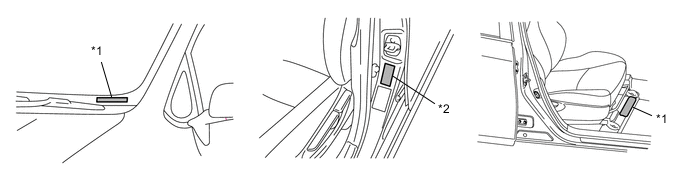

    1. The vehicle identification number is stamped on the vehicle body and on the name label as shown in the illustration.

      A002824C04
      *1 Vehicle Identification Number *2 Name Label

  2. ENGINE SERIAL NUMBER AND TRANSAXLE SERIAL NUMBER

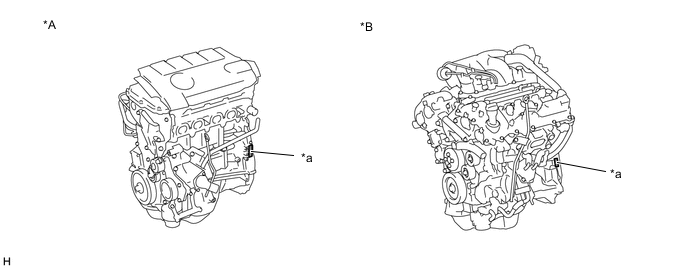

    1. The engine serial number is stamped on the cylinder block of the engine as shown in the illustration.

      A0028QKC01
      *A 1AR-FE *B 2GR-FKS
      *a Engine Serial Number - -

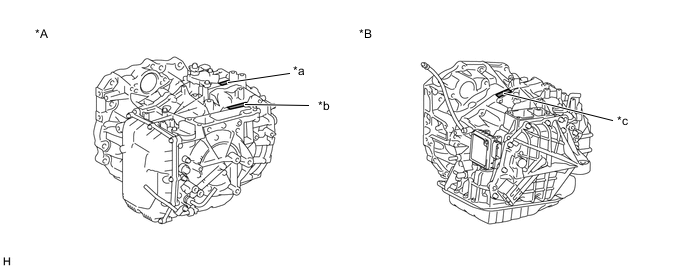

    2. The transaxle serial number is stamped on the case as shown in the illustration.

      Tech Tips


      • TMC made UA80E and UA80F transaxles will not have anything stamped at position *b shown in the illustration.

      • AISIN made UA80E and UA80F transaxles will have a number stamped at positions *a and *b shown in the illustration, but the transaxle serial number will only be stamped on the case at position *b.

      A0029G8C01
      *A UA80E, UA80F *B U760E
      *a for TMC Made Transaxle Serial Number *b for AISIN Made Transaxle Serial Number
      *c Transaxle Serial Number - -
