REAR LIGHT ASSEMBLY REASSEMBLY

PROCEDURE

1. INSTALL REAR LIGHT GASKET




   1.

      Type A:




      1. Install 2 new rear light gaskets.

   2.

      Type B:




      1. Install 4 new rear light gaskets.

2. INSTALL REAR LIGHT SOCKET AND WIRE




   1.

      Connect the connector to install the rear light socket and wire.

3. INSTALL REAR LIGHT SOCKET AND WIRE (w/ Rear Fog Light)




   1. for Driver Side:




      1.

         Engage the clamp to install the rear light socket and wire.

      2. Connect the 2 connectors.

4. INSTALL REAR LIGHT GASKET




   1.

      Type A:




      1. Install a new rear light gasket.

   2.

      Type B:




      1. Install a new rear light gasket.

5. INSTALL BACK-UP LIGHT BULB




   1. Type A:




      1. Install the back-up light bulb to the rear light socket and wire.

      2.

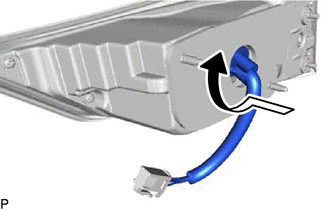

         Turn the rear light socket and wire with the back-up light bulb as shown in the illustration to connect them as a unit.

   2. Type B:




      1. Install the back-up light bulb to the rear light socket and wire.

      2.

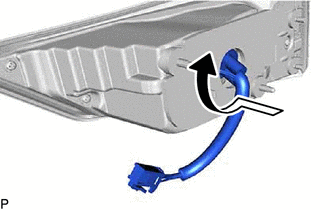

         Turn the rear light socket and wire with the back-up light bulb as shown in the illustration to connect them as a unit.
