REAR COMBINATION LIGHT ASSEMBLY REMOVAL

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedure for the RH and LH sides.

  • The procedure described below is for the LH side.

PROCEDURE


  1. REMOVE REAR LIGHT COVER


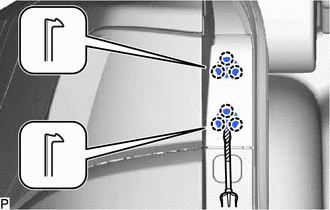

    1. A011MKQC02
      B003YLR Protective Tape

      Using a screwdriver with its tip wrapped with protective tape, disengage the 6 claws to remove the 2 rear light covers.

  2. REMOVE REAR COMBINATION LIGHT ASSEMBLY

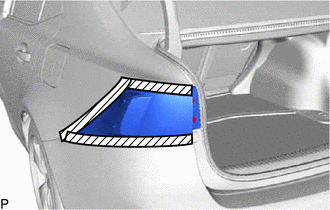

    1. A011Q9TC01
      B003YLR Protective Tape

      Apply protective tape around the rear combination light assembly as shown in the illustration.

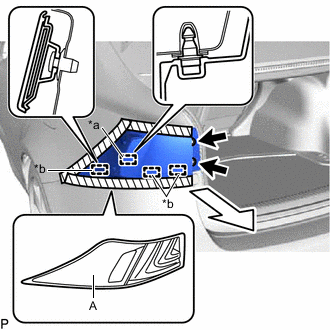

    2. A011Q6SC02
      *a Pin
      *b Guide

      Remove the 2 screws.

    3. Push the rear combination light assembly toward the rear of the vehicle to disengage the pin.

      Note

      To prevent the rear combination light assembly from springing out and falling when it is disengaged, place your hand on the rear combination light assembly and press down gently.

      Tech Tips

      Pushing on the portion A in the illustration toward the rear of the vehicle will make disengagement of the pin easier.

    4. Disengage the 3 guides to disconnect the rear combination light assembly as shown in the illustration.

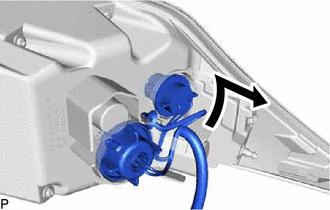

    5. A011QD8

      Turn the rear combination light socket and wire sub-assembly with the rear turn signal light bulb as shown in the illustration to disconnect them as a unit.

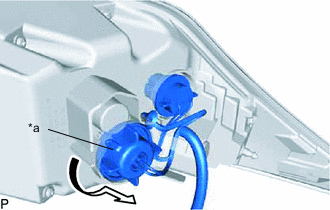

    6. A011Q8EC02
      *a Cap

      Turn the cap as shown in the illustration to disconnect it.

    7. Disconnect the connector to remove the rear combination light assembly.

  3. REMOVE REAR TURN SIGNAL LIGHT BULB


    1. Remove the rear turn signal light bulb from the rear combination light socket and wire sub-assembly.

  4. REMOVE REAR BUMPER ASSEMBLY

    Click here

  5. REMOVE REAR BUMPER UPPER RETAINER

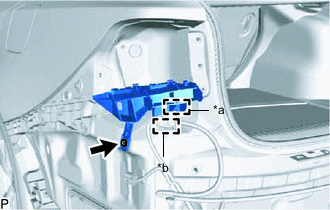

    1. A011MD1C02
      *a Guide
      *b Clamp

      Disengage the clamp.

    2. Remove the screw.

    3. Disengage the guide to remove the rear bumper upper retainer.

  6. REMOVE BATTERY SERVICE HOLE COVER LH (for LH Side)

    Click here

  7. REMOVE LUGGAGE COMPARTMENT FLOOR MAT (for RH Side)

    Click here

  8. REMOVE LUGGAGE COMPARTMENT TRIM BOX (for RH Side)

    Click here

  9. REMOVE REAR LUGGAGE COMPARTMENT TRIM COVER (for RH Side)

    Click here

  10. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER (for RH Side)

    for Fixed Seat Type: Click here

    for Fold Down Seat Type: Click here

  11. REMOVE REAR SEAT ASSEMBLY (for RH Side)

    for Fixed Seat Type: Click here

  12. REMOVE REAR SEAT ASSEMBLY (for RH Side)

    for Fold Down Seat Type: Click here

  13. REMOVE REAR SEAT SUB FLOOR PANEL (for RH Side)

    for Fold Down Seat Type: Click here

  14. REMOVE NO. 1 ROOM PARTITION COVER (for RH Side)

    for Fold Down Seat Type: Click here

  15. REMOVE LUGGAGE COMPARTMENT TRIM COVER RH (for RH Side)

    Click here

  16. REMOVE REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY


    1. for LH Side:

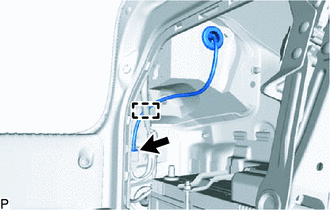

      1. A011P7Y

        Disengage the clamp.

    2. Disconnect the connector.

    3. Disengage the grommet to remove the rear combination light socket and wire sub-assembly.
