REAR COMBINATION LIGHT ASSEMBLY COMPONENTS
ILLUSTRATION
| *A | for LH Side | - | - |
| *1 | BATTERY SERVICE HOLE COVER LH | - | - |
ILLUSTRATION
| *A | for RH Side | *B | for Fixed Seat Type |
| *C | for Fold Down Seat Type | - | - |
| *1 | FRONT LUGGAGE COMPARTMENT TRIM COVER | *2 | LUGGAGE COMPARTMENT FLOOR MAT |
| *3 | LUGGAGE COMPARTMENT TRIM BOX | *4 | LUGGAGE COMPARTMENT TRIM COVER RH |
| *5 | NO. 1 ROOM PARTITION COVER | *6 | REAR LUGGAGE COMPARTMENT TRIM COVER |
| *7 | REAR SEAT SUB FLOOR PANEL | *8 | ROPE HOOK ASSEMBLY |
| *9 | CLIP | - | - |
| ● | Non-reusable part | - | - |

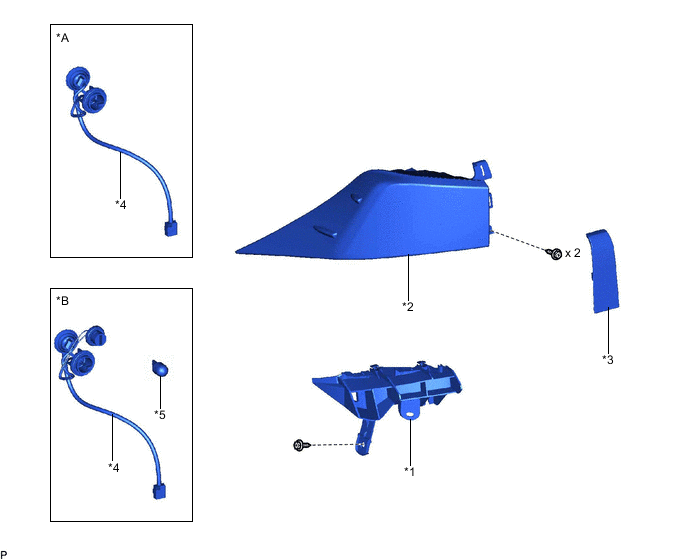

ILLUSTRATION
| *A | for LED Type Turn Signal Light | *B | for Bulb Type Turn Signal Light |
| *1 | REAR BUMPER UPPER RETAINER | *2 | REAR COMBINATION LIGHT ASSEMBLY |
| *3 | REAR COMBINATION LIGHT COVER | *4 | REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY |
| *5 | REAR TURN SIGNAL LIGHT BULB | - | - |
